Home >> Volkswagen >> 2002 >> Passat Wagon (3B6) L4-1.8L Turbo (AWM) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Testing - Up to November 2001 >> Measuring Value Blocks (Function 08) >> Evaluating Measured Value Blocks >> Evaluating Display Group 008

Evaluating Display Group 008

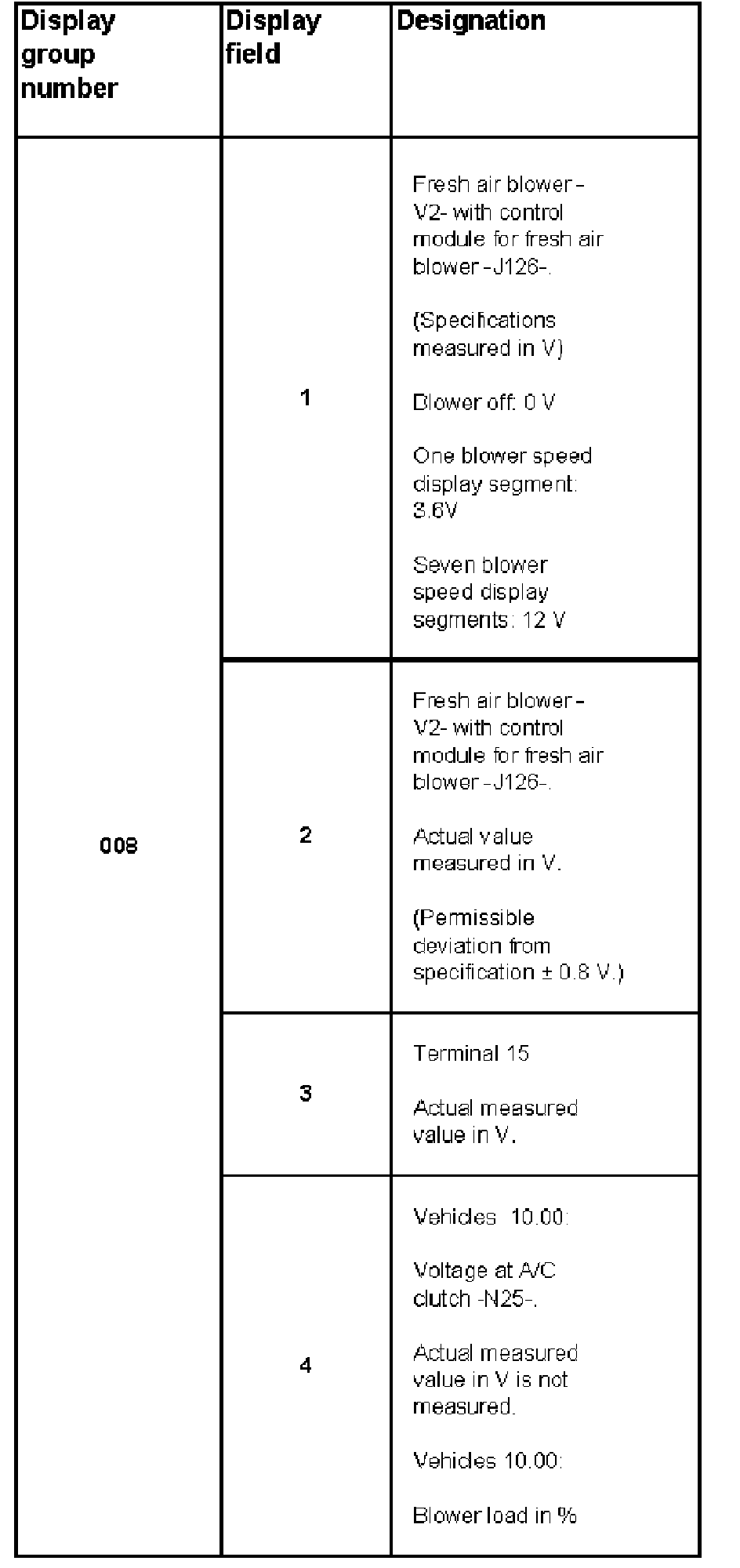

Display Group 008:
