Passat Wagon (3B6) L4-1.8L Turbo (AWM)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Scan Tool Testing - Up to November 2001
>>
Measuring Value Blocks (Function 08)
>>
Evaluating Measured Value Blocks
>>
Evaluating Display Group 004 - 005
Evaluating Display Group 004 - 005

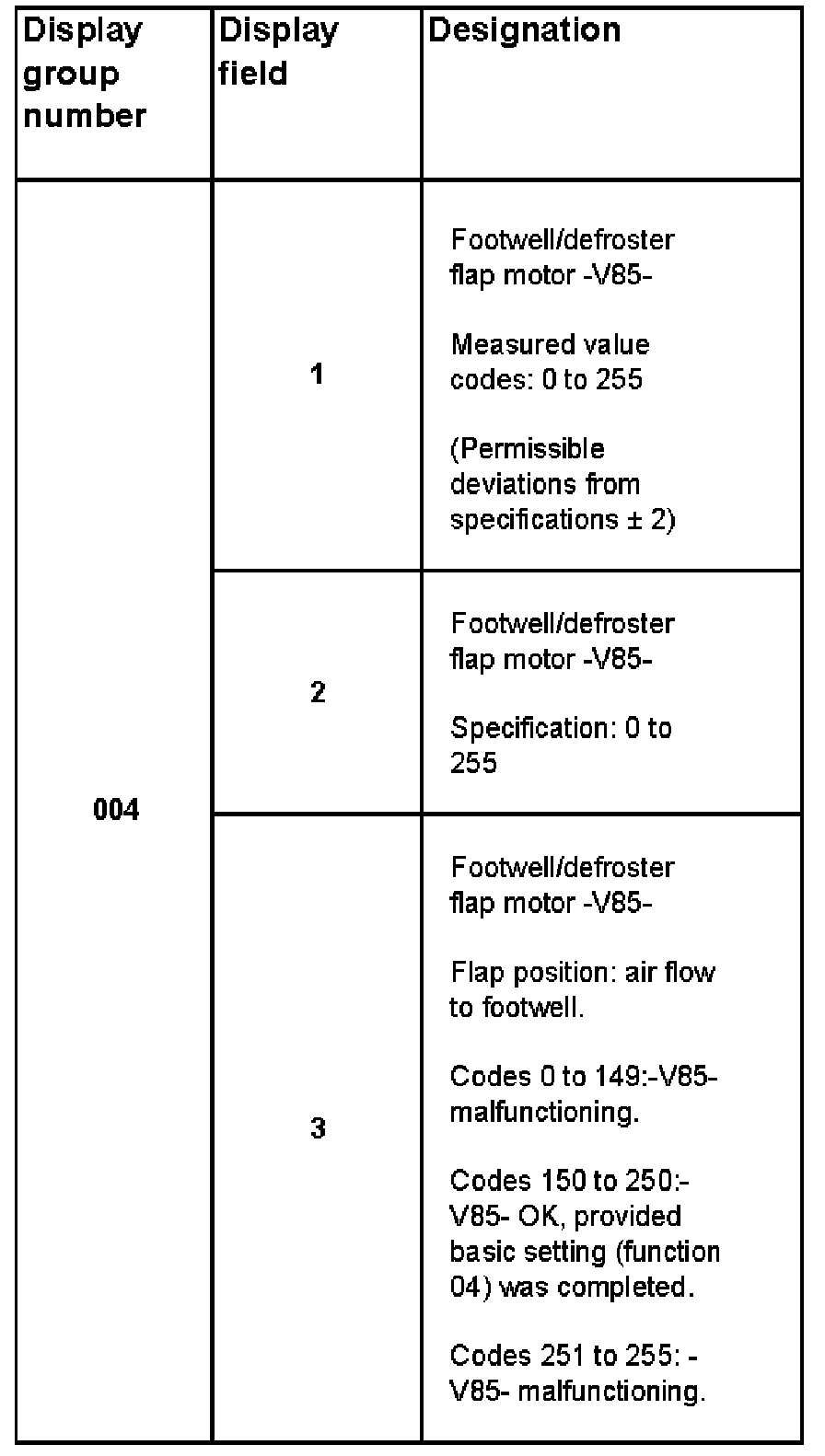

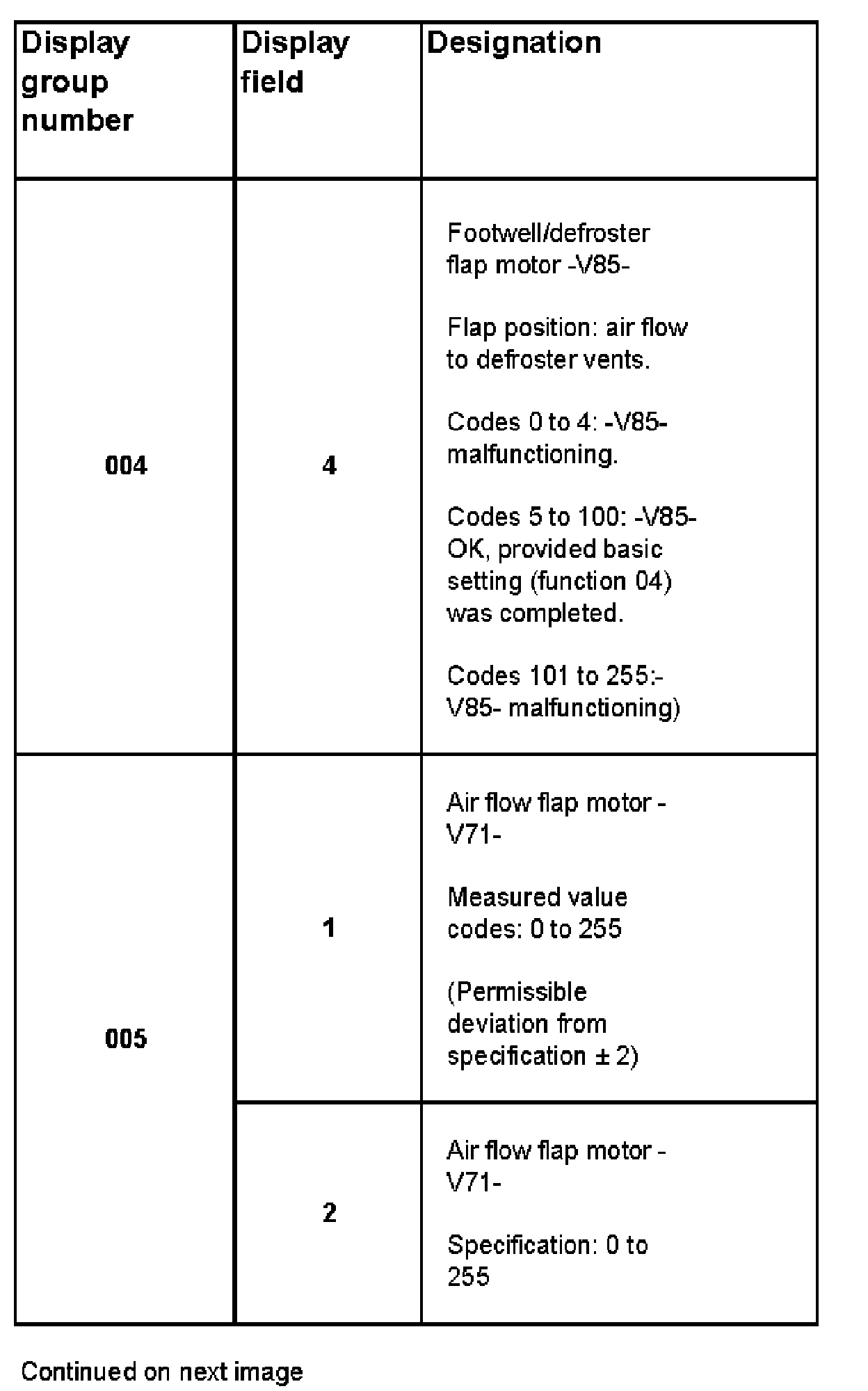

Display Group 004:

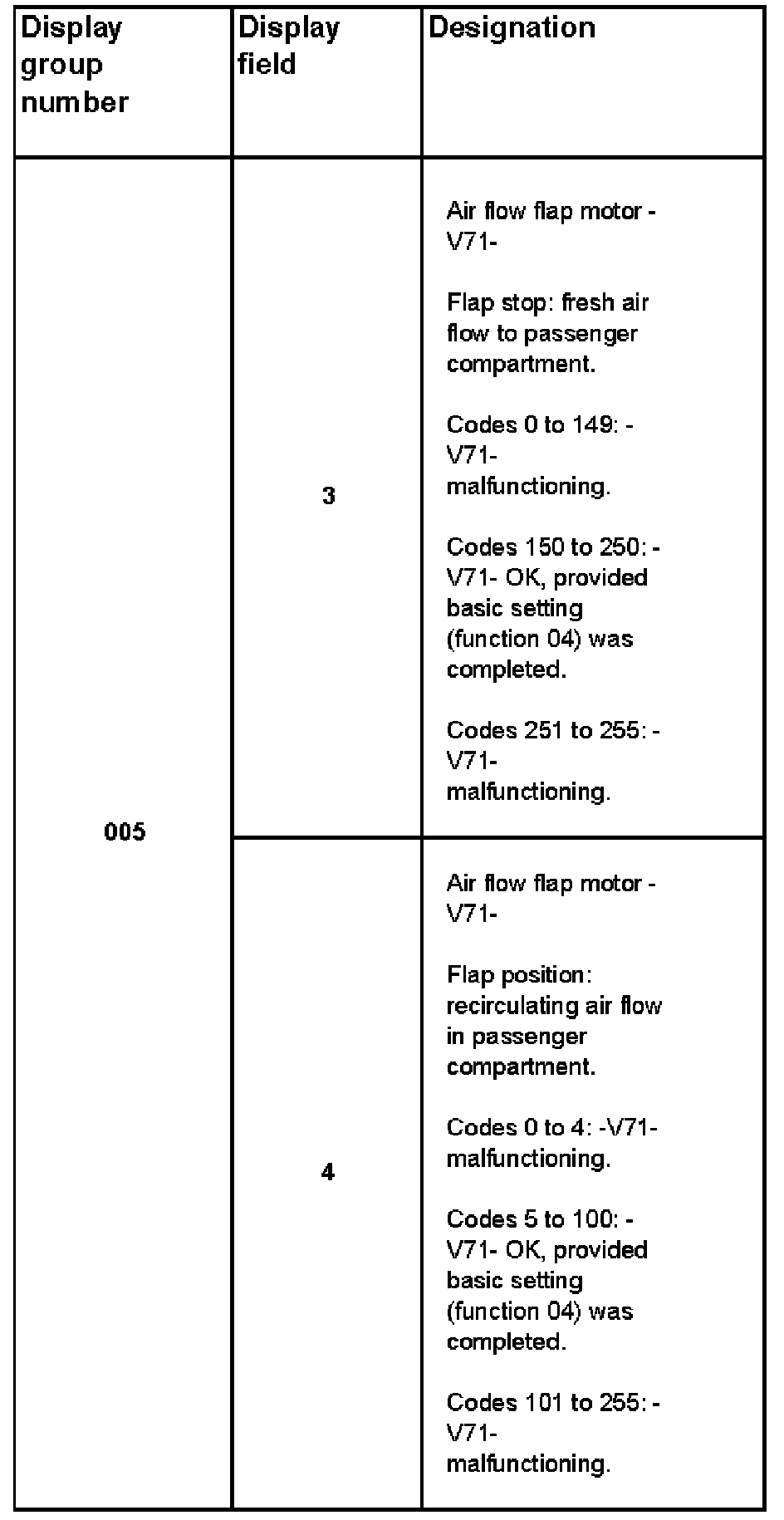

Display Group 005:
