Evaporator Drain Tube: Service and Repair

Evaporator Water Drain Guide, Removing And Installing

Removing
- Remove instrument panel
- Release instrument panel cross member from bulkhead.

For the next step, an assistant must lift and hold the heater/evaporator unit.

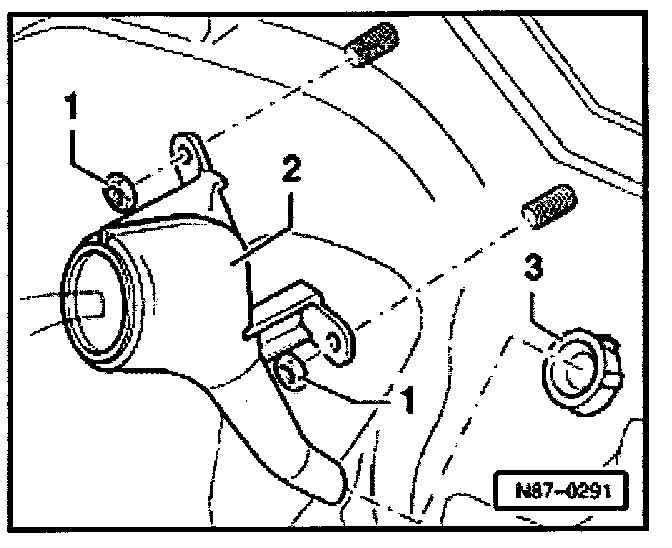

- Remove nuts -1- (2.5 Nm / 23 in lb) and remove guide -2- from bulkhead.

Installing
When installing, ensure water drain valve -3- sealing lip completely encloses the guide -2-. If necessary, lubricate to aid installation.
Water drain valve, checking.
