Power Outlet (12V)

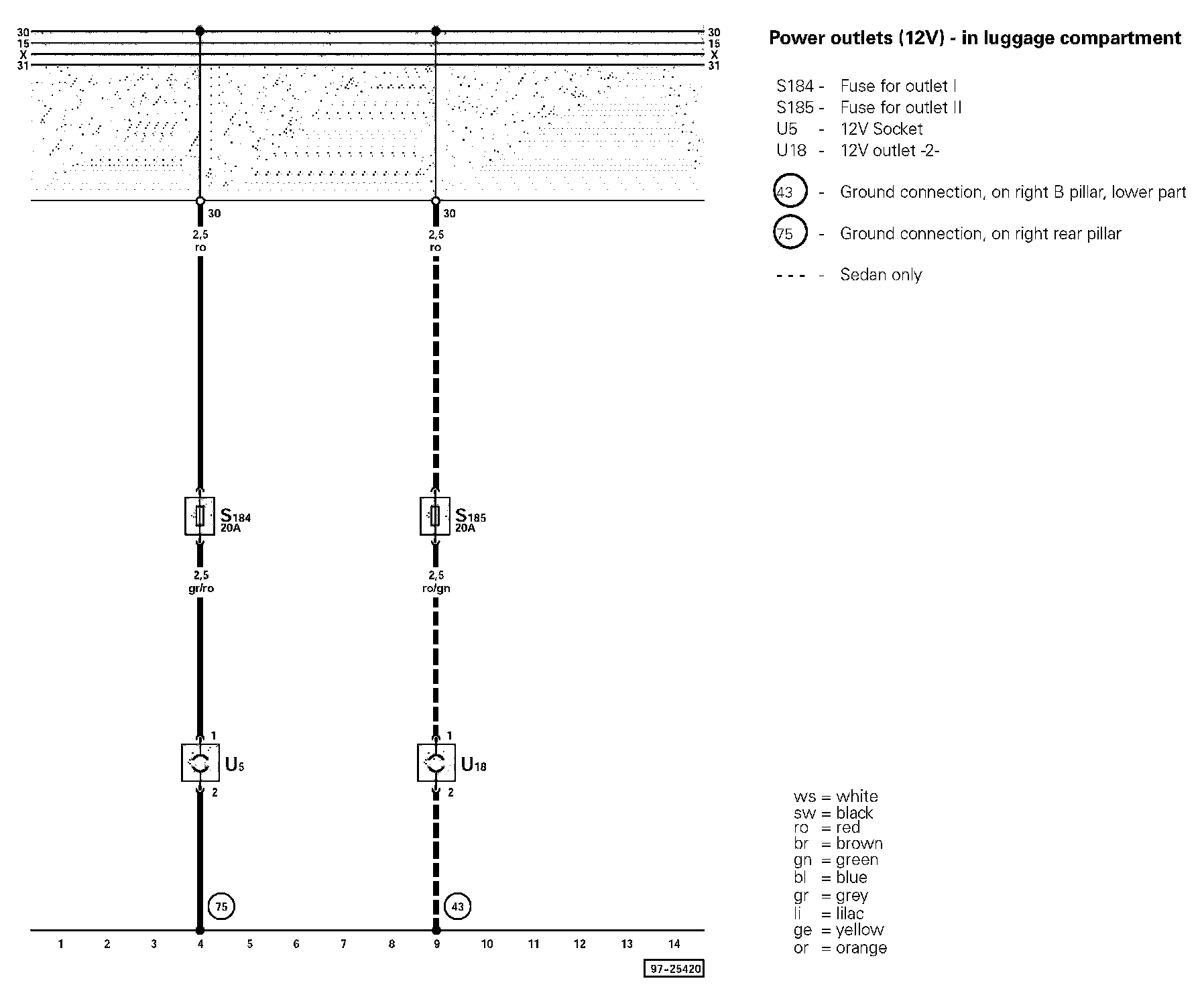

Power Outlet (12V), from September 1997


IMPORTANT NOTE

This manufacturer uses "Track" style wiring diagrams.

For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Track 1-14:
