Home >> Volkswagen >> 2002 >> Passat Wagon (3B6) L4-1.8L Turbo (AWM) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Wiring Diagram Index

Wiring Diagram Index

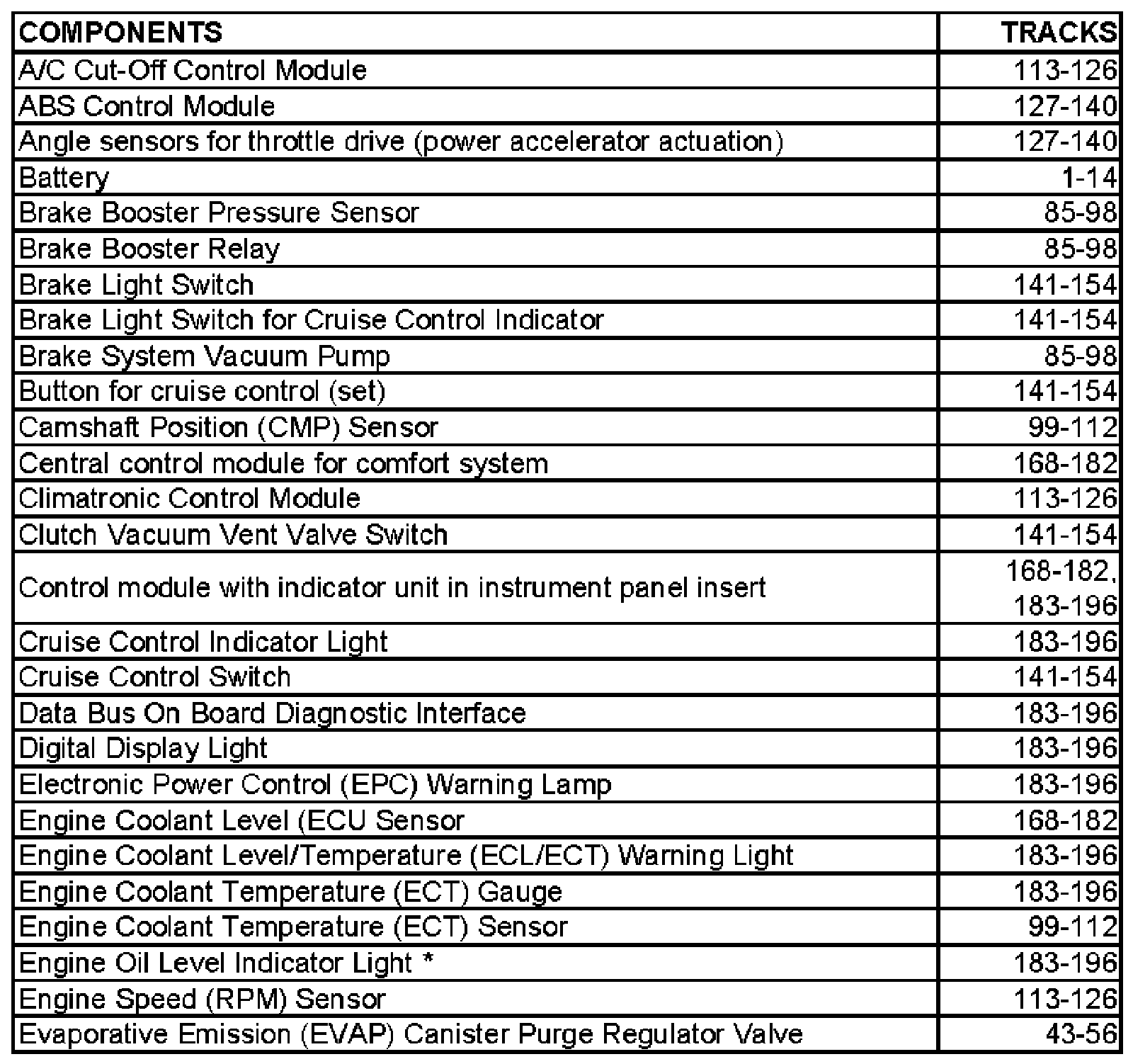

Diagram Index "A/C - Ev":

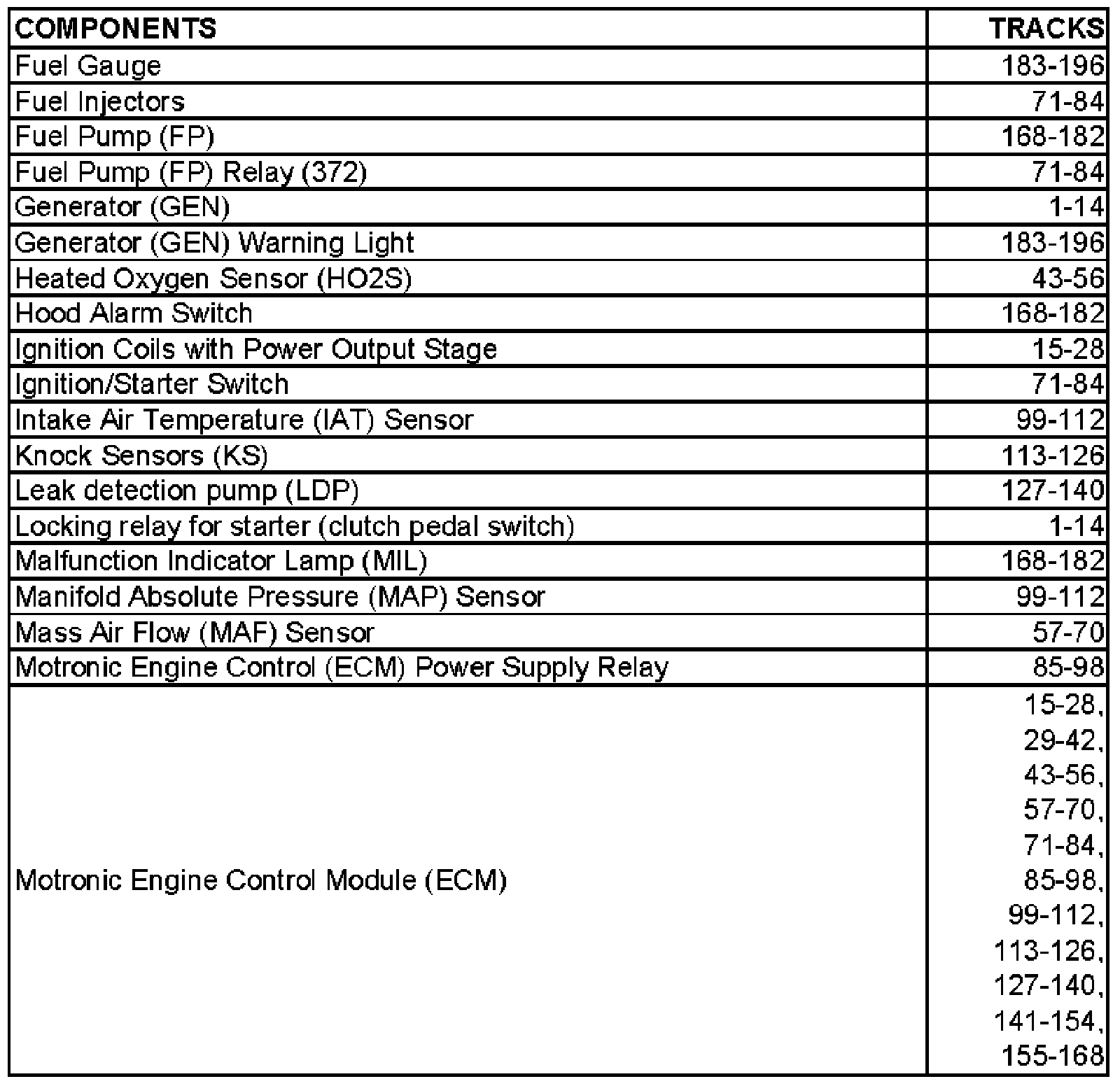

Diagram Index "Fu - Mo":

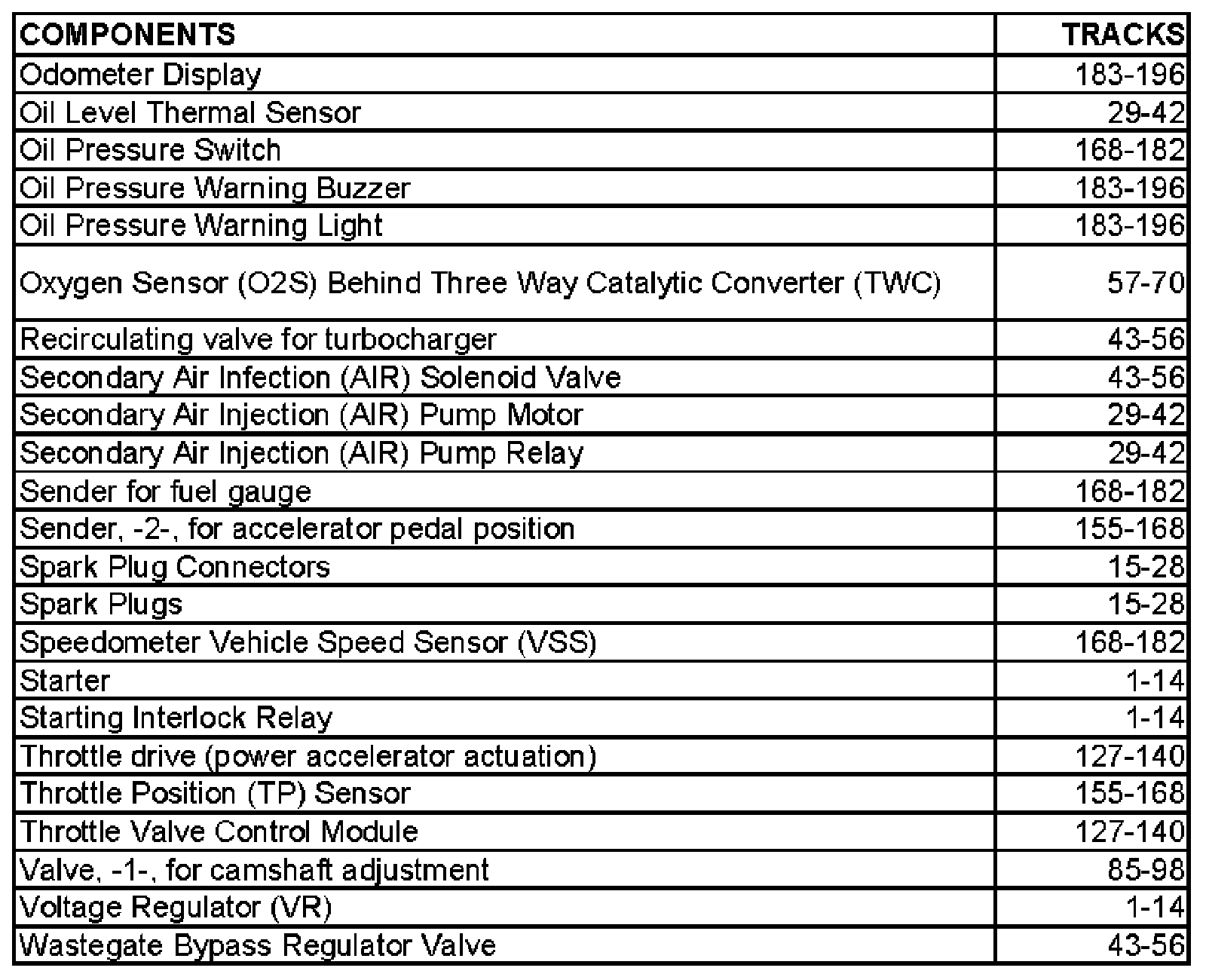

Diagram Index "Od - Wa":
