Speaker: Locations

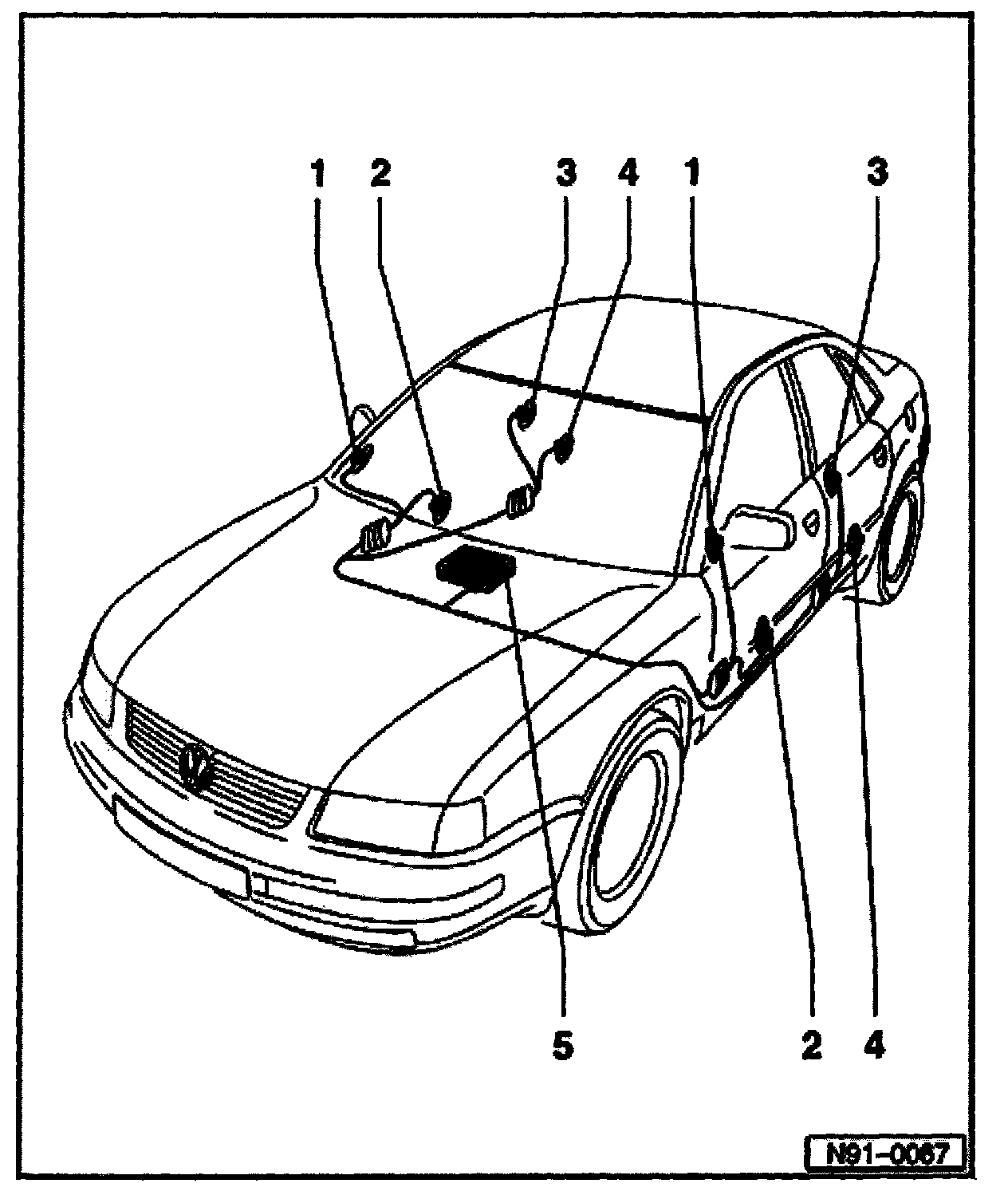

Speaker System, Overview







NOTE:
- Vehicles with radio system "Premium V - Monsoon" are equipped with high power handling speakers specifically designed for the "Monsoon" system.
- When replacing speakers, be aware of applicable radio system when referring to parts catalog.

1 - High- range speaker (domed tweeter) in front doors
- Integrated with window trim
2 - Mid-range/bass speaker in front doors
3 - High-range speaker (domed tweeter) in rear doors
- Integrated with inside door handle trim
4 - Mid-range/bass speaker in rear doors
5 - Radio
- In center of instrument panel
- Removing and installing "Premium III"
- Removing and installing "Premium IV" & "Premium V - Monsoon"
