Antenna Cable: Locations

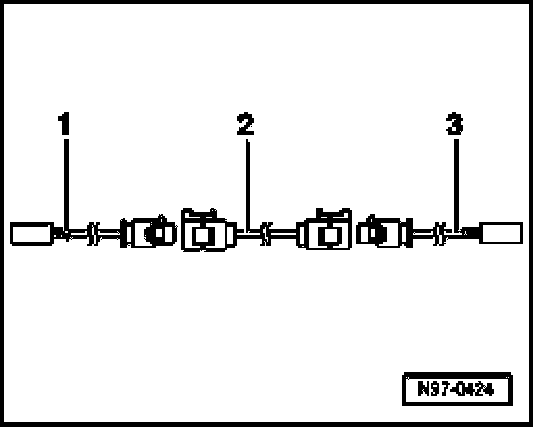

Antenna Cable System, Assembly Overview







For servicing purposes, the antenna cable system consists of the following individual antenna cable sections:
1 Adapter cable to radio - Length approx. 30 cm.
2 Connector cable - Available in various lengths.
3 Adapter cable to antenna - Length approx. 30 cm.
