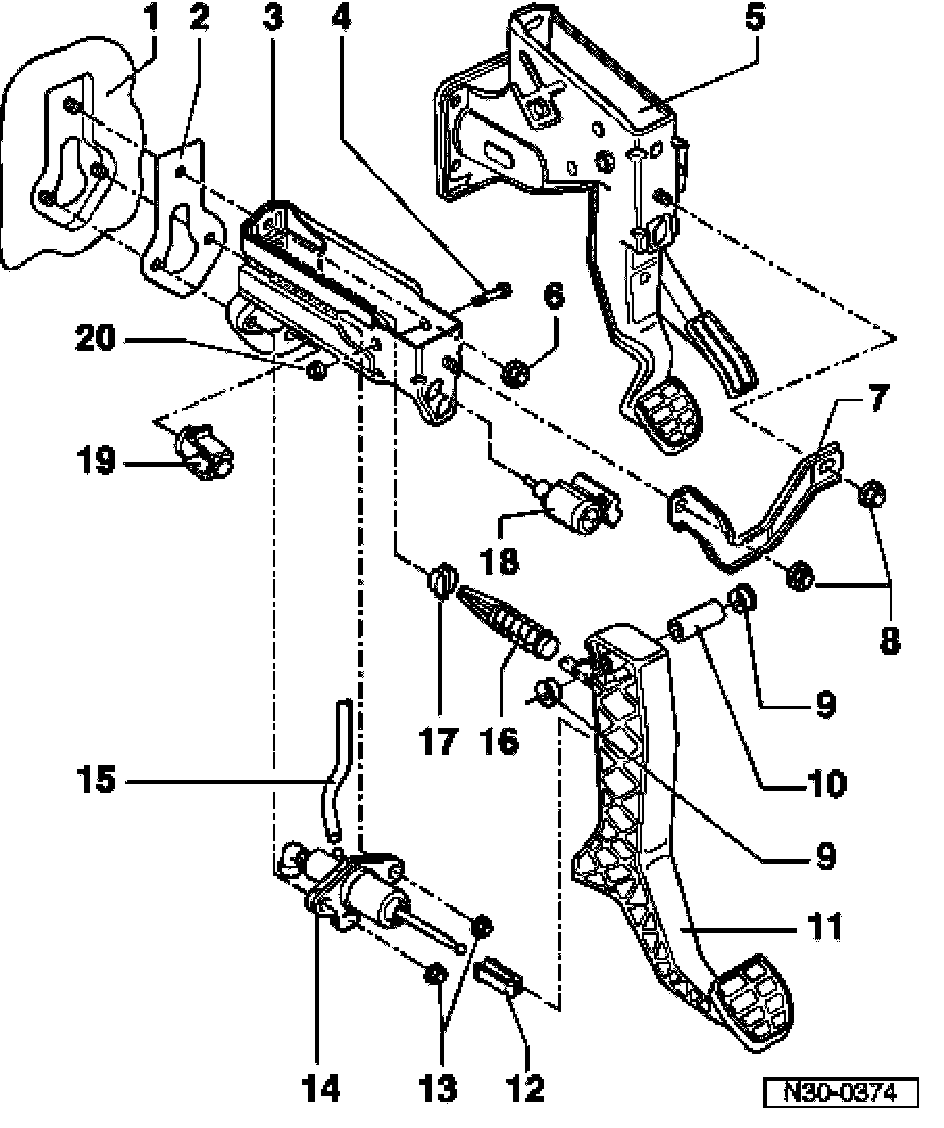

Pedal cluster assembly, overview

Pedal cluster assembly, overview
1- Bulkhead
^ With support and clutch master cylinder housing
2- Gasket
^ Always replace
3- Support
^ For clutch pedal housing
4- Bolt
5- Support
^ For accelerator and brake pedal housing
6- Hex nut, self-locking 25 Nm
^ Always replace
7- Connecting plate
8- Hex nut, self-locking 25 Nm
^ Always replace
9- Mounting bushing
10- Mounting pin
11- Clutch pedal
12- Bearing bracket
13- Hex nut, self-locking 25 Nm
^ Always replace
14- Clutch master cylinder
15- Circulation hose
16- Overcenter spring
17- Overcenter spring seating
^ Install in mounting bracket
^ To replace, remove and install clutch master cylinder
18- Clutch pedal switch -F36-
^ When removing and installing switch, push clutch pedal down as far as possible by hand.
^ Before removing the clutch pedal, remove switch with left turn of 45° and pull out from support through mounting hole.
^ Insert switch in mounting hole and secure with right turn of 45°.
19- Stop flange
^ For clutch pedal
20- Hex nut, self- locking 25 Nm
^ Always replace
