Clutch Pedal, Removing and Installing

Clutch pedal, removing and installing
Special tools and equipment





^ T10005 Pliers

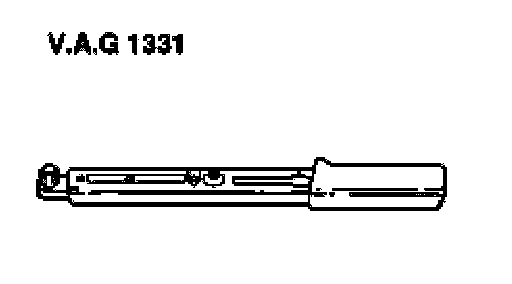

^ VAG1331 Torque wrench

Removing
^ Turn clutch pedal switch 45° to the left and pull out from support.
^ Remove overcenter spring.
^ Separate clutch pedal from clutch master cylinder and push operating rod toward engine compartment onto stop.





^ Remove nut -A-.
^ Pull bolt out until the clutch pedal can be removed.

Installing
Installation is carried out in the reverse sequence, when doing this note the following:

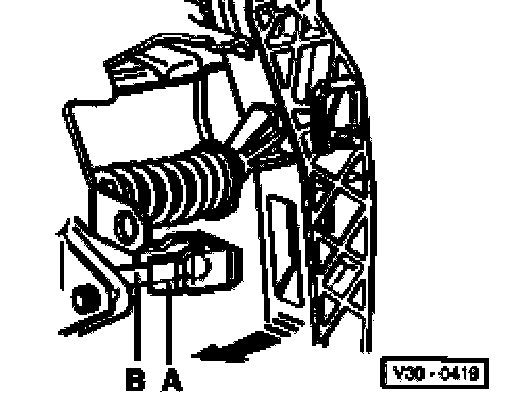

The Bearing bracket -A- must be installed to the clutch master cylinder operating rod -B-.
^ Push clutch pedal in direction of arrow to engage it. Make sure it is well fitted.
^ Install over center spring.
^ Place clutch pedal switch in mounting hole and turn 45° to the right.
