Home >> Volkswagen >> 2002 >> Jetta GLS Wagon (1J6) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector Station D-Pillar, Right

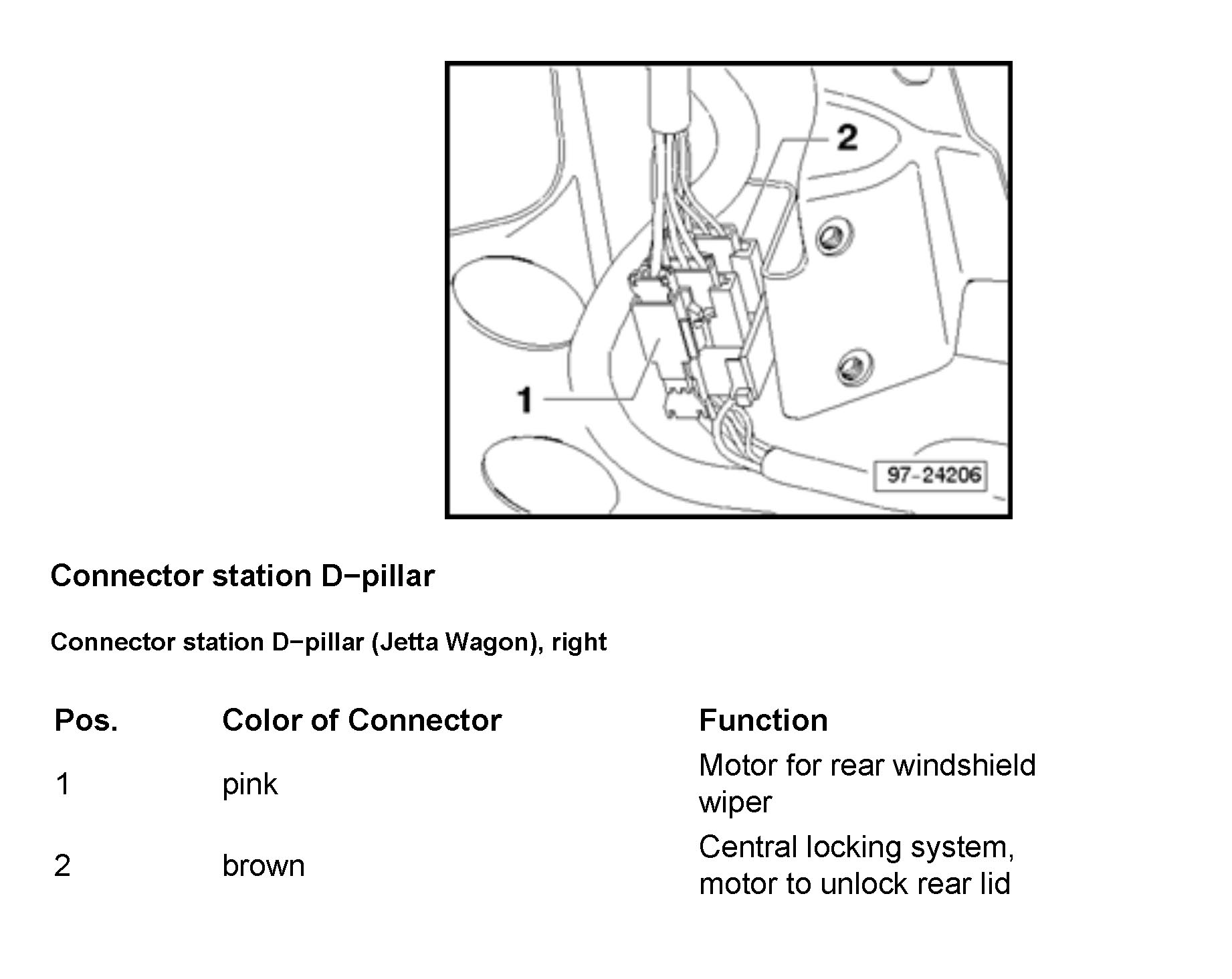

Connector Station D-Pillar, Right












Connector station D-pillar, right (Jetta Wagon)
