High-Mount Brake Light, Removing and Installing



High-mount Brake Light (Jetta Wagon), Removing And Installing

The high-mount brake light is installed in the upper part of the rear window.

Removing

- Switch off all electrical consumers, switch off ignition key and remove ignition key.

- Remove upper and lower rear lid trim.

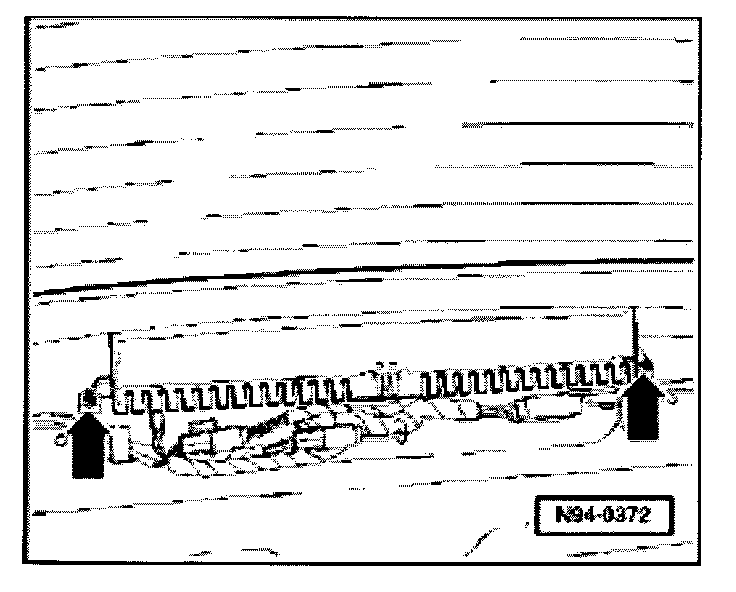

- Remove screws -arrows-.
- Disconnect electrical connector.
- Install in reverse order of removal.
