Sunroof Glass Panel, Removing and Installing (Rockwell)

Sunroof Glass Panel, Removing and Installing

Removing
- Slide headliner to rear.
- Tilt sunroof open.







- Unclip lower trim -2- in forward area, inward to center of vehicle and unhook at rear.
- Unclip upper trim -1- at front and center and unhook at rear.

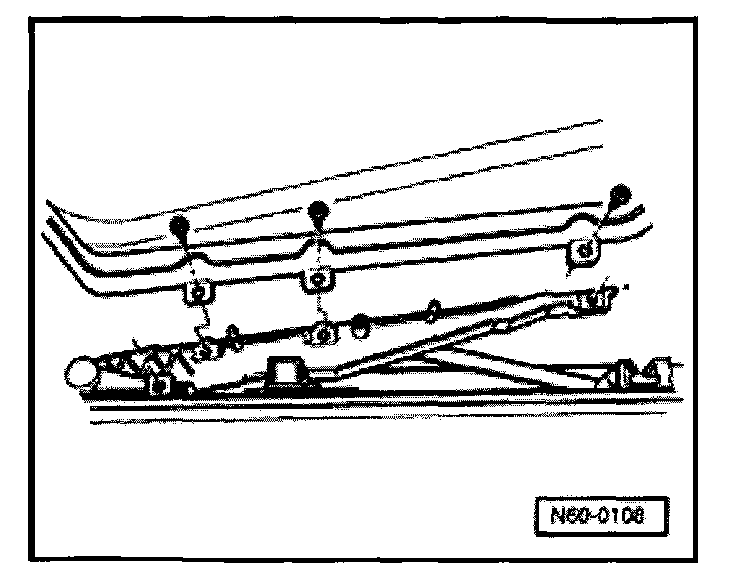

- Remove screws using Torx insert T 25.
Tightening torque: 4.5 Nm (40 in. lb).
- Remove sunroof panel upward.


NOTE: The sunroof must not be moved to the "Open" position when removed. The water channel will not be compressed by the glass panel and can jam inside the roof.


Installing
Panel must be installed in "0 position" (panel closed).

"0" position:







The mark (arrow) on the rear of the guide upper section -1- must, on both sides, lie within the marks -dimension a- on the guide rail gate -2-.

The slotted guide rail -2- must be located in the guide rails (cannot be moved by hand).

If not, adjust parallel movement.

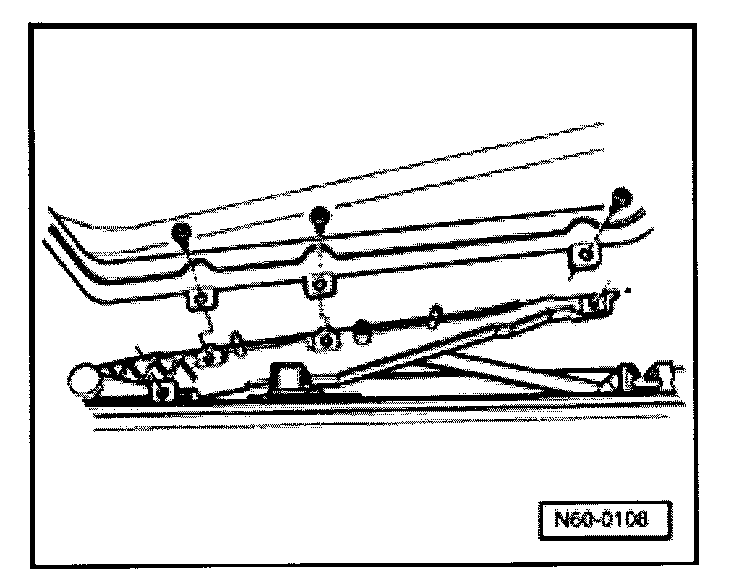

- Place sunroof on from above and install screws (guide rail/panel).
- Lightly tighten securing screws (Torx T 25).


NOTE: After adjusting panel height tighten securing screws to 4.5 Nm (40 in. lb).
