Exhaust Pipe/Muffler Hanger: Testing and Inspection

Double clamp installing position, checking

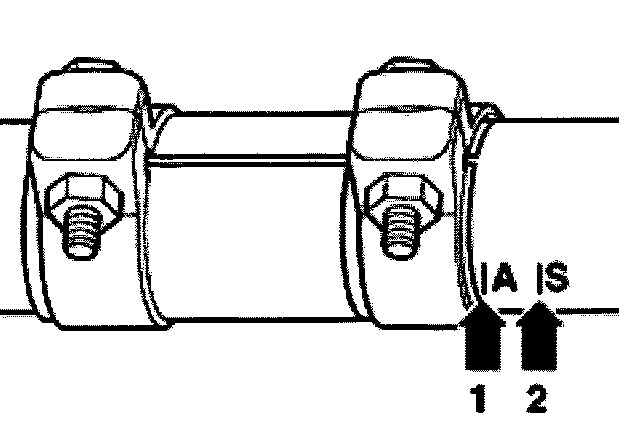

- Position dual clamp with 5 mm distance for mark A (arrow 1).

- Mark A (arrow 1) for vehicles with automatic transmission

- Mark S (arrow 2) for vehicles with manual transmission
