Installed Position of Mount

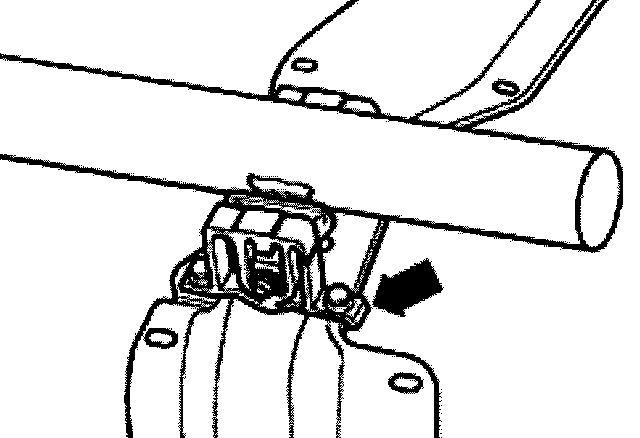

Installed position of mount






- Angled side on foot of mount (arrow) points forward.
