Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

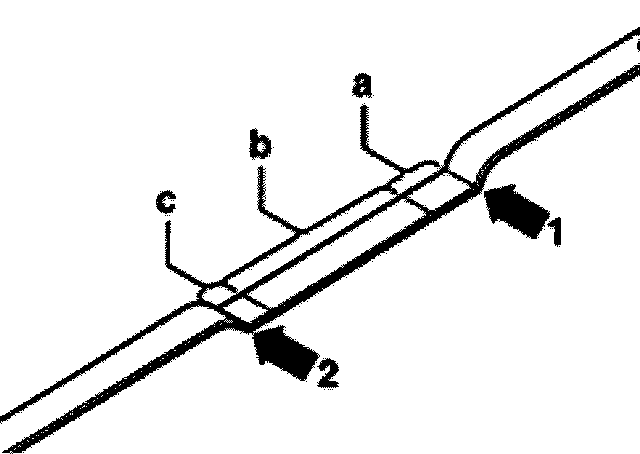

Engine oil dipstick, marking






1. Max. mark

2. Min. mark

a. Area above cross-hatched zone up to Max. mark:
- Do NOT top-up with engine oil!

b. Area within cross-hatched zone:
- CAN be topped-up with engine oil

c. Area from Min. mark up to crosshatched zone:
- FILL with 0.5 liter of engine oil maximum!
