Piston Ring: Testing and Inspection
Piston ring gap, checking
Special tools
- Feeler gauges
- Squarely push down on piston ring from above to approx. 15 mm from lower end of cylinder bore.

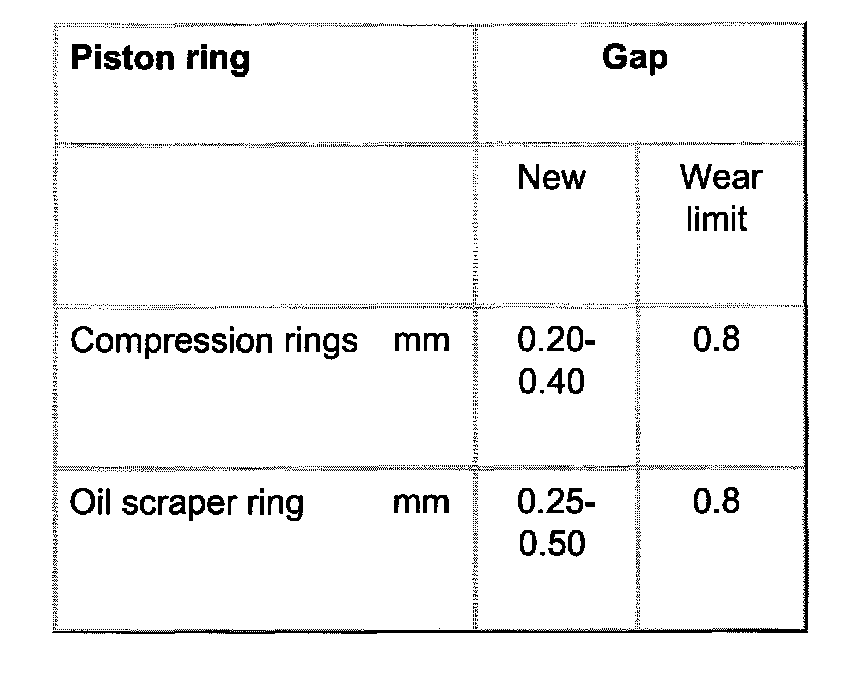

Piston Ring Gap Specifications:

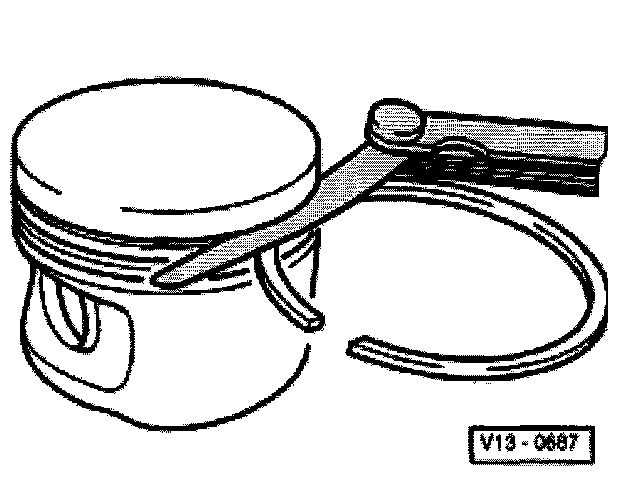

Ring to groove clearance, checking
Special tools
- Feeler gauges
- Clean groove before check.

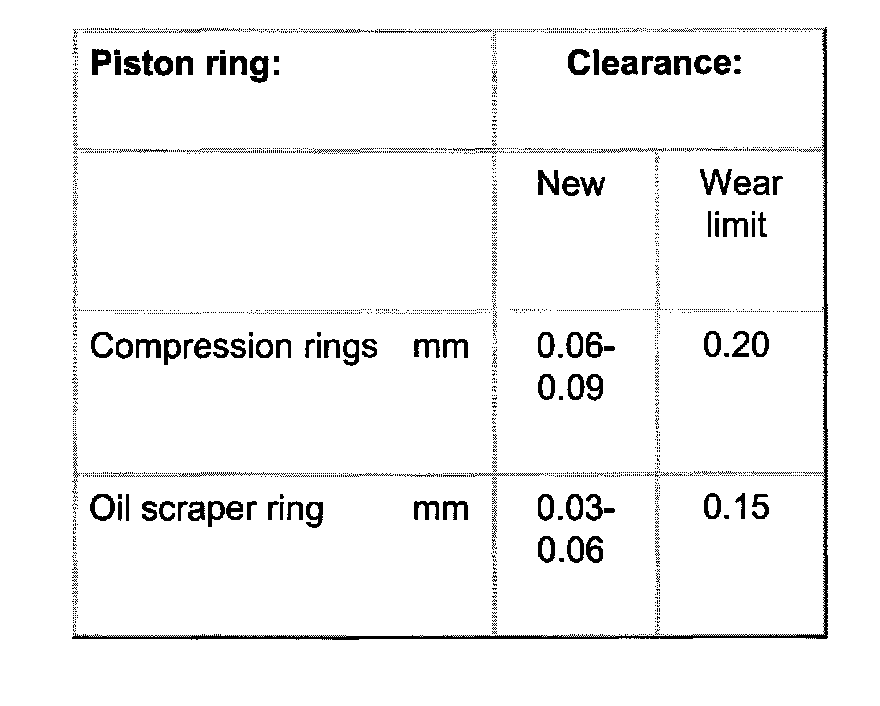

Piston Ring Clearance Specifications:
