Front Seat Belt Inertia Reel and Anchor Rail, Removing and Installing

Front Seat Belt Inertia Reel And Anchor Rail, Removing And Installing







- Remove side trim.

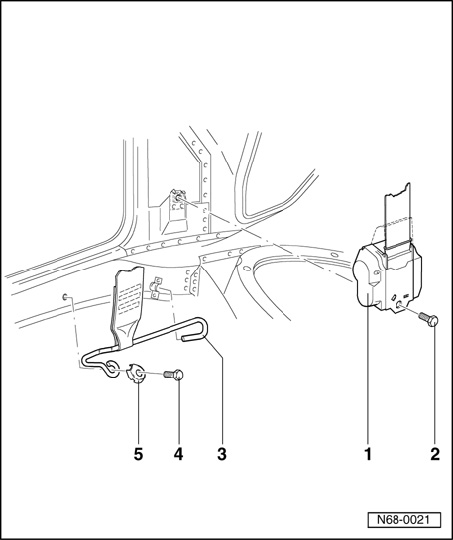

1 - Front seatbelt inertia reel
- Retaining tabs determine position of front seatbelt inertia reel

2 - Bolt
- 40 Nm

3 - Anchor rail
4 - Bolt
- 40 Nm

5 - Eye cap
