Rear Bumper Cover / Fascia: Service and Repair

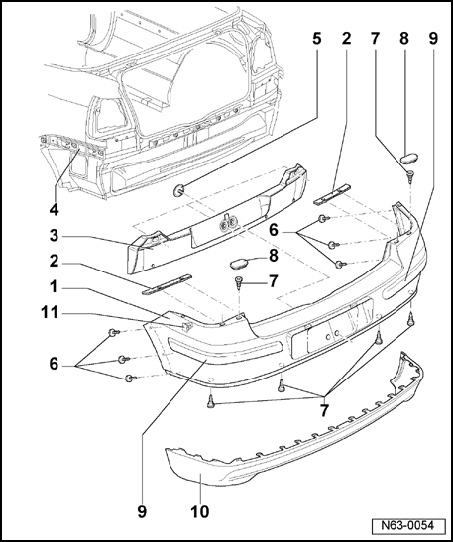

Bumper Cover - Assembly Overview







1 - Cover
- Material - PP/EPDM
- Removing:
- Remove tail light assemblies.
- Remove cover in area of wheel housing and unclip from chassis (see item ).
- Remove bolts . Remove cover from guide pieces (left and right sides) and securing strip .

2 - Securing strip
3 - Impact absorber
4 - Guide piece
- To remove and install, pull out/slide in bumper parallel out of guide pieces (left and right sides)

5 - Clip
- Qty. 4

6 - Bolt
- Qty. 6
- 1.2 Nm

7 - Bolt
- Qty. 8

8 - Buffer plugs
- Qty. 4

9 - Protective molding
10 - Spoiler
- Clipped in cover
- Does not need to be removed when removing cover

11 - Expanding clip
- Qty. 2
