Drive Shaft Ball Bearing and Multi-Function Sender

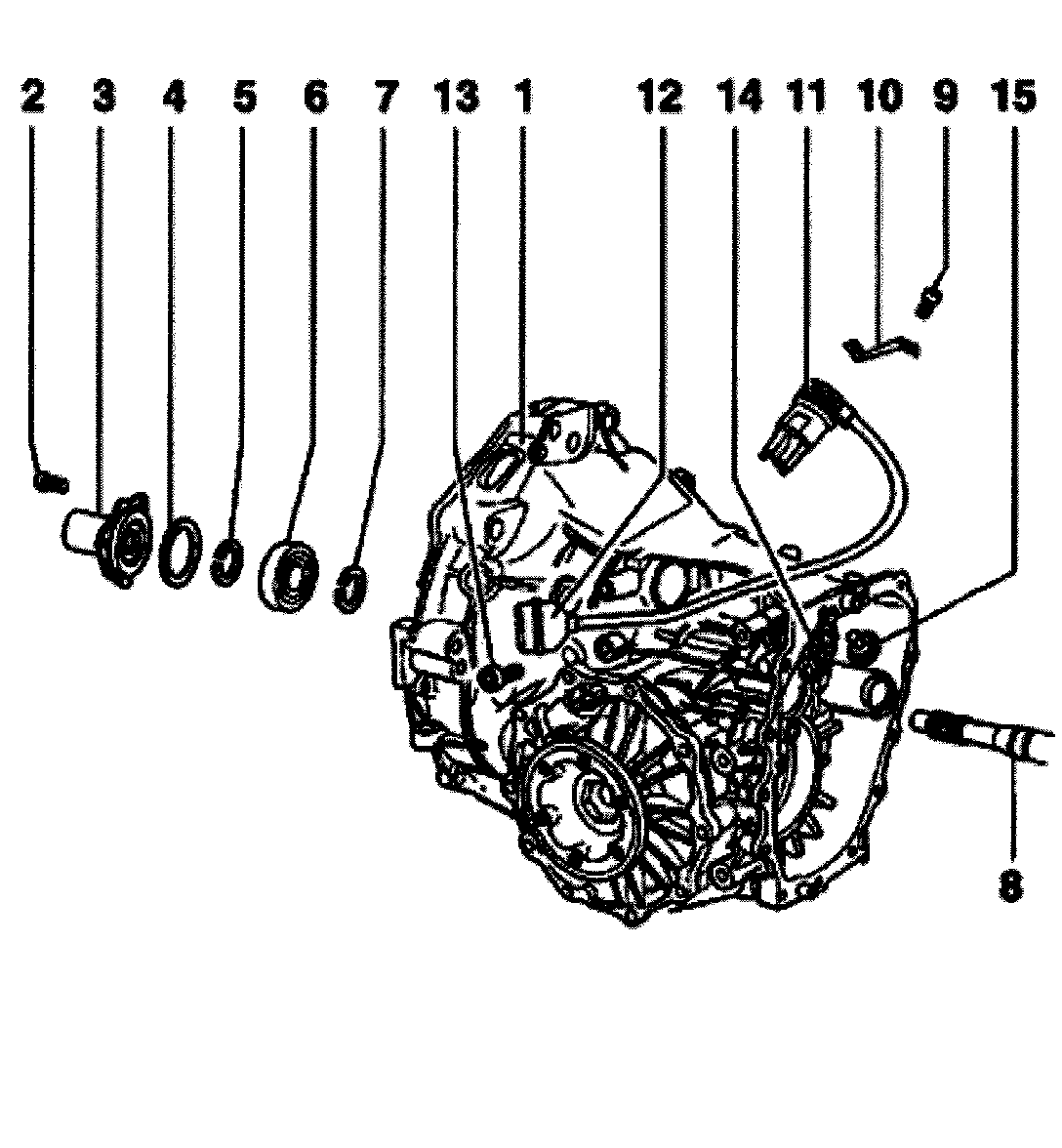

Drive shaft ball bearing and multi-function sender, disassembling and assembling





1. Transmission housing
- Casing manufactured from either aluminum or magnesium
- With differential and flanged shafts
- Removing and installing differential and flanged shafts
- Replacing speedometer sender and drive wheel
- Breather installation position see Fig. 1
- Breather manufactured from different materials for aluminum and magnesium transmissions
- Allocation
2. Torx socket head bolt
- Self-locking
- Always replace
- Black; only for aluminum transmissions
- Bright; for aluminum and magnesium transmissions
- Allocation
- For aluminum transmissions
- 35 Nm
- For magnesium transmissions
- 25 Nm
3. Guide sleeve
^ With O-ring and seal for input shaft
- Guide sleeve made of different materials for aluminum and magnesium transmissions
- Allocation
- Installation position: oil drain hole facing downwards
4. Dished spring
- Smaller diameter (convex side) faces guide sleeve
5. Securing clip
- Determining thickness; adjusting input shaft
6. Ball bearing
- Removing and installing
7. Securing clip
- Determining thickness; adjusting input shaft
8. Input shaft
- Removing and installing
- Disassembling and assembling
- Adjusting
- Servicing input shaft bearings
9. Bolt
- Black; only for aluminum transmissions
- Bright; for aluminum and magnesium transmissions
- Allocation
- For aluminum transmissions
- 25 Nm
- For magnesium transmissions
- 15 Nm
10. Locking plate
- For multifunction sender
- Locking plate made from different material for aluminum and magnesium transmissions
- Allocation
11. Multi-function sender
12. Multi-function sender connector
13. Bolt, 10 Nm
14. Selector shaft cover
- Removing and installing
15. Locking unit
- Removing, installing and checking

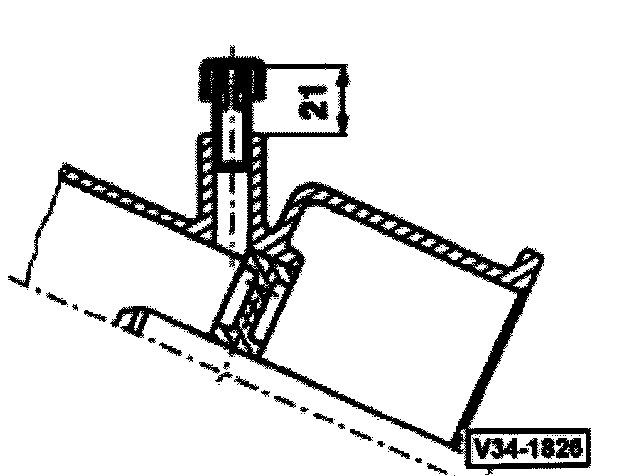

Fig. 1 Breather installation position
After pressing in, the breather must project 21 mm out of housing.
