Shift Interlock: Testing and Inspection


Ignition key withdrawal lock, checking operation
Start

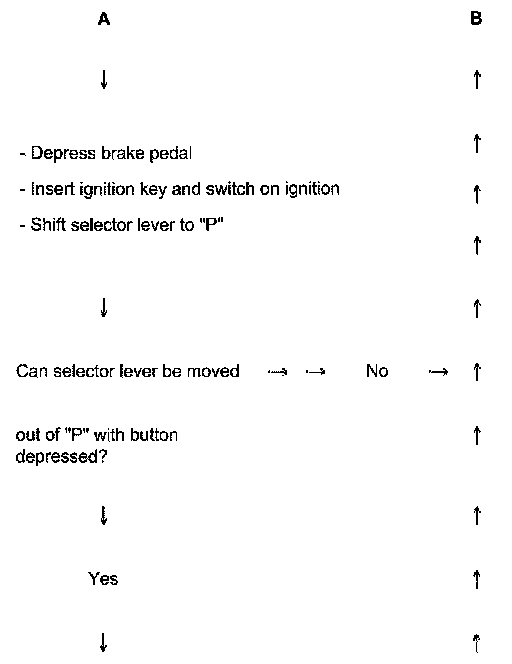

Checking operation (Part 1 of 4)

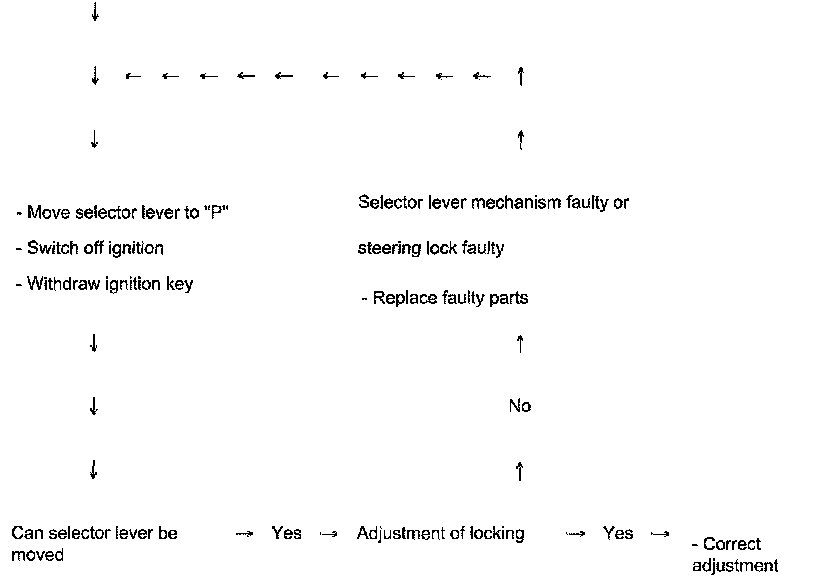

Checking operation (Part 2 of 4)





Checking operation (Part 3 of 4)





Checking operation (Part 4 of 4)
