Left Front Level Control System Sensor -G78-

General information
Headlight basic settings
Perform setting using VAS 5051.
To do so, you must enter by using the "Go to" key in "Function/Component selection".

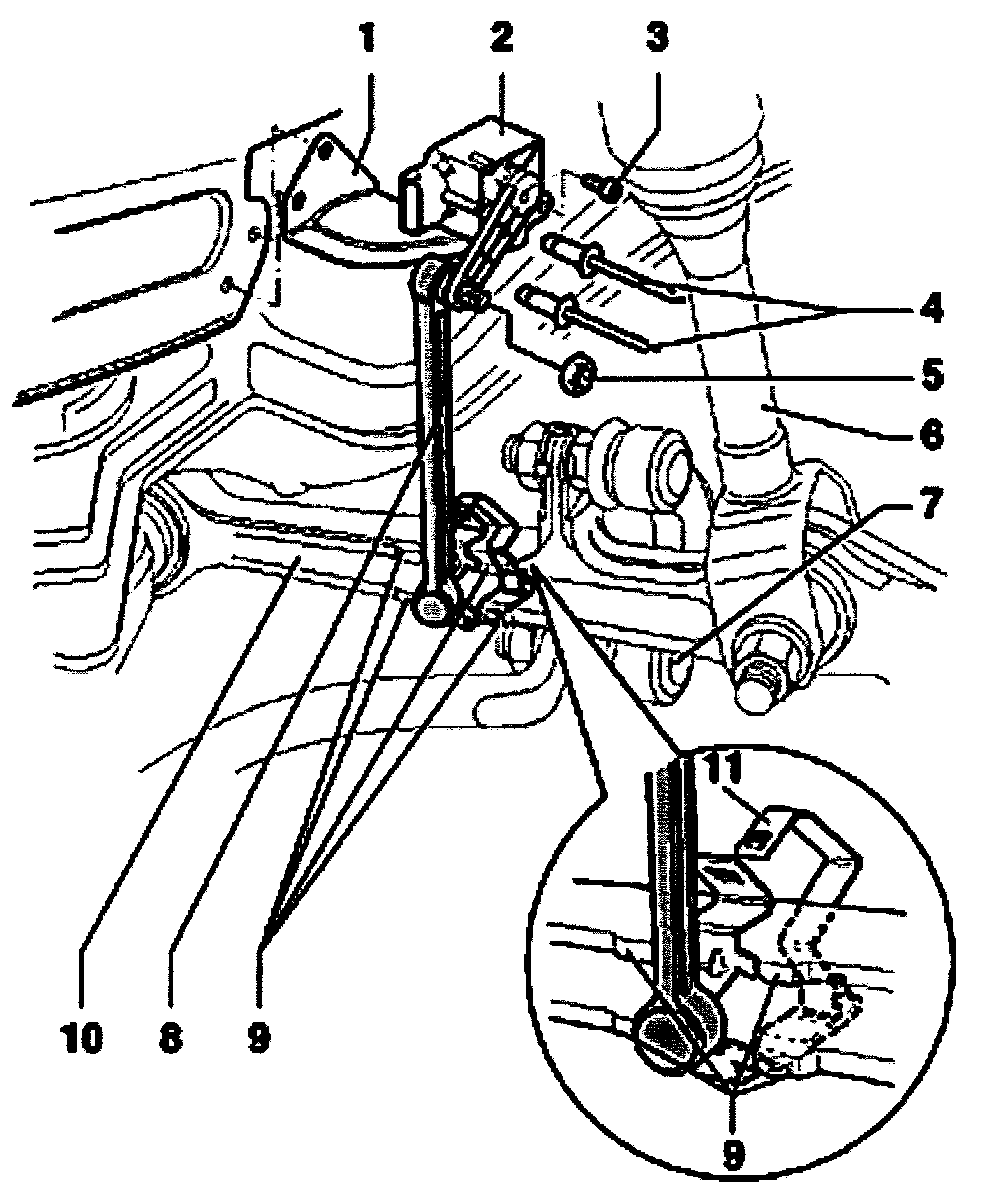

1. Bracket
2. Left front level control system sensor -G78
^ Checked electrically via self-diagnosis
^ When complaints are received
= Perform basic setting in "Guided fault finding" using VAS 5051.
To do so, you must enter by using the "Go to" key in "Function/Component selection".
3. Hex socket head bolt, 10 Nm
4. Pop rivet
5. Self-locking nut, 10 Nm
^ Replace each time after removing
6. Suspension strut
7. Anti-roll bar connecting link
8. Coupling rod from vehicle attitude sensor -G78
^ Do not remove coupling rod off ball head!
9. Positioning marks on track control link indicate installation position of vehicle attitude sensor -G78
10. Track control link
11. Clip
^ Pry off, with a blade type screwdriver
