Fuel Door Switch: Service and Repair

Fuel Tank Flap Release Button -E204- And Switch For Remote Unlock, Rear Lid -E188- From 10.00, Removing And Installing

Proceed as follows:

Removing
- Remove door panel

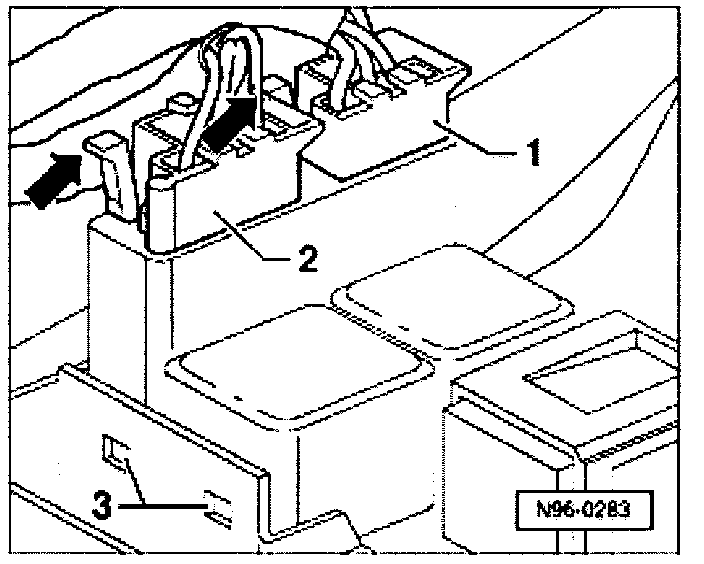

- Disconnect electrical connections -1- and -2- by depressing locking tabs -arrow-.
- Unclip switches from locking tabs -3- and remove

Installing
Installation in reverse order of removal.
