Display Groups 70-79 (Reducing Emissions)




Measuring Value Blocks, Evaluating, Display Groups 70 To 79 -Emissions Reduction-

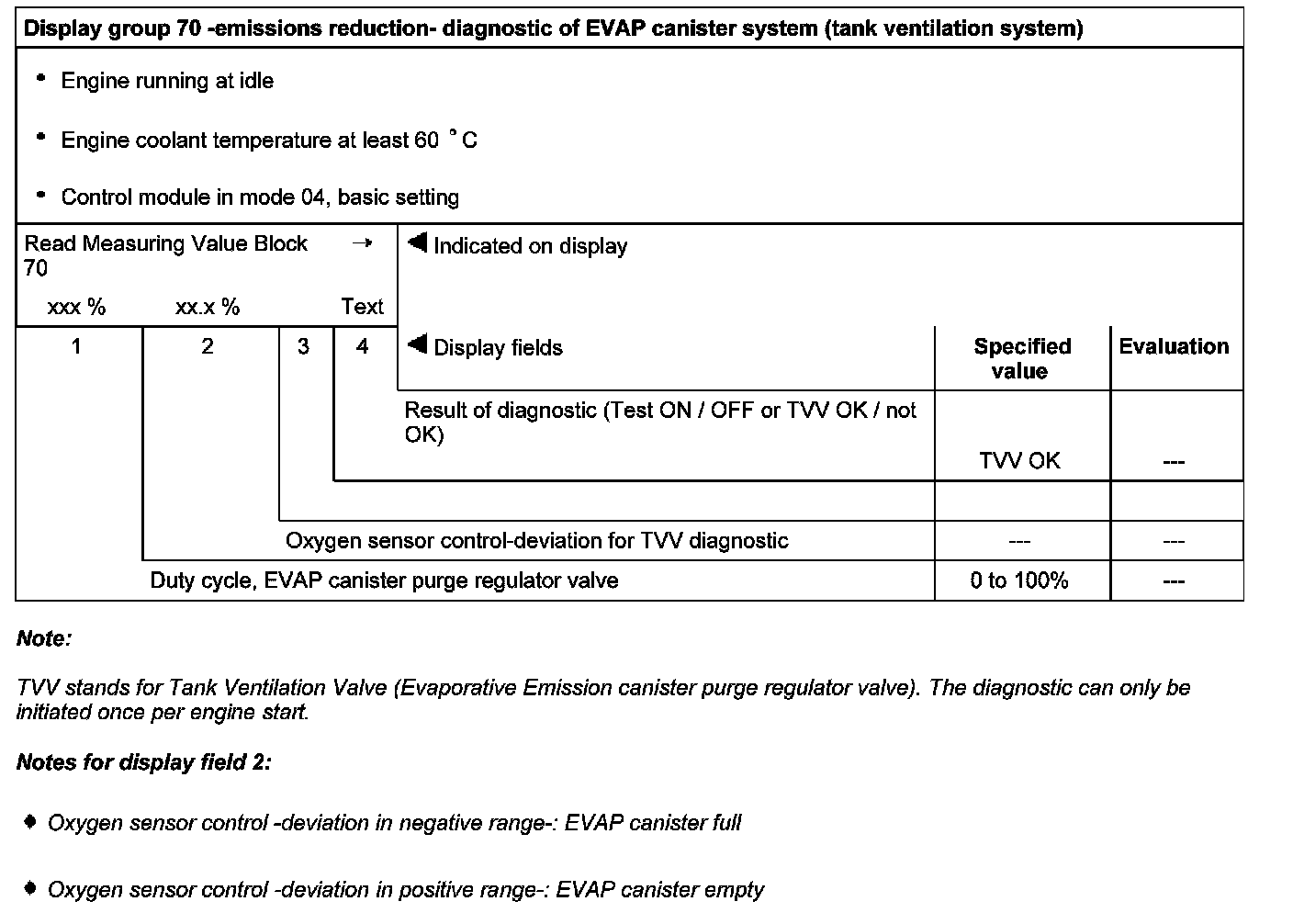

Display Group 70:

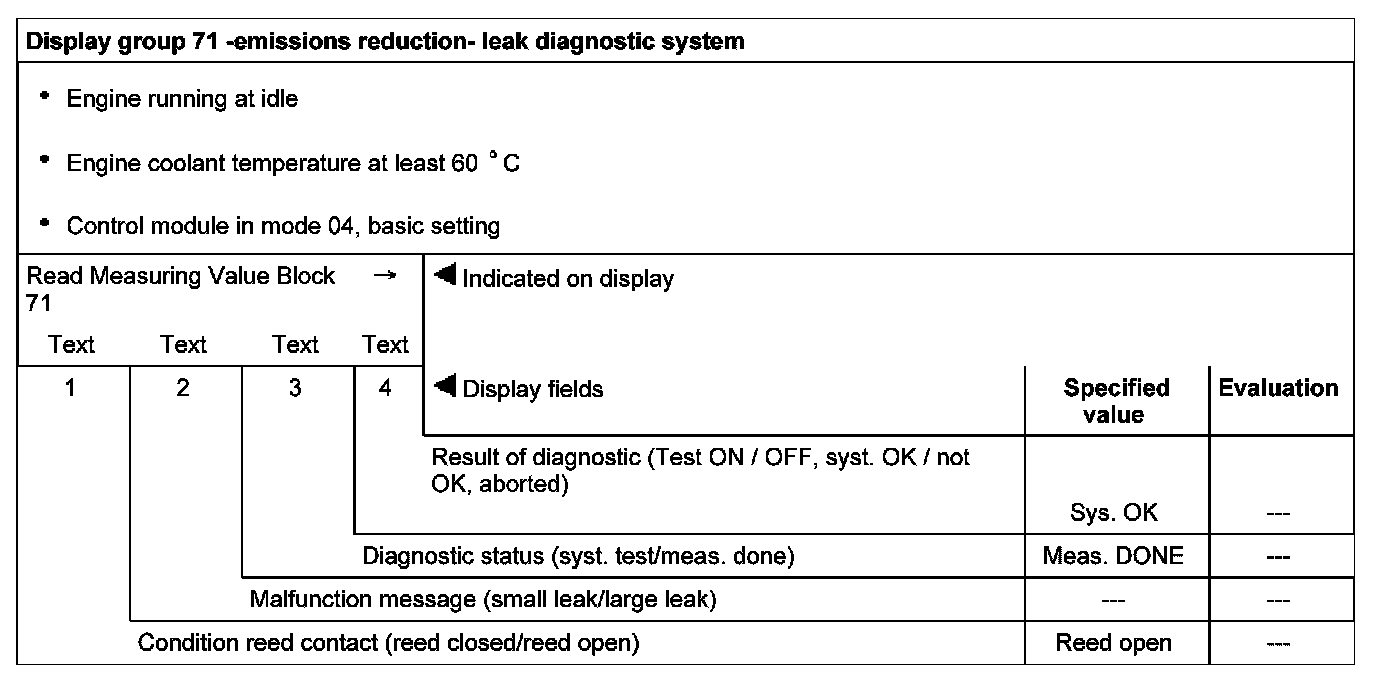

Display Group 71:

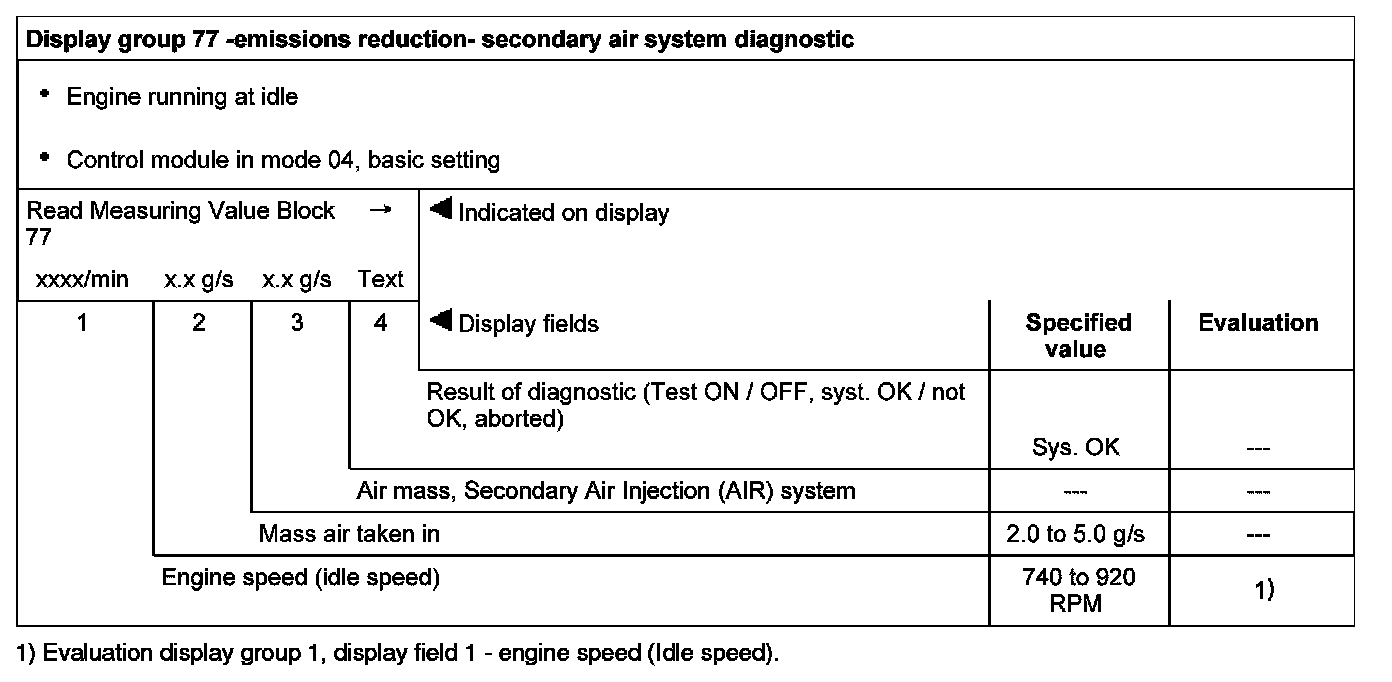

Display Group 77:
