Standard Headlamp (Non HID) Driving Direction Setting, Checking

Headlight Driving Direction Setting, Checking

Headlights may be equipped with a mechanism that allows the headlight beam pattern to be changed in accordance with market appropriate driving direction. Potential glare to oncoming traffic is minimized with the proper setting.

Confirm setting for the USA/CDN as follows:
- Remove large cover cap from rear of headlight housing.

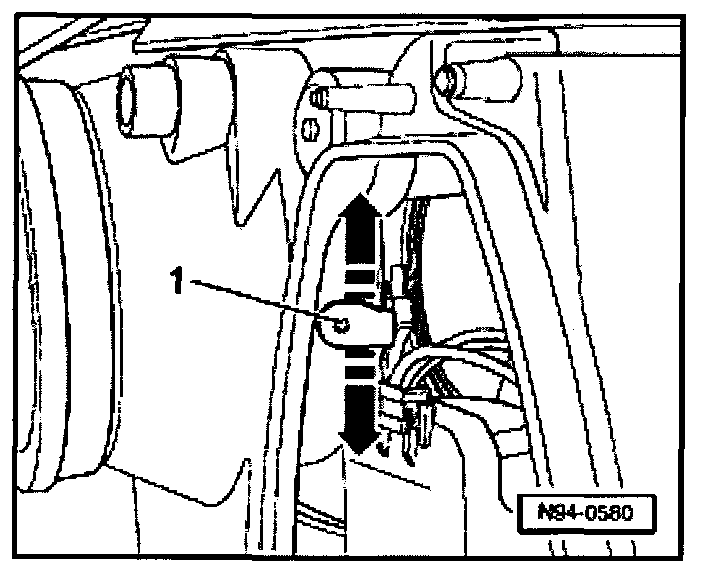

- Confirm selector -1- to be in lower setting -down arrow-.
- Selector up: right-hand drive (e.g.: Great Britain - Australia etc.)
- Selector down: left-hand drive (e.g.: USA - Canada - Europe etc.)
