Fog/Driving Lamp Bulb: Service and Repair

Fog Lamp Bulb Replacing

- Remove fog lamp assembly.
- Remove cover cap from rear of fog lamp housing by turning.

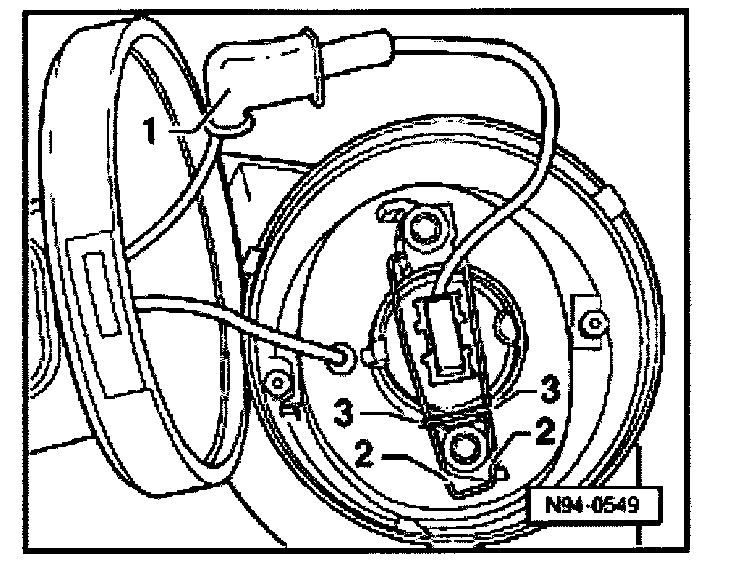

- Disconnect electrical connection -1-.
- Unclip retainer -2- from lugs -3- and flip over to side.
- Pull out bulb from housing.
- Insert new bulb (making sure that the bulb mounting aligns with the locating lugs in the housing) and re-clip retainer.
- Reinstall fog lamp housing.
- Check fog lamp function/aim.
