Evaluating Display Group 125 - 131

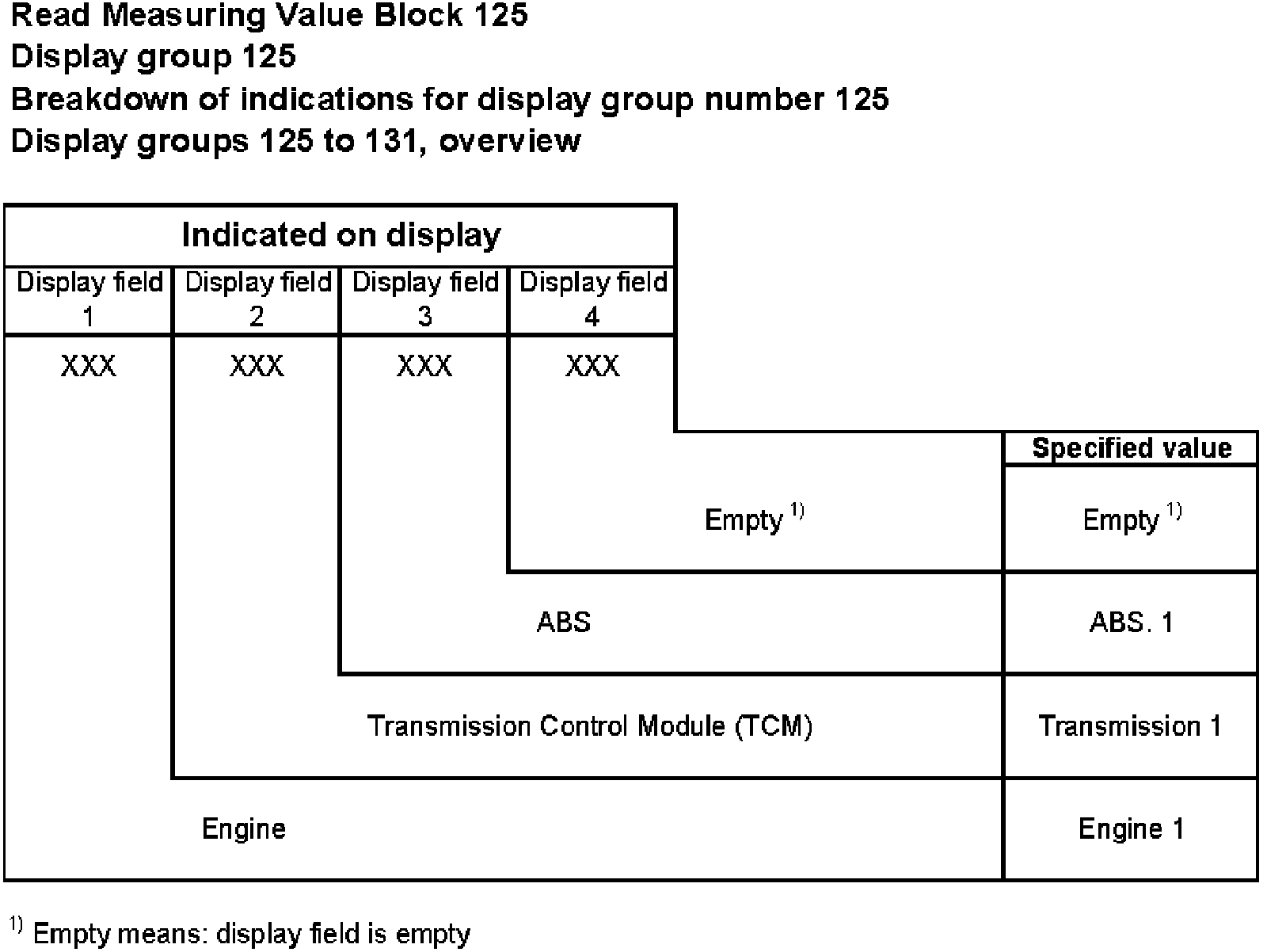

Display Group 125:

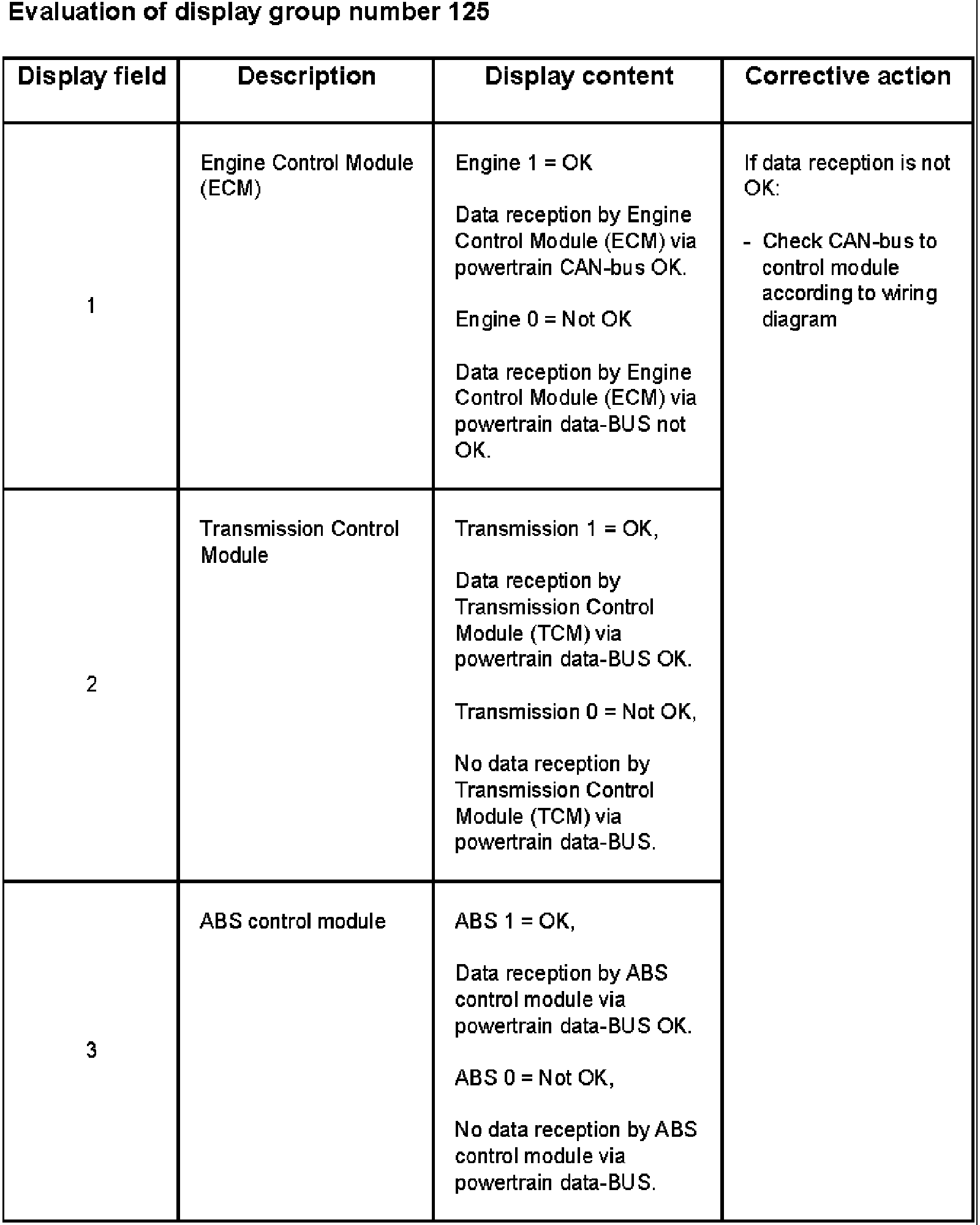

Evaluating Display Group 125:
Display Group 126:

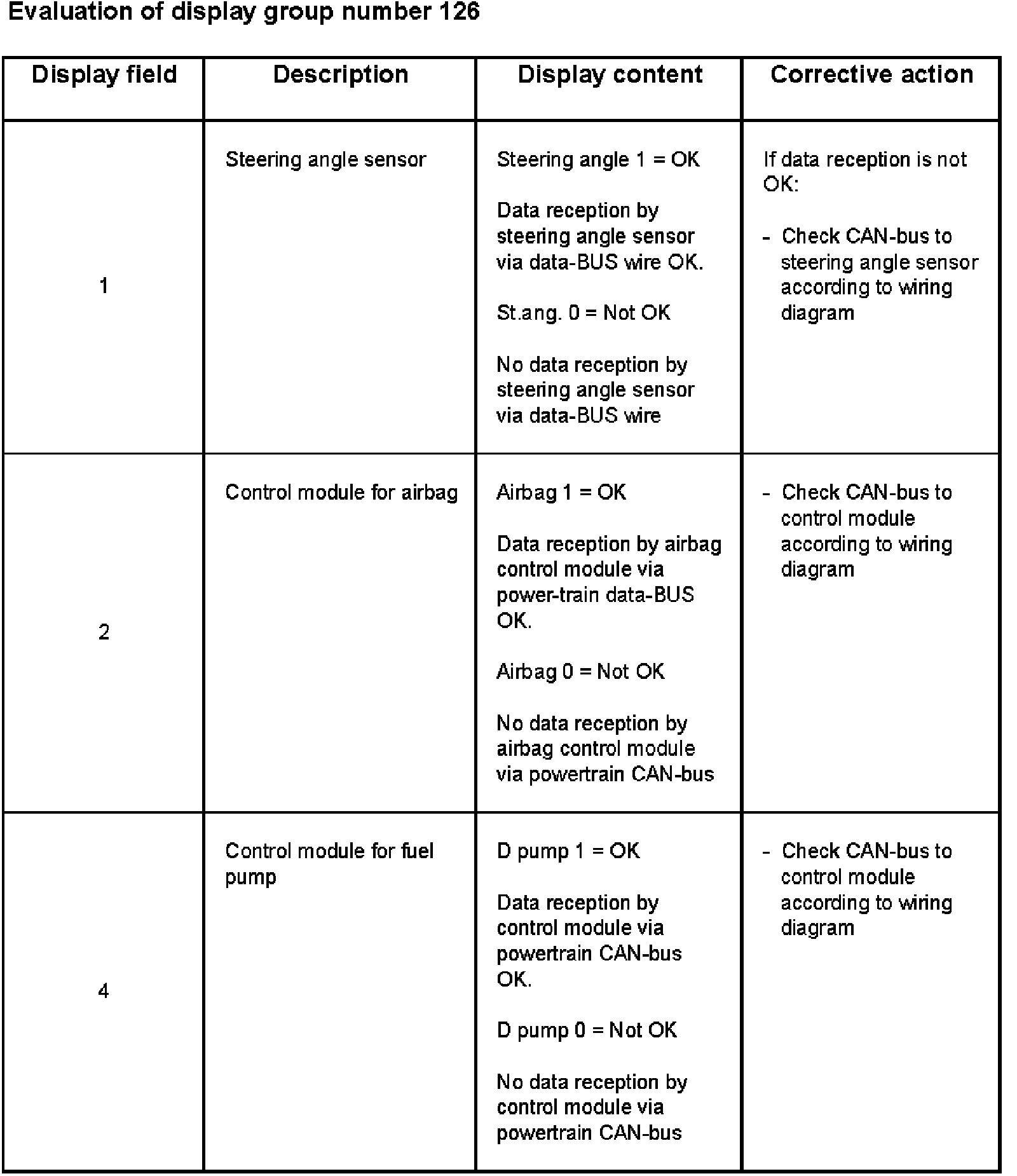

Evaluating Display Group 126:

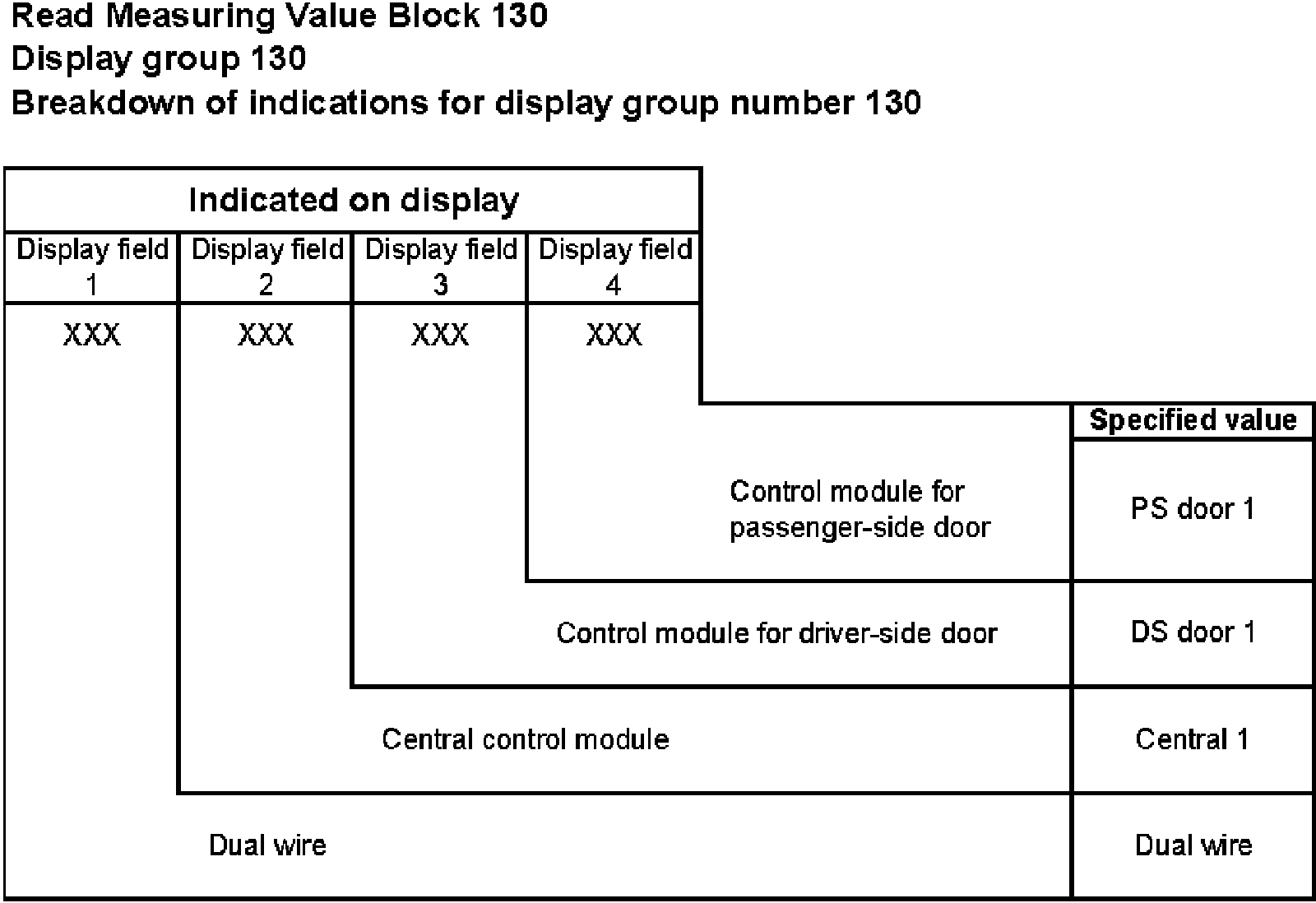

Display Group 130:

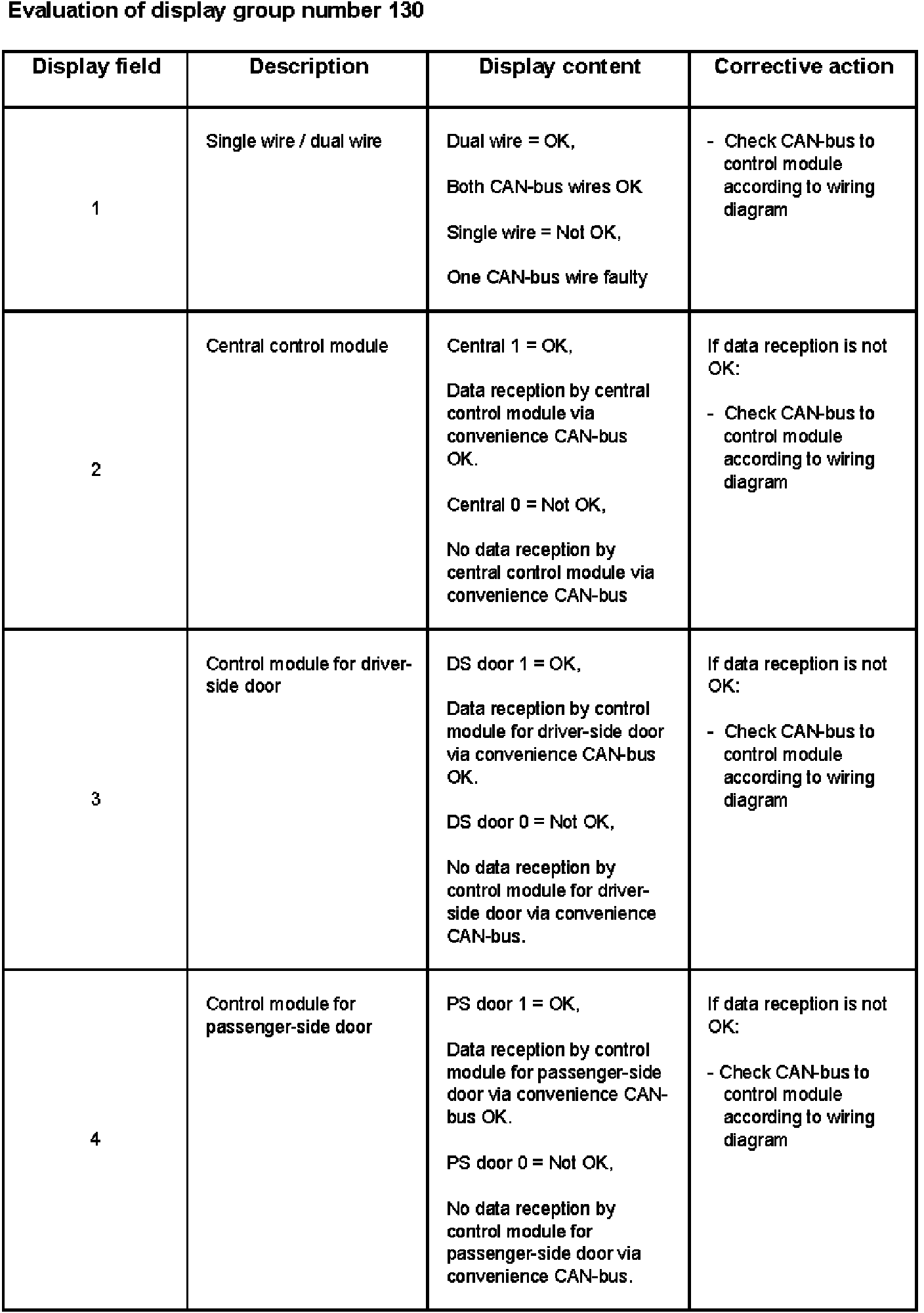

Evaluating Display Group 130:

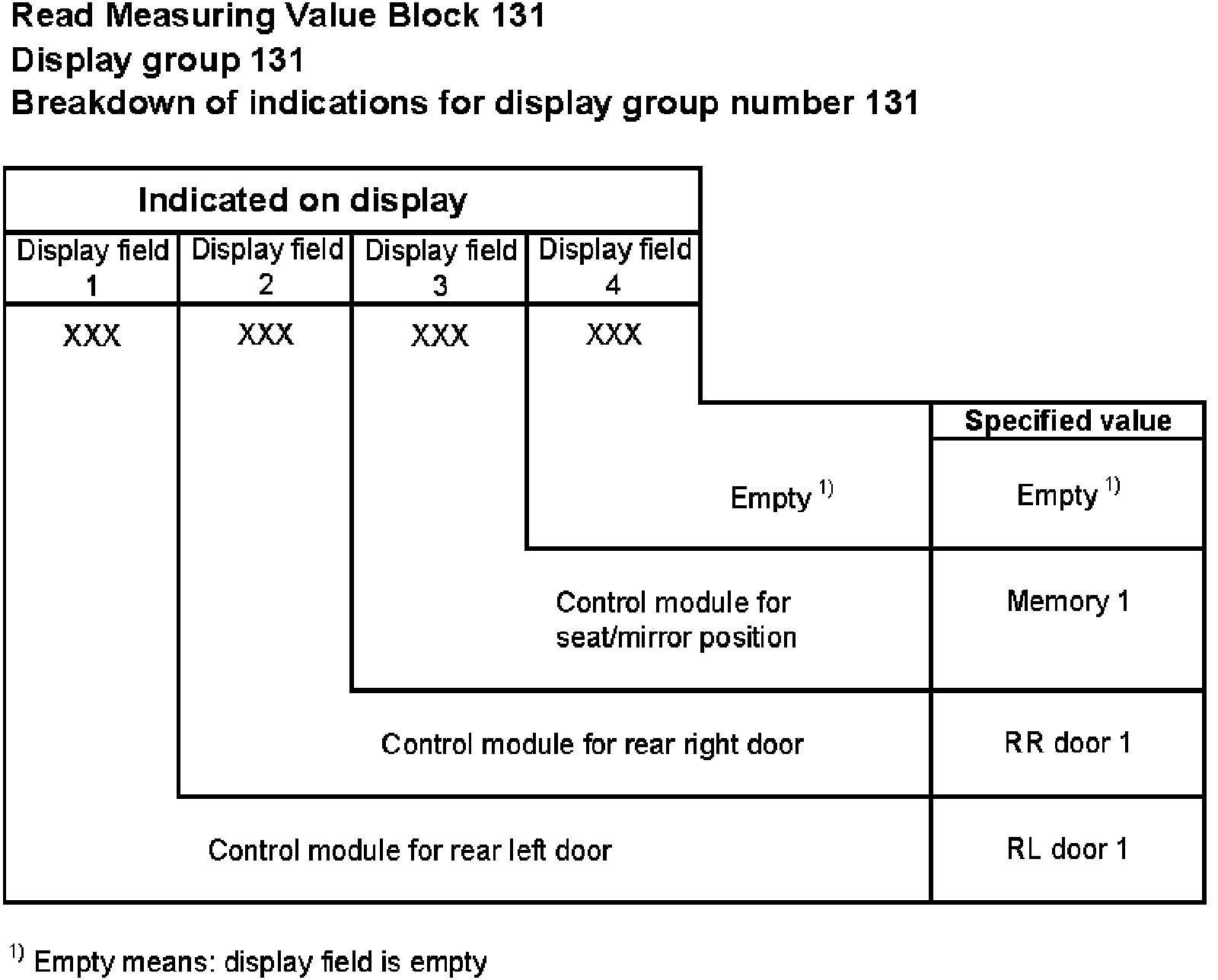

Display Group 131:

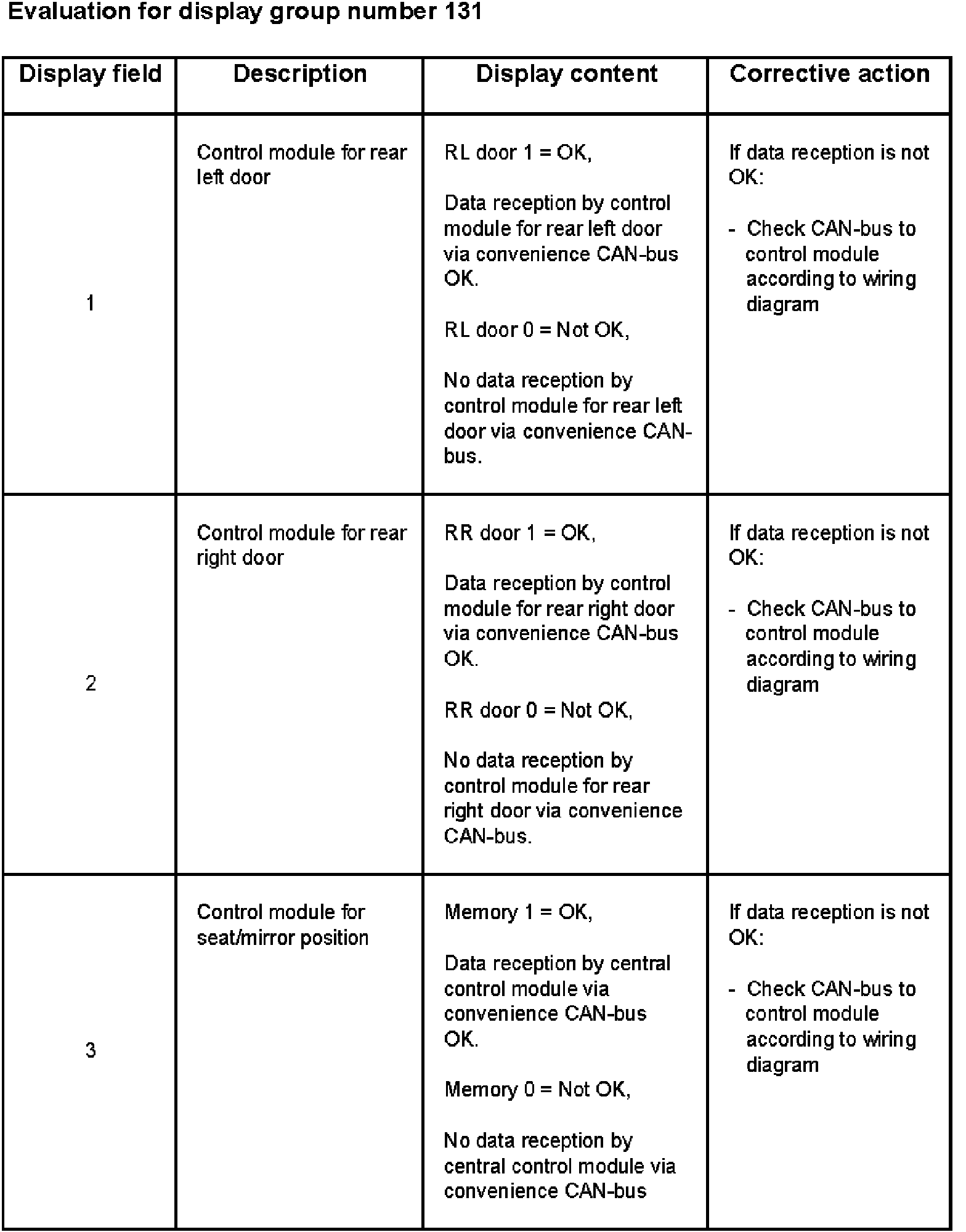

Evaluating Display Group 131:
