Home
>>
Volkswagen
>>
2001
>>
Passat Wagon (3B6) L4-1.8L Turbo (AWM)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Master Diagram Index
>>

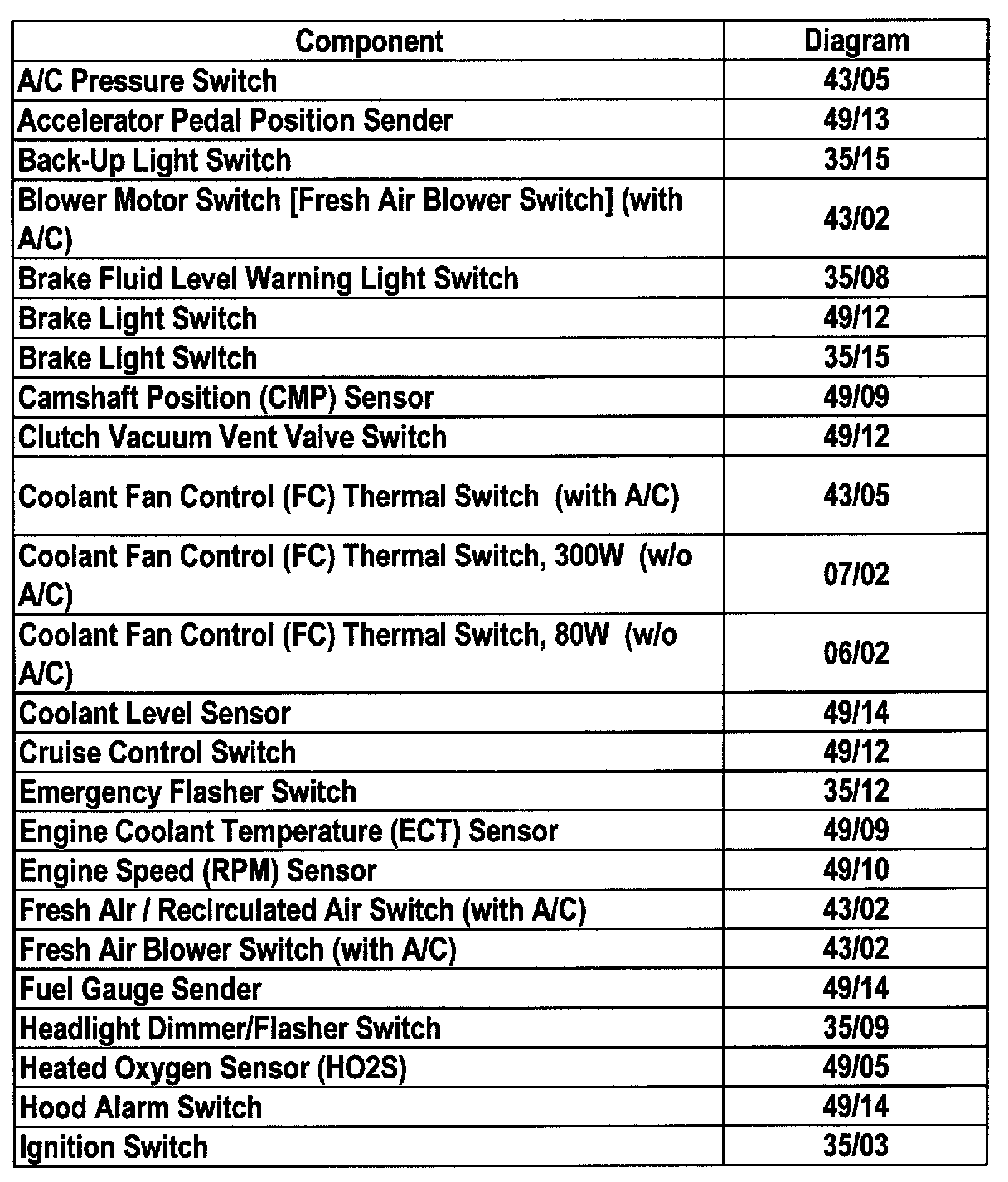

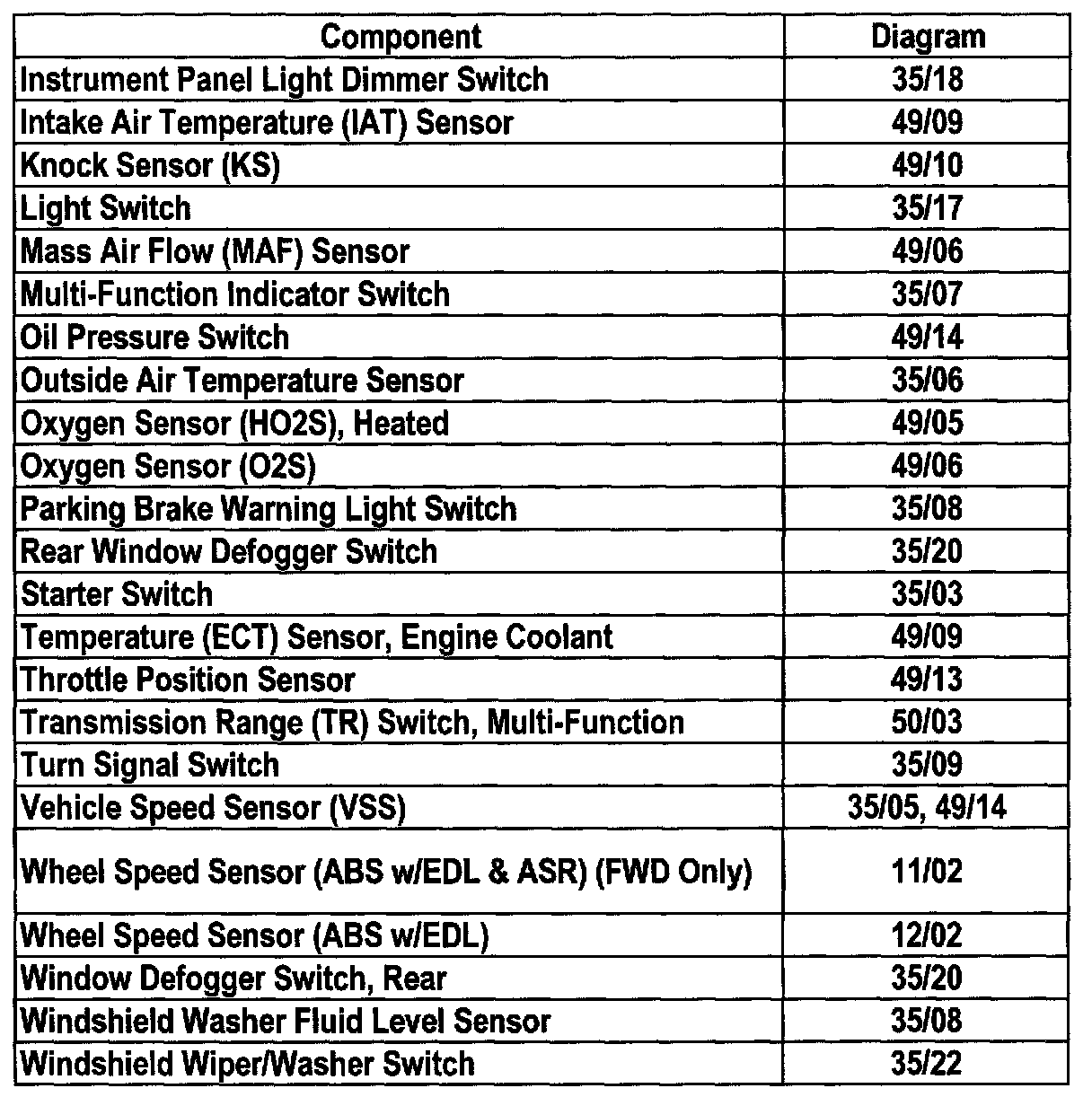

Sensors and Switches Only
>>
Up to September 2000
Up to September 2000
A/C - Ig:
In - Wi:
