Passat Wagon (3B6) L4-1.8L Turbo (AWM)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Master Diagram Index
>>
Sensors and Switches Only
>>
From October 2000
From October 2000

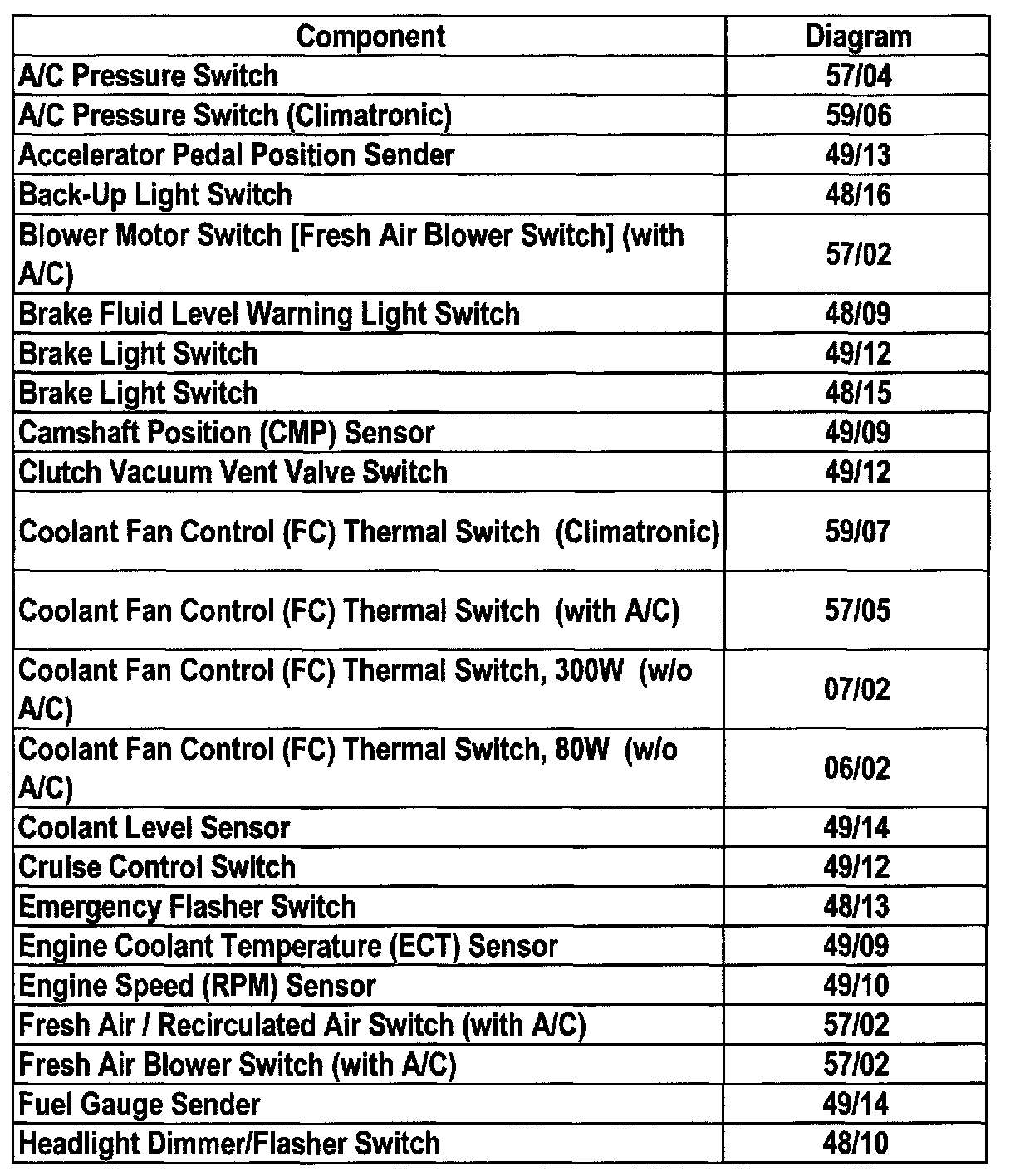

A/C - He:

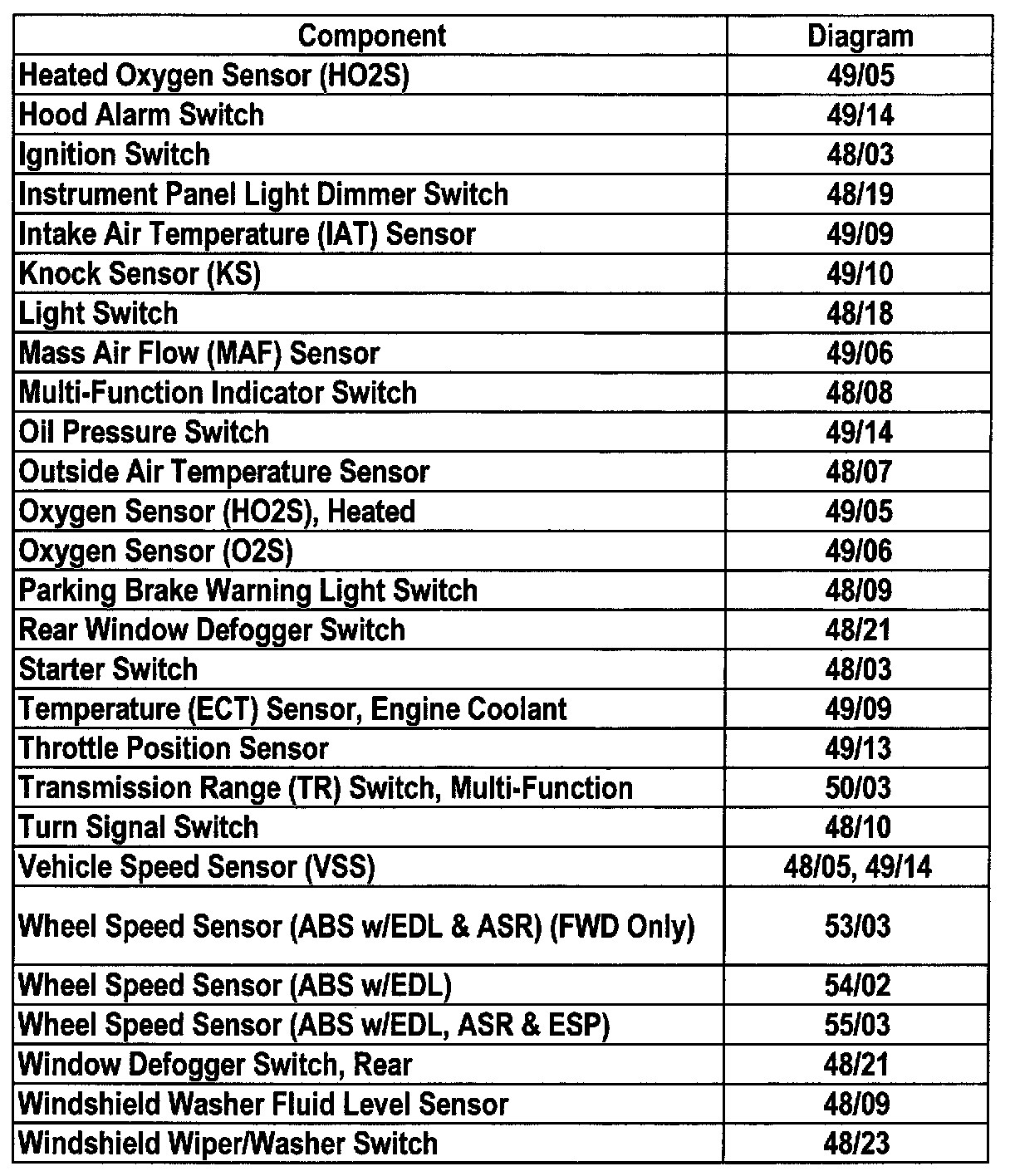

He - Wi:
