Troubleshooting Flow Charts


ABS Bosch 5.3, ABS/EDL Bosch 5.3 and ABS/EDL with ASR Bosch 5.3; troubleshooting using VAG1551 Scan Tool (ST) (flow chart)

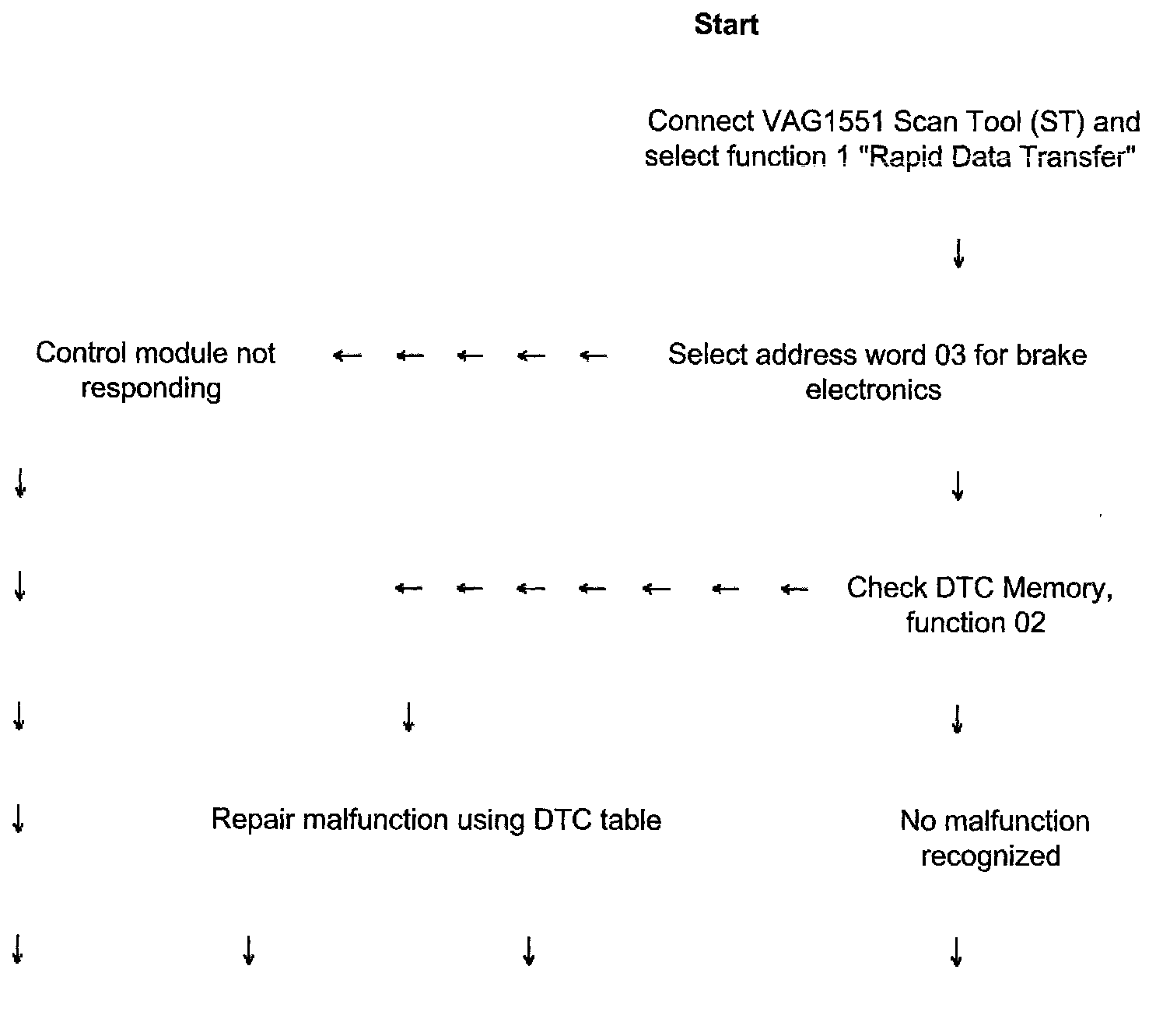

Flow Chart part 1 of 4

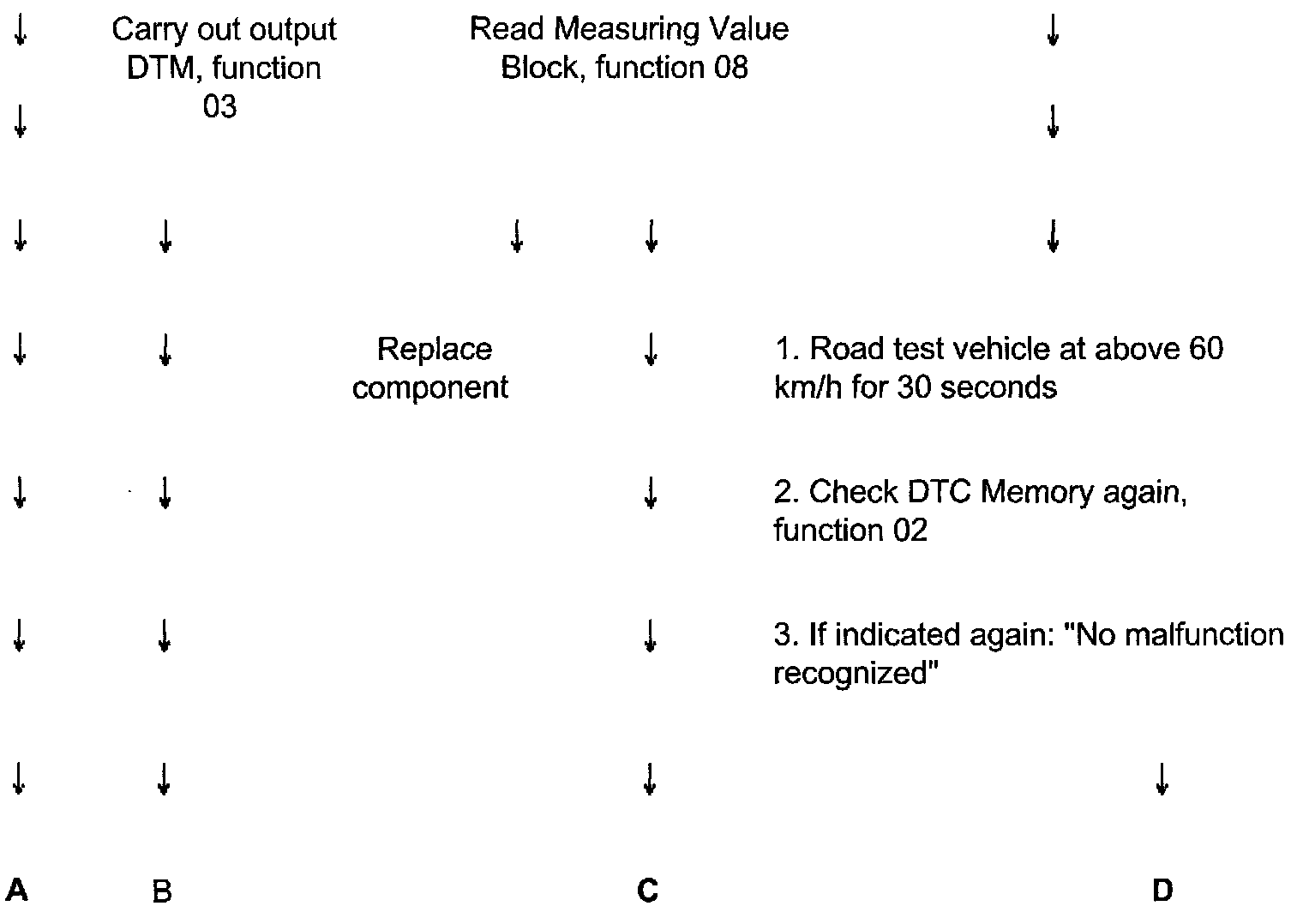

Flow Chart part 2 of 4

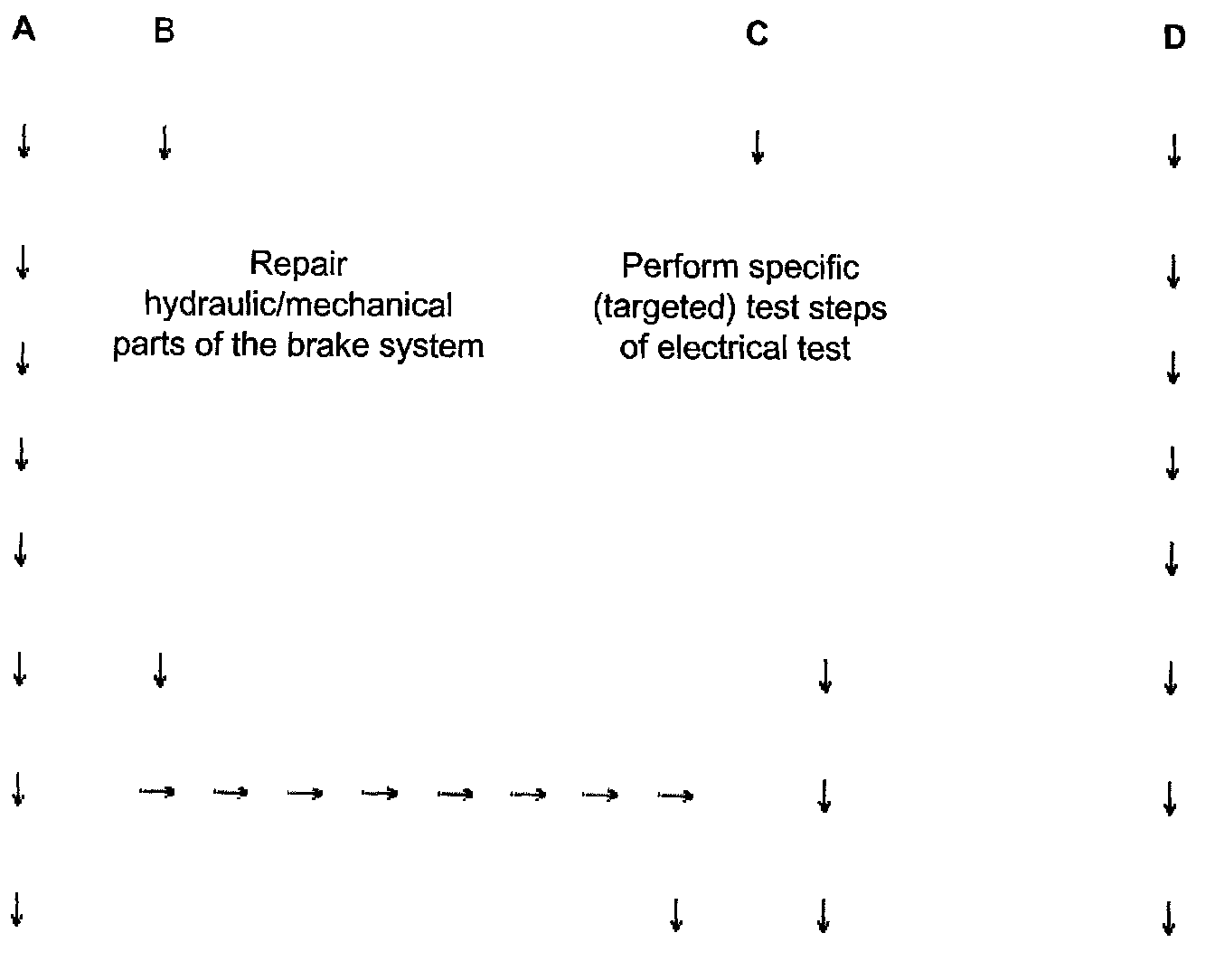

Flow Chart part 3 of 4

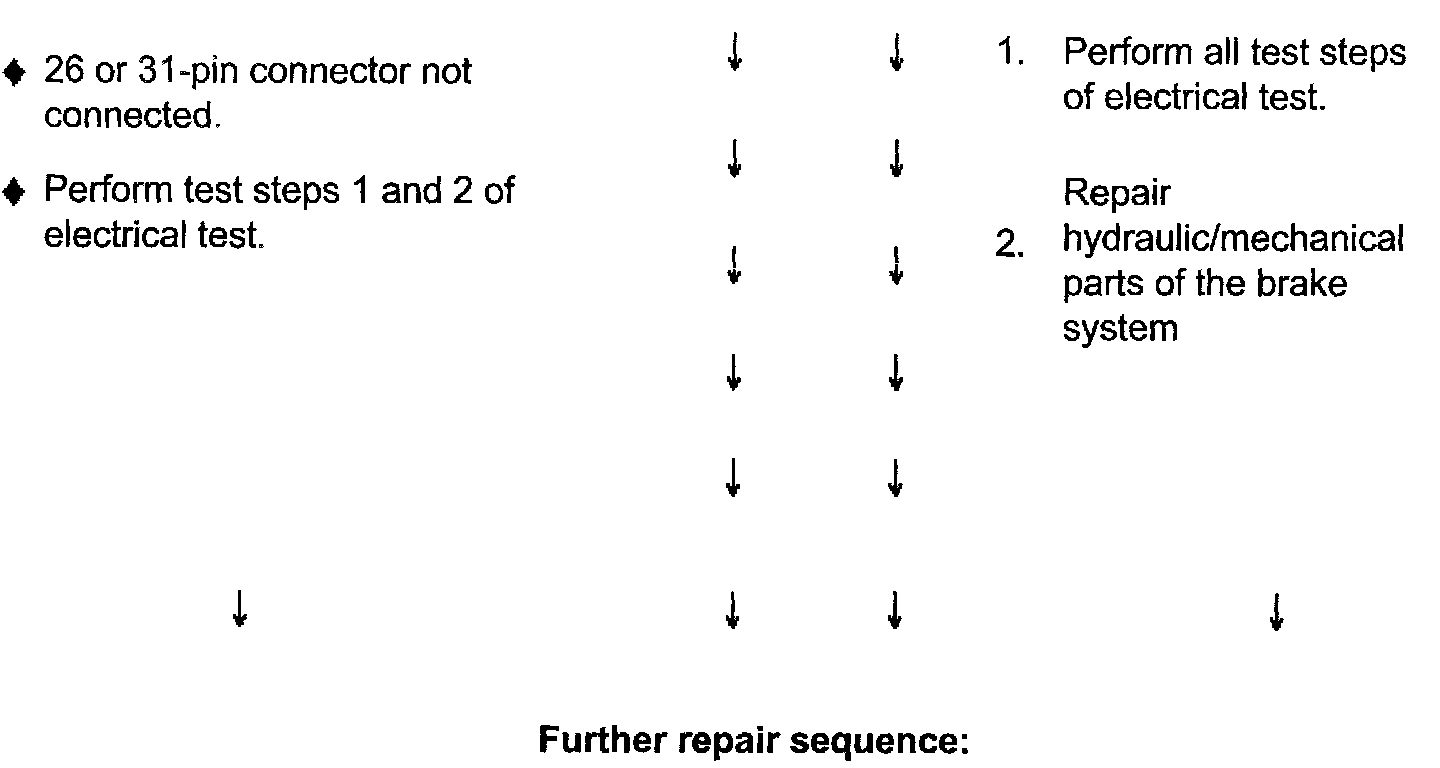

Flow Chart part 4 of 4
