Evaluating Display Group 008

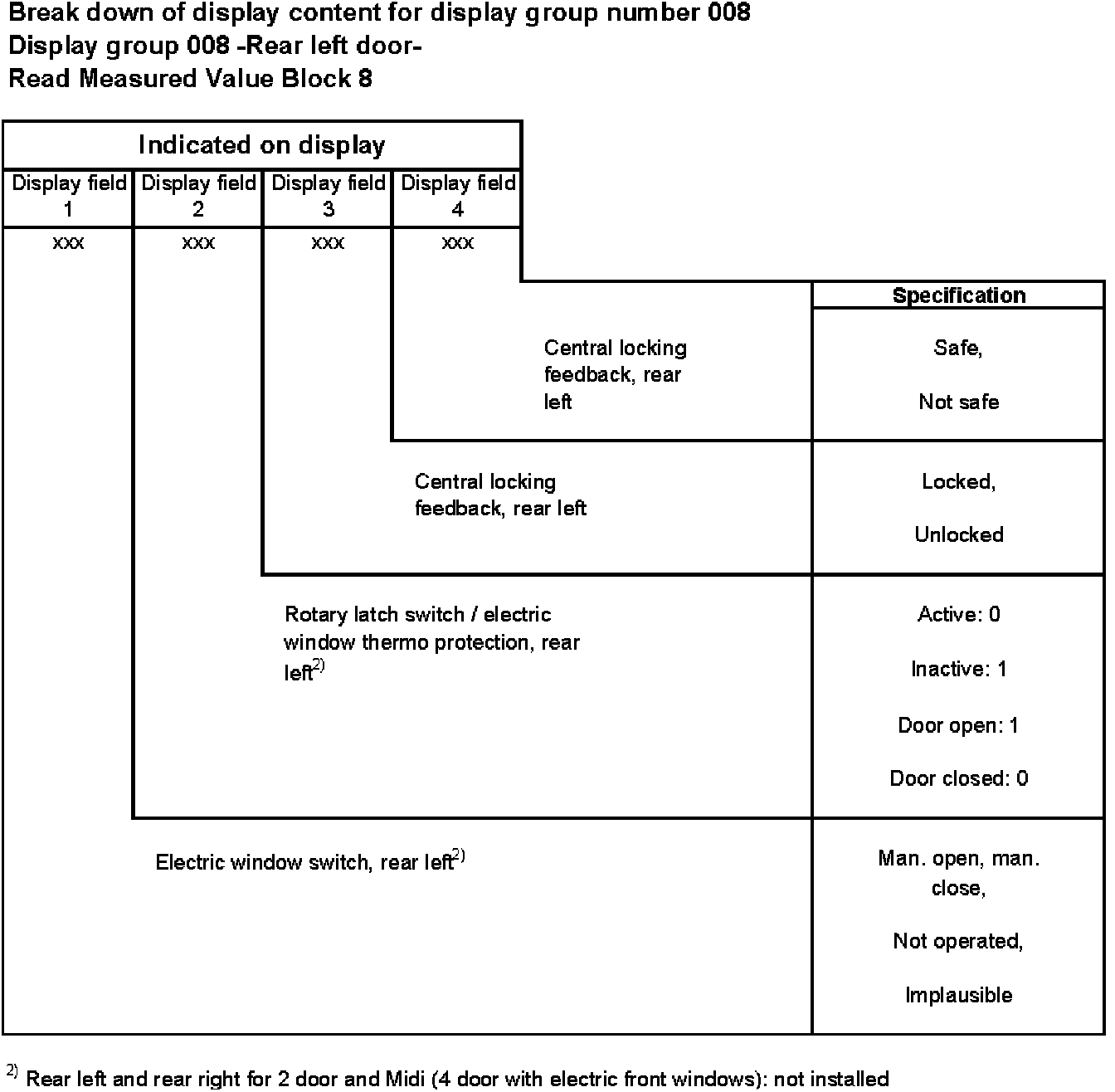

Break down of display content for display group number 008


Display Group 008:

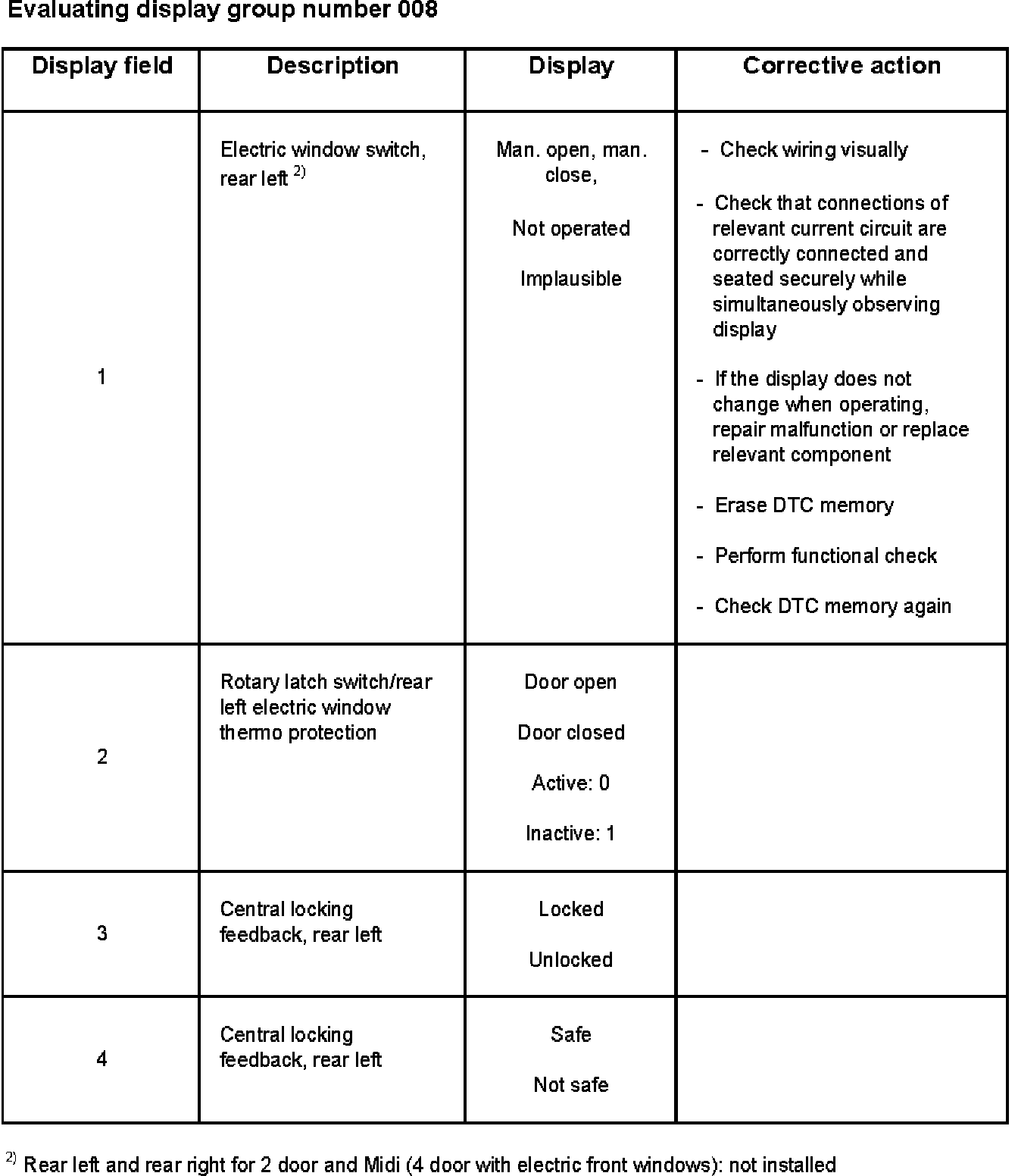

Evaluating display group number 008


Display Field 1 - 4:
