Evaluating Display Group 003

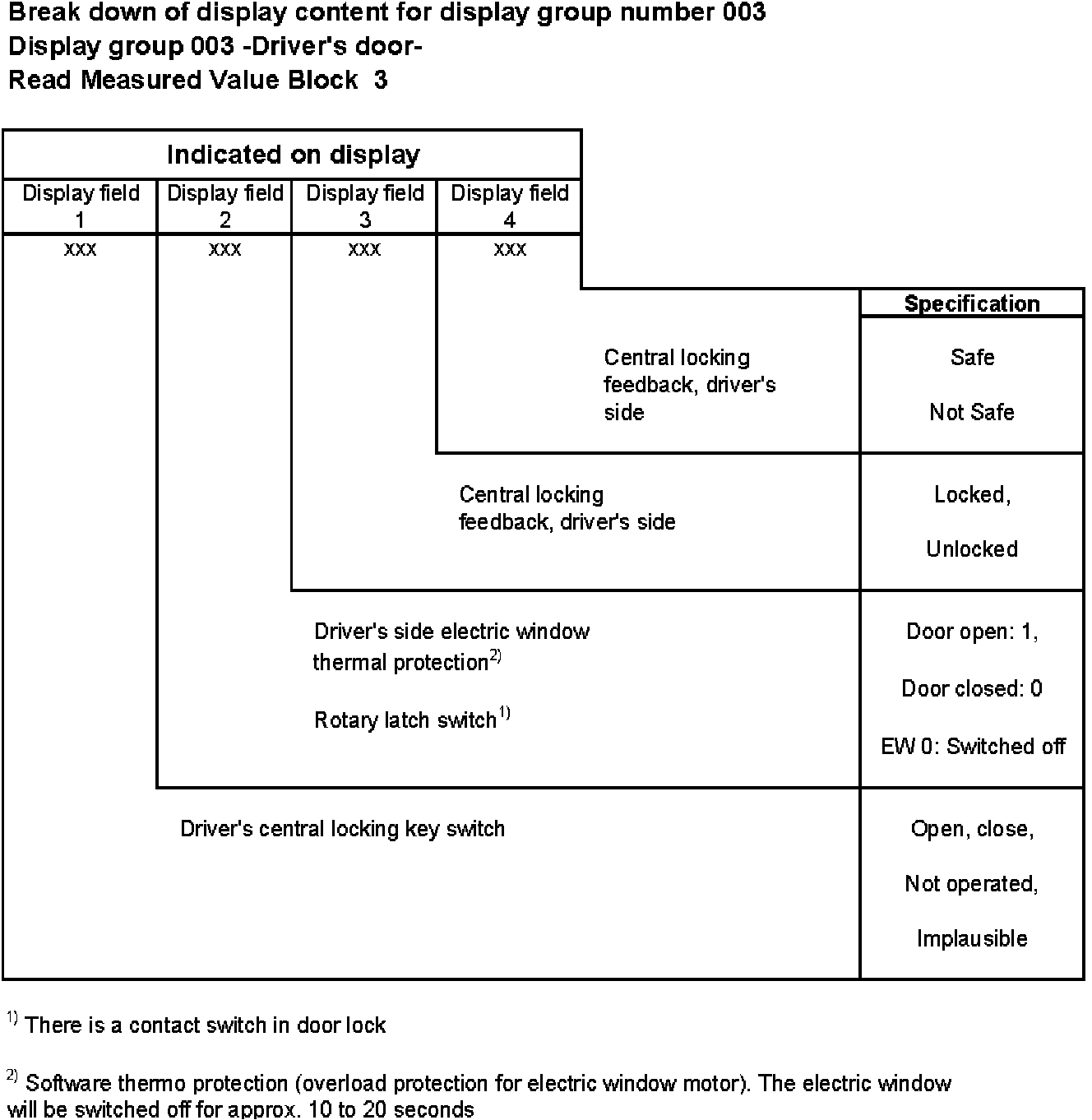

Break down of display content for display group number 003


Display Group 003:

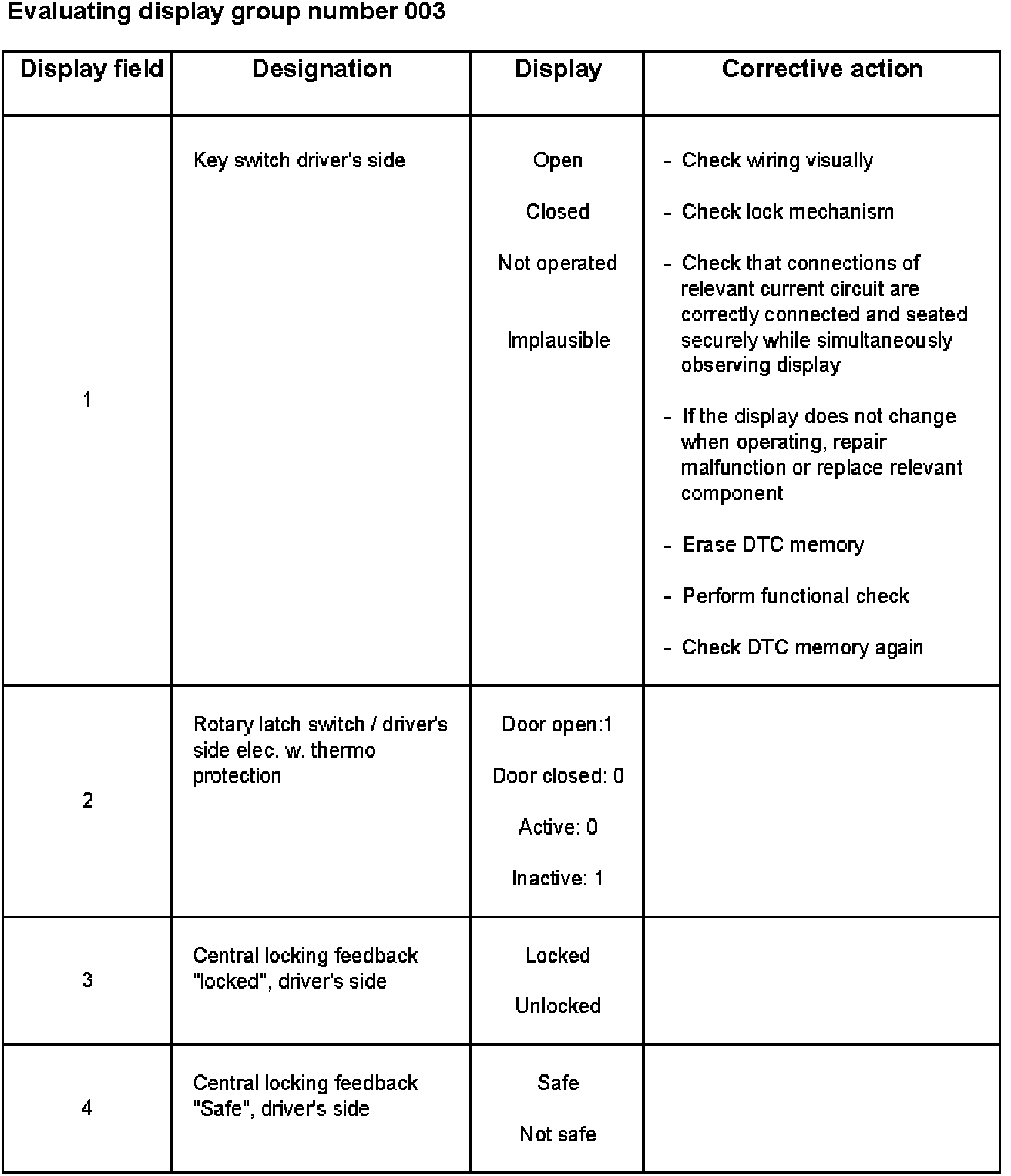

Evaluating display group number 003


Display Field 1 - 4:
