Liftgate Window Glass: Locations

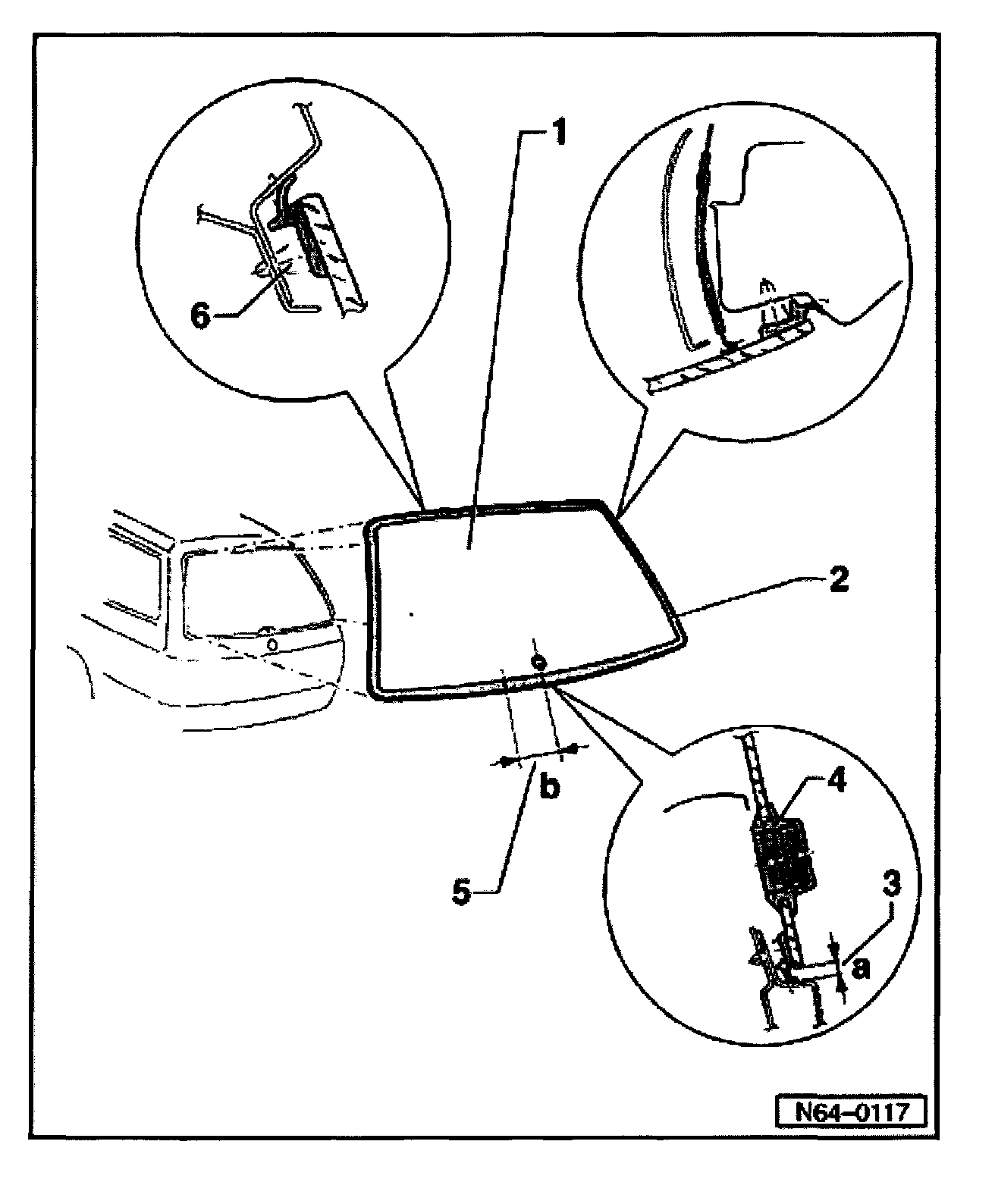

Rear Window, Assembly Overview







1 - Rear window
2 - Ceramic layer
3 - Dimension a = 4.5 mm
4 - Rubber seal
5 - Dimension b = 150 mm
- Area for adhesive bead joint
6 - PUR adhesive sealant
- Cross section of bead:
Width = 7 mm
Height = 11 mm
(including precoating , residual material on window glass and window flange)
7 - Sealing lip - (component part of precoating)
