Display Group 022
Display Group 022
Display Group 022
Indicated on display:
Read Measuring Value Block 22
->
1
1
1
3

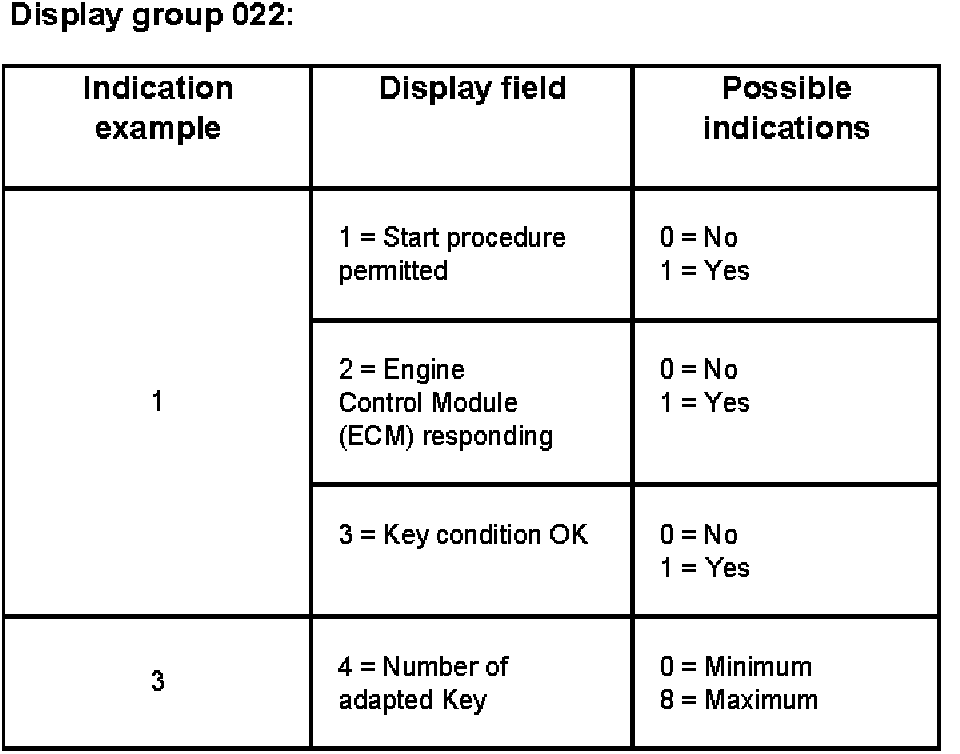

Display Group 022:
