Home >> Volkswagen >> 2001 >> Passat Wagon (3B6) L4-1.8L Turbo (AWM) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Brakes and Traction Control >> Electrical Testing >> Test Tables >> Test Step 8 & 9

Test Step 8 & 9

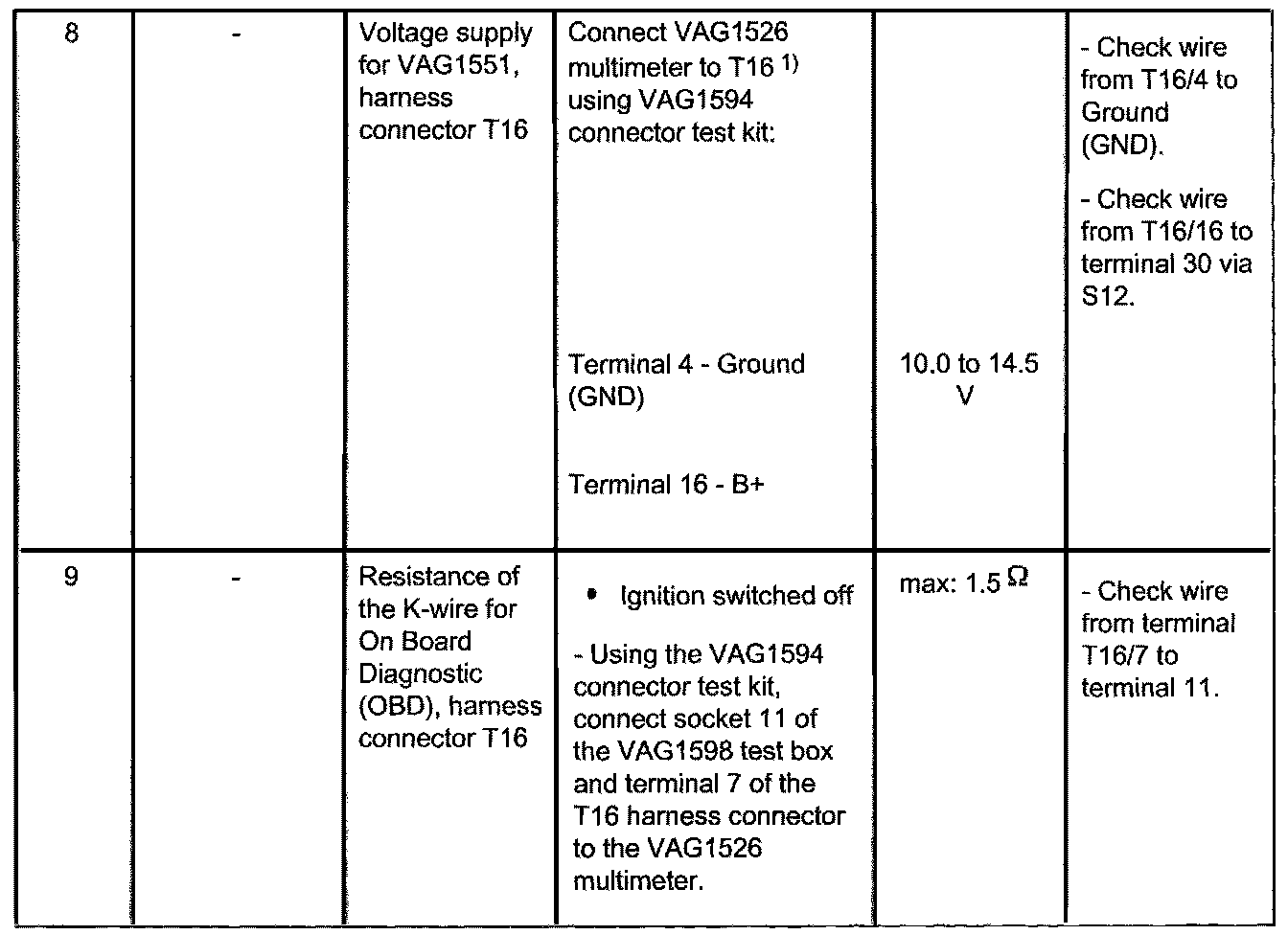

Test Steps 8 & 9 - Part 1:



Test Steps 8 & 9 - Part 2:
