Home >> Volkswagen >> 2001 >> Passat Wagon (3B6) L4-1.8L Turbo (AWM) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Brakes and Traction Control >> Electrical Testing >> Test Tables >> Test Step 10

Test Step 10

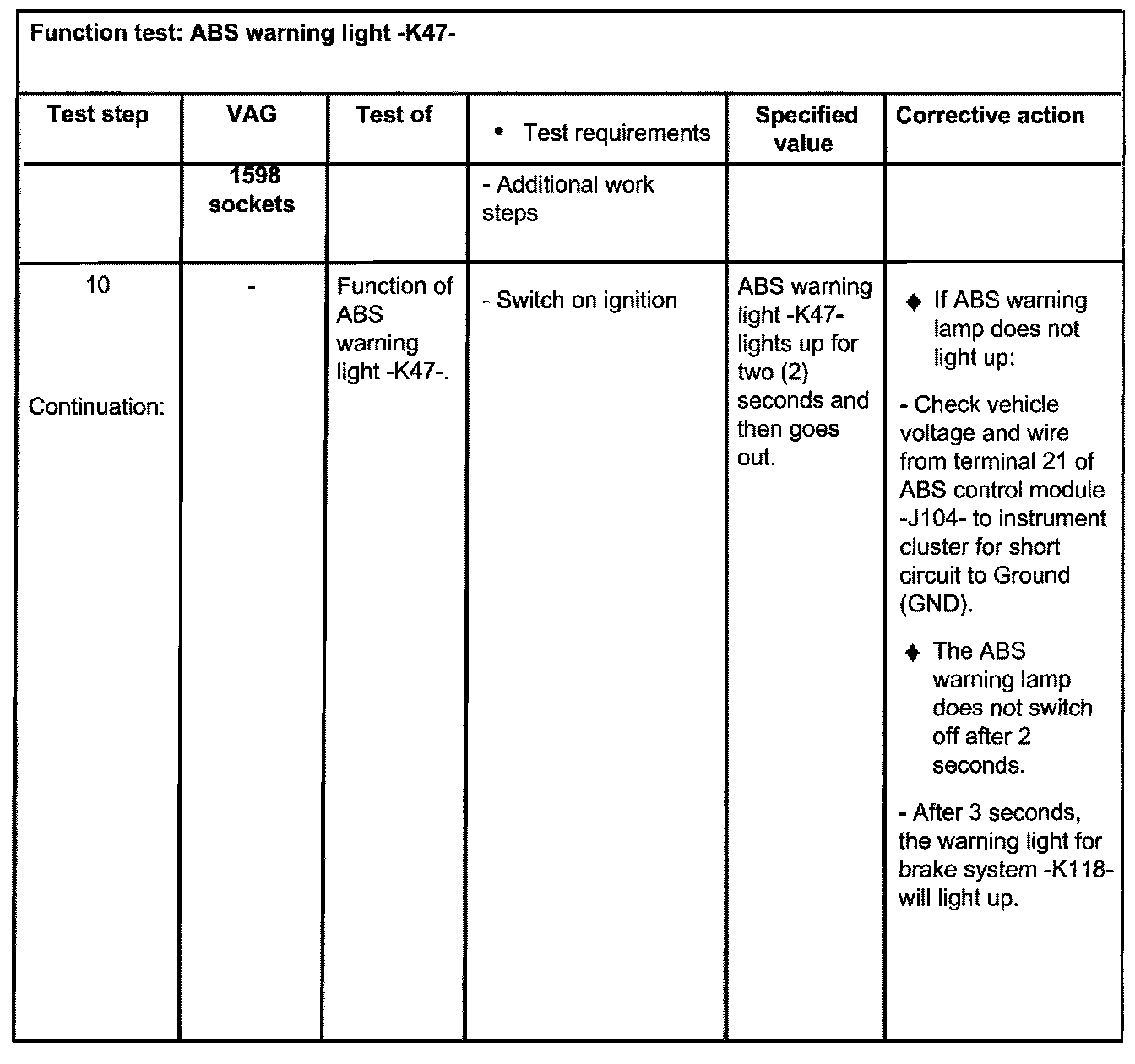

Test Step 10 - Part 1:

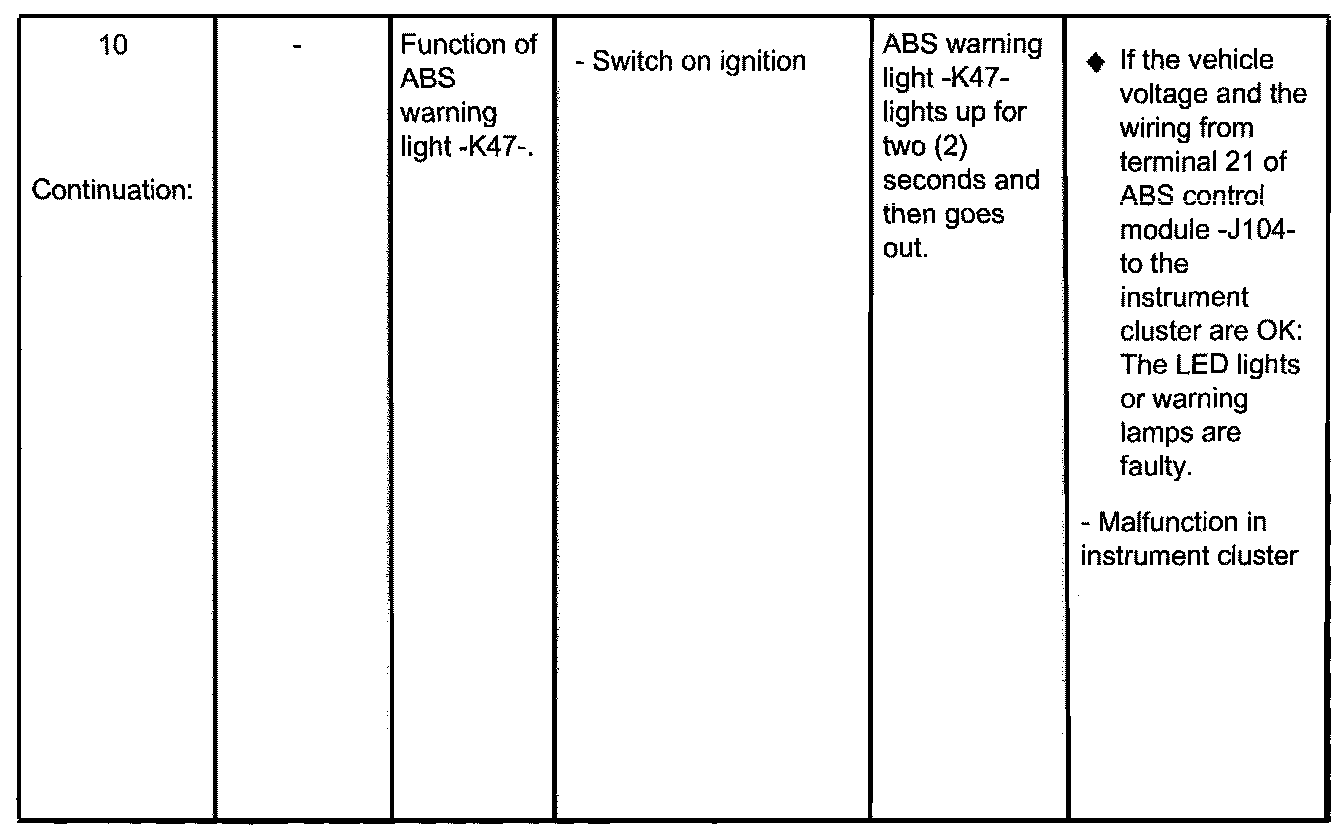

Test Step 10 - Part 2:

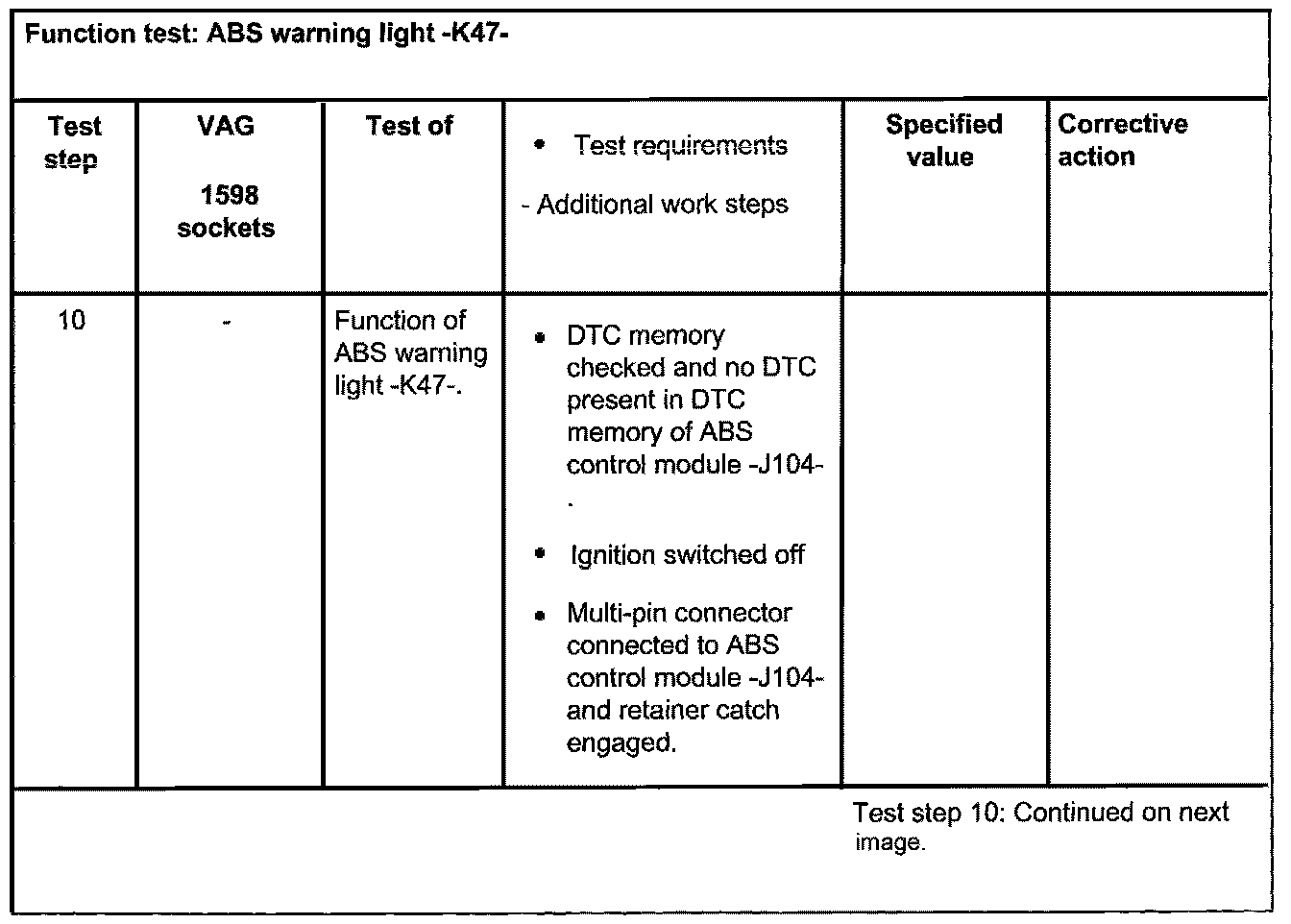

Test Step 10 - Part 3:



Test Step 10 - Part 4:

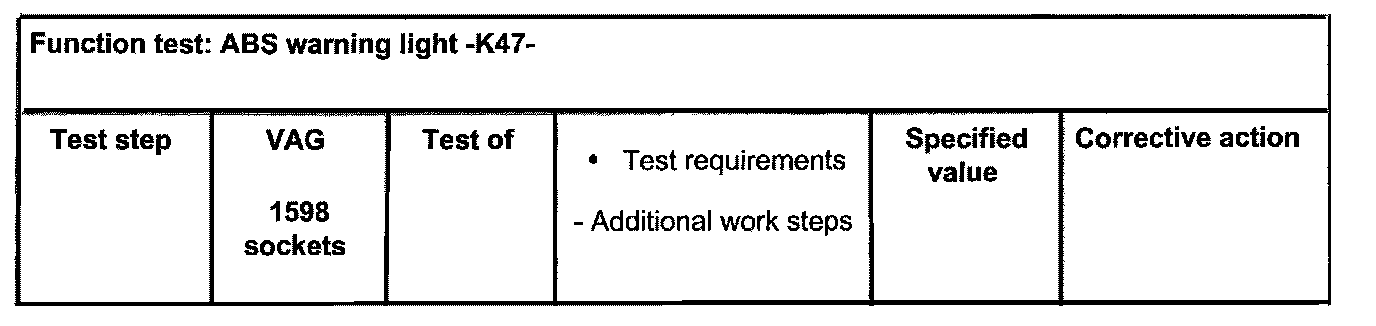

Test Step 10 - Part 5:
