Steering Wheel - Assembly Overview

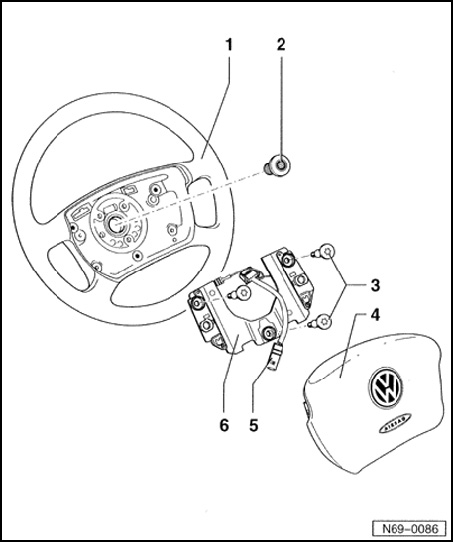

Steering Wheel - Assembly Overview







1 - Steering wheel
2 - Socket-head bolt
- 55 Nm
- coated with locking compound
- may be used up to five times
- press in a punch indentation after each installation

3 - Torx bolts
- 5 Nm

4 - Airbag unit with driver side airbag igniter -N95-
- Because of differing engaging mechanisms, only steering wheels and airbag units from same supplier can be installed. - Removing, three-spoke steering wheel
- Removing, four-spoke steering wheel

5 - Connector
6 - Securing plate
