Cylinder Head Assembly: Testing and Inspection

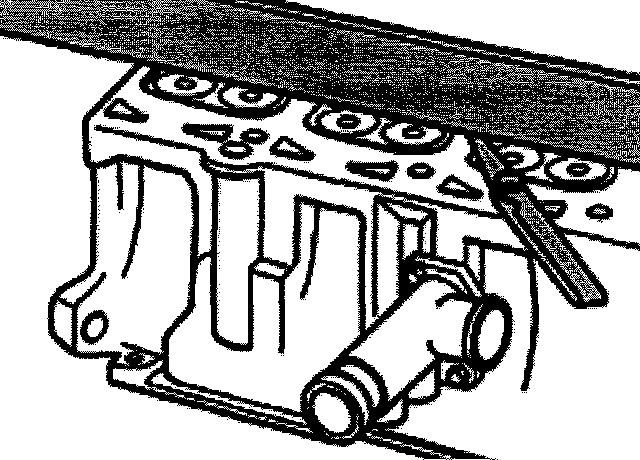

Cylinder head distortion, checking






Special tools

- Feeler gauges
- Straight edge

Maximum permissible distortion: 0.1 mm
