4 Speed Automatic 01M

Selector lever cable, checking and adjusting
Checking
- Shift selector lever into "P" position.





- Pry selector lever cable off lever/selector shaft and route so that end is free to move.

Note: Do not bend or kink the selector lever cable.

- Move selector lever from "P" to "1".
- Check front protective sleeve on selector lever cable for damage, if necessary replace cable.
- Shift selector lever into "P" position.
- Selector lever mechanism and selector lever cable must move freely, if necessary replace selector lever cable or service selector lever mechanism.
- Press on selector lever cable.

Adjusting
- Shift selector lever into "P" position.

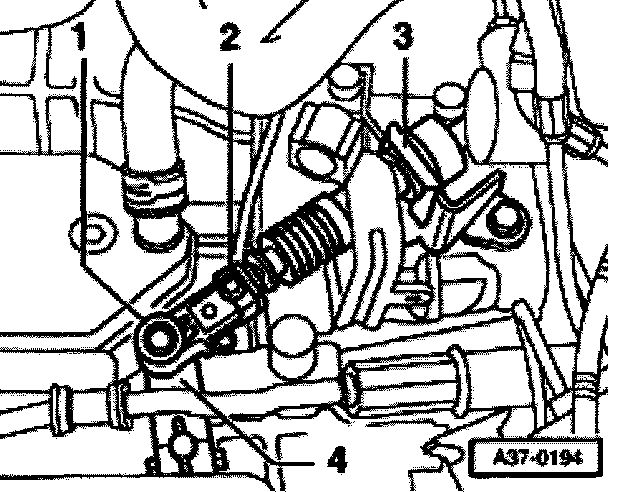

- Loosen bolt -2- at selector lever cable front ball mounting -1-.
- Bring selector shaft lever in position "P" on transmission. Locking lever must engage in park lock wheel, both front wheels are blocked (cannot be turned together in same direction).





- Tighten bolt -2- (8 Nm).
- Replace circlip -3- if it has been removed.
