Home >> Volkswagen >> 2001 >> Golf GLS (1J1) L4-1.8L Turbo (AWW) >> Repair and Diagnosis >> Diagrams >> Grounds >> 12 - Ground Connection

12 - Ground Connection

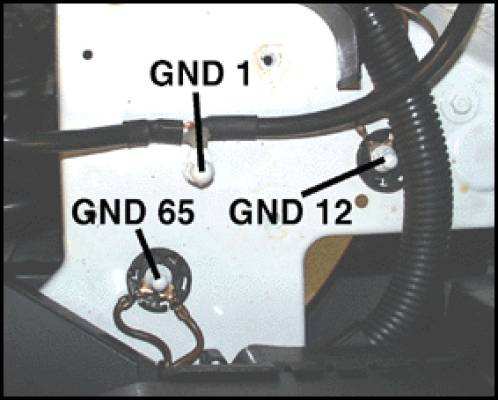

12 Ground Connection

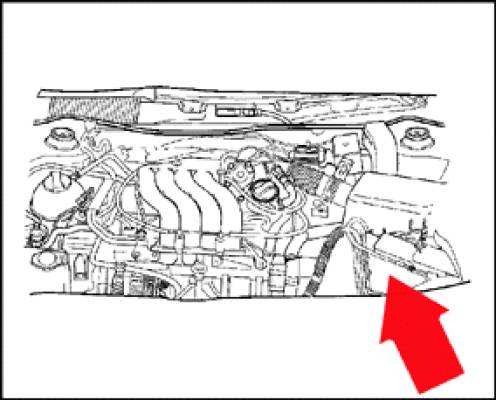

- engine compartment, left side, below battery tray

tightening torque: 9 Nm ± 1 Nm
