Front Suspension Strut, Servicing

Special tools
^ T10001 Special tools for struts/shock absorbers
^ VAG 1752/1 Suspension strut clamp
^ 3186 Socket wrench 21 mm AF
^ VAG 1752/4 Spring retainer
^ 3424 Spreader tool

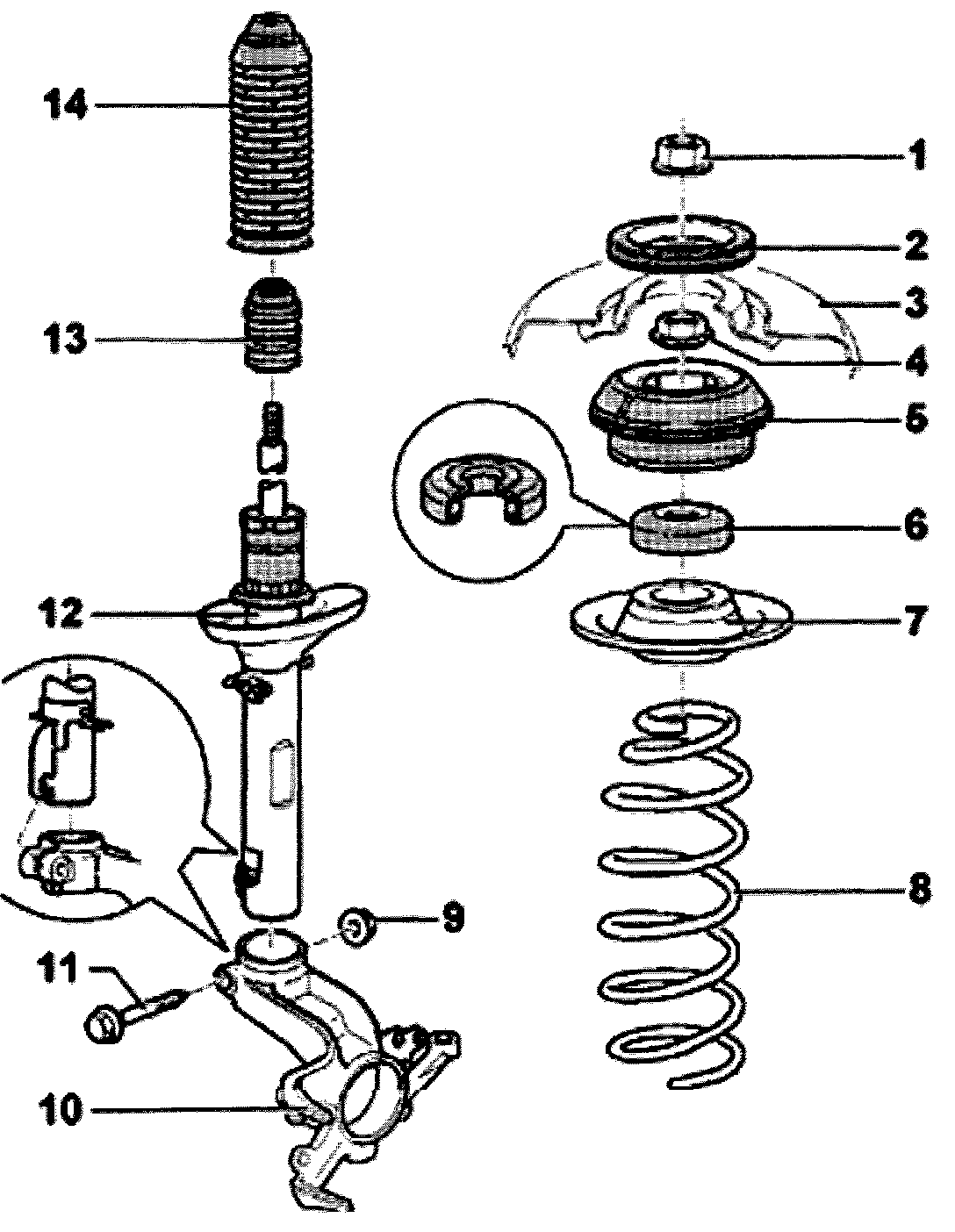

1. Self-locking nut
^ 60 Nm (44 ft. lbs.)
^ Always replace
2. Stop
3. Suspension strut turret
4. Nut
^ 60 Nm (44 ft. lbs.)
5. Suspension strut mount
6. Axial ball bearing
7. Spring plate
^ Only on vehicles with heavy duty suspension (P/N 1GB)
^ This P/N if relevant is entered on vehicle data label in luggage compartment or Service booklet
8. Coil spring
^ Observe color code
^ Outer surface of spring must not be damaged
9. Self-locking nut
^ 60 Nm (44 ft. lbs.) & turn 90° further
^ Never turn less than 90°
^ Always replace
^ Turning angle tolerance 90° to 120°
10. Wheel bearing housing
11. Bolt
^ Always replace
12. Shock absorber
^ Can be replaced individually
^ Checking shock absorber for leaks and noises
^ Disposal -follow environmental codes
13. Buffer stop
14. Protective sleeve
