Tie Rod: Service and Repair

Tie rod, removing and installing

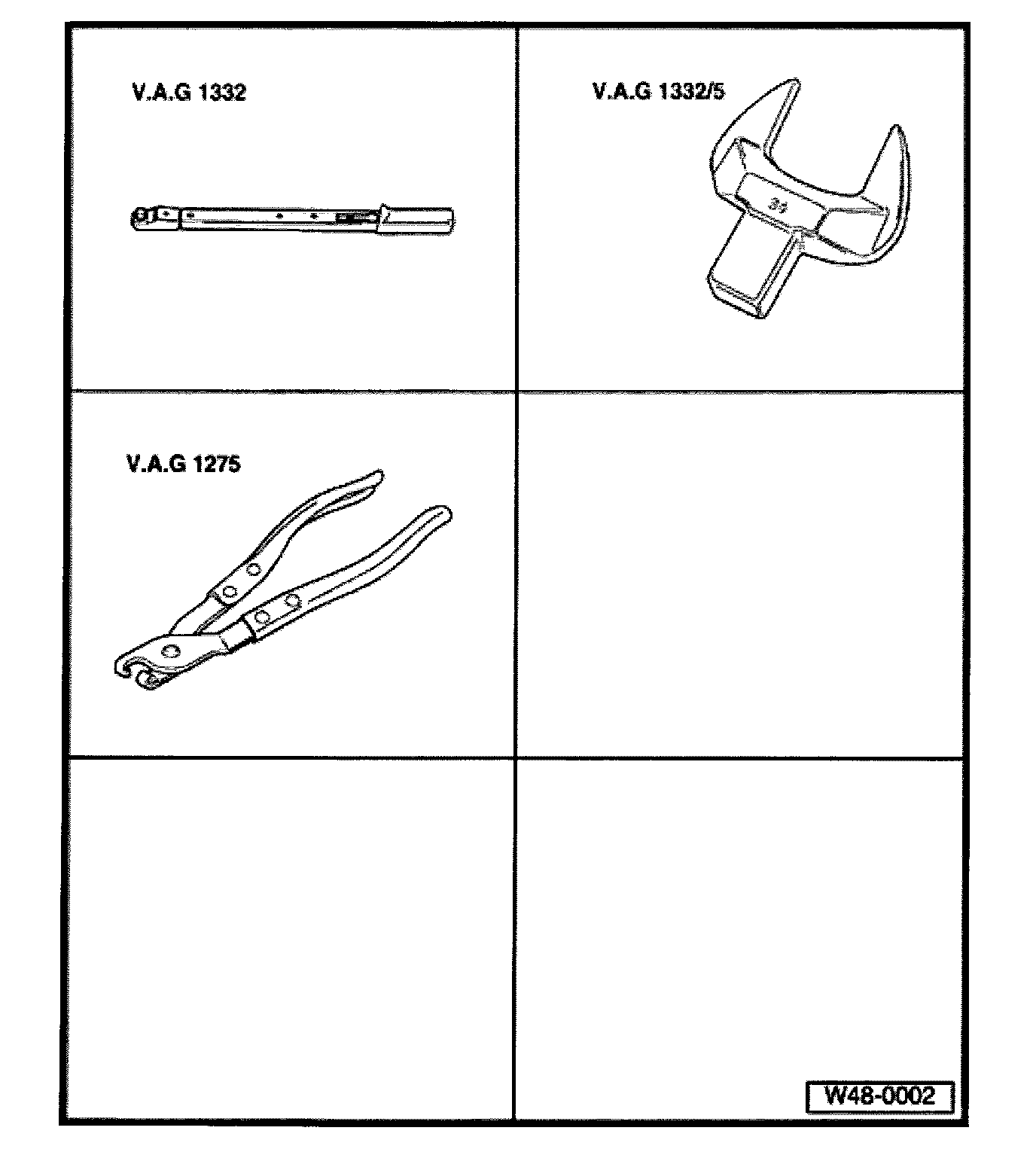

Special tools and equipment
^ VAG 1332 Torque wrench
^ VAG 1332/5 Open jaw insert, 34 mm (1.34 in.) AF
^ VAG 1275 Pliers

Removing

NOTE: Tie rods can only be removed/installed with steering gear removed.

- Seal line connections on power steering gear, if not already done.
- Clean steering gear around boot.
- Open clamps and push boot back.





- Clamp steering gear in vice and remove tie rod.

Installing
Install in reverse sequence.
Tightening torque:

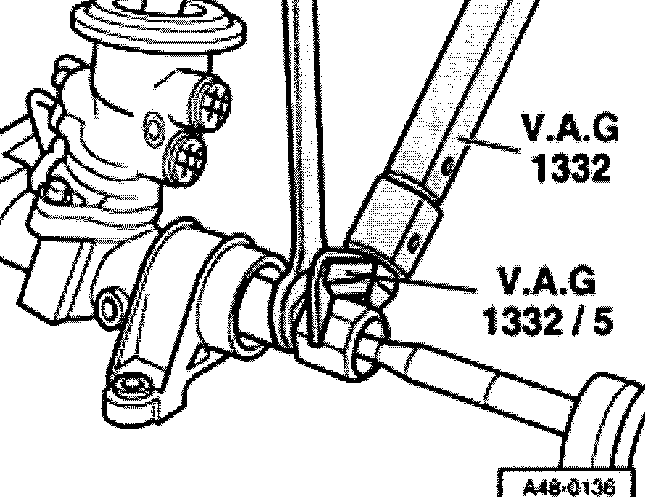

Tie rod to power steering gear 75 Nm (55 ft. lbs.)

Installing boot
- Check boot for wear (cuts, cracks) and ensure sealing surfaces are clean.





- Install boot, but first turn tie rod so tie rod end is in installed position.

NOTE: Only use genuine clamps.

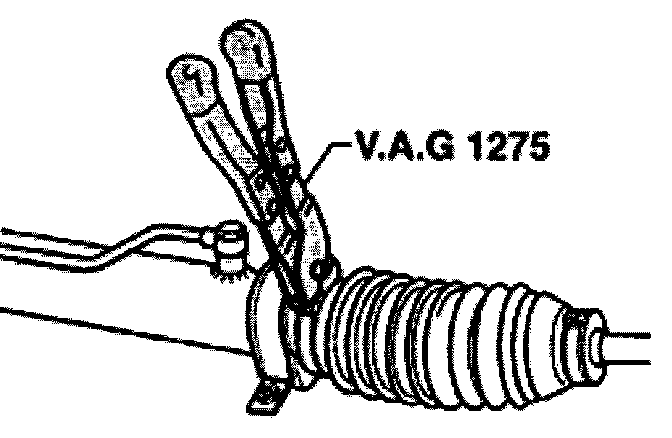

- Tension clamp with pliers VAG 1275.
- Install power steering gear.
