Steering Gear: Adjustments

Steering gear, adjusting

NOTE: Two mechanics required. Adjust with engine turned off.

- Raise vehicle on hoist and with wheels straight-ahead.
- Turning steering wheel back and forth (30 from center) a knocking noise will be heard if play is excessive.

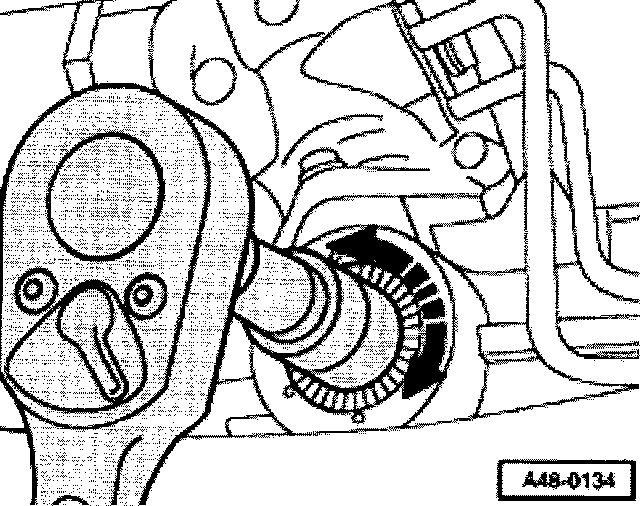

- Second mechanic carefully turns adjustment screw in until knocking noise can no longer be heard from inside vehicle.
- Perform road test to ensure steering returns to center without sticking.





- Secure lock nut with a punch mark (arrow).
