Cables, Installing and Adjusting Overview

Cables, Installing And Adjusting






NOTE:

- Cable sleeve ends are color coded.
- Always check cables before installing, replace binding or damaged cables.
- Attach cables to remove controls first and then attach cables to levers.
- All air flaps must audibly move onto end stops when turning controls.

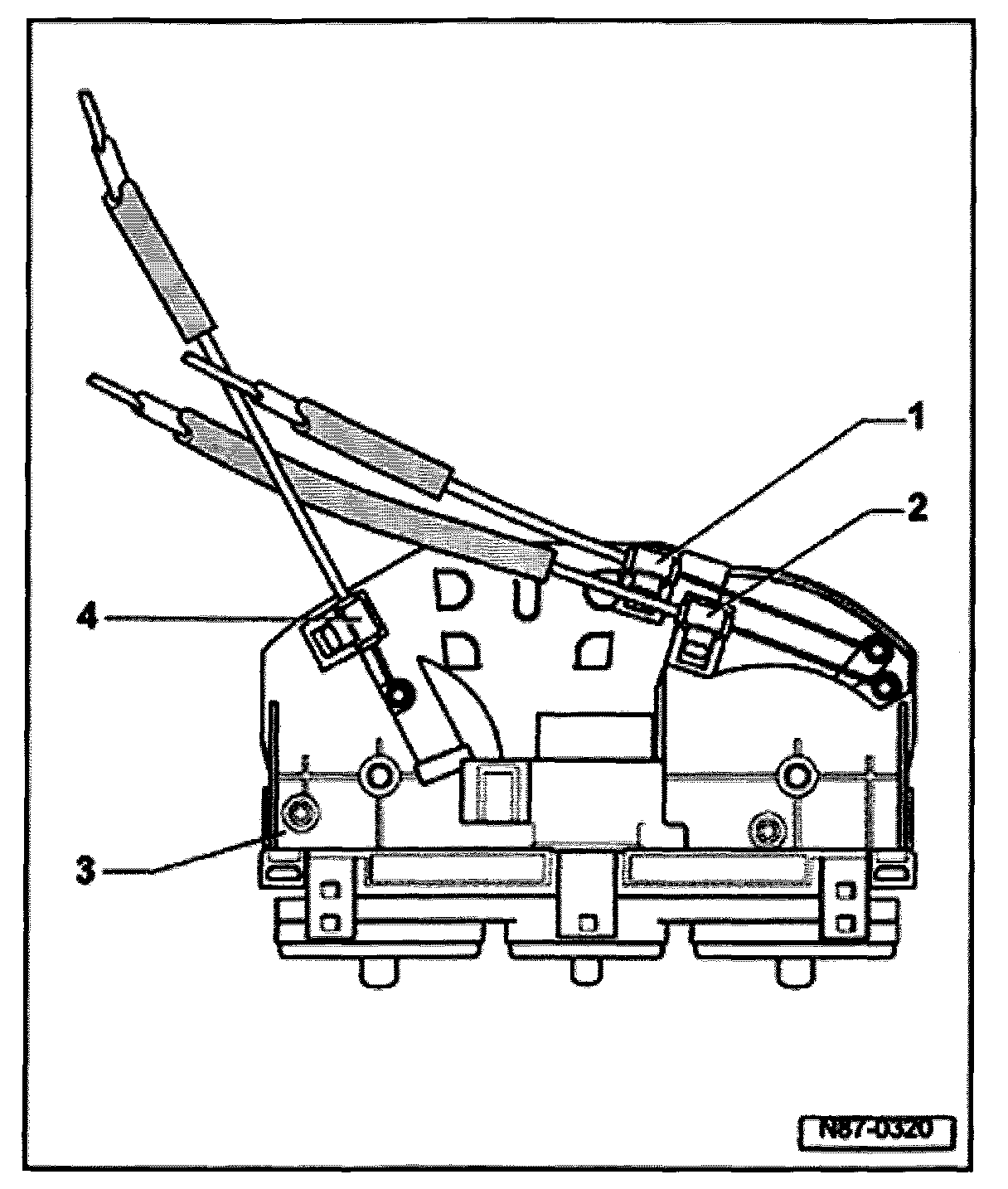

1 - Central flap cable
- From air distribution rotary control to central flap
- Cable sleeve marking: yellow
2 - Footwell / defroster - flap cable
- From air distribution rotary control to footwell/defrost flap
- Cable sleeve marking: green
3 - Heating and ventilation controls
4 - Temperature flap cable
- From temperature rotary control to temperature flap
- Cable sleeve marking: beige
