Removing and Installing

Special tools and equipment required





^ 3094 Hose clamps or equivalent

Removing
^ Note or request radio code on vehicles with coded radio if necessary.
^ Disconnect battery.

Vehicles with manual transmission
^ Clamp clutch master cylinder supply hose with special tool 3094 or equivalent.
^ Remove clutch master cylinder supply hose from reservoir.

All vehicles
^ Remove ABS control module and hydraulic unit.
^ Disconnect vacuum hose from brake booster.

Vehicles with automatic transmission

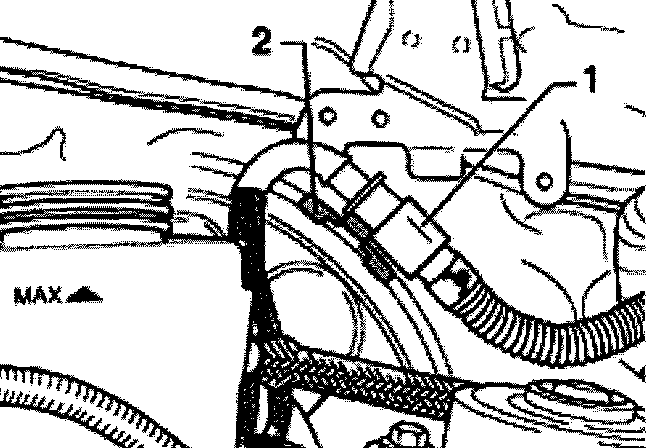

^ Remove connector -1- from retainer -2-.
^ Separate connector -1-.

All vehicles





^ Remove trim below instrument panel.
^ Remove bolts -1-.
^ Remove cover -A-.





^ Remove connecting plate between clutch and brake pedals on vehicles with a manual transmission.
^ Remove brake light switch -1-.
^ Separate brake pedal from brake booster.
^ Guide brake booster with brake master cylinder out forward and remove.

Installing
Install brake booster in reverse order of removal.
^ Adjust brake light switch.
^ After installing, bleed brakes
