Parking Brake Lever: Service and Repair

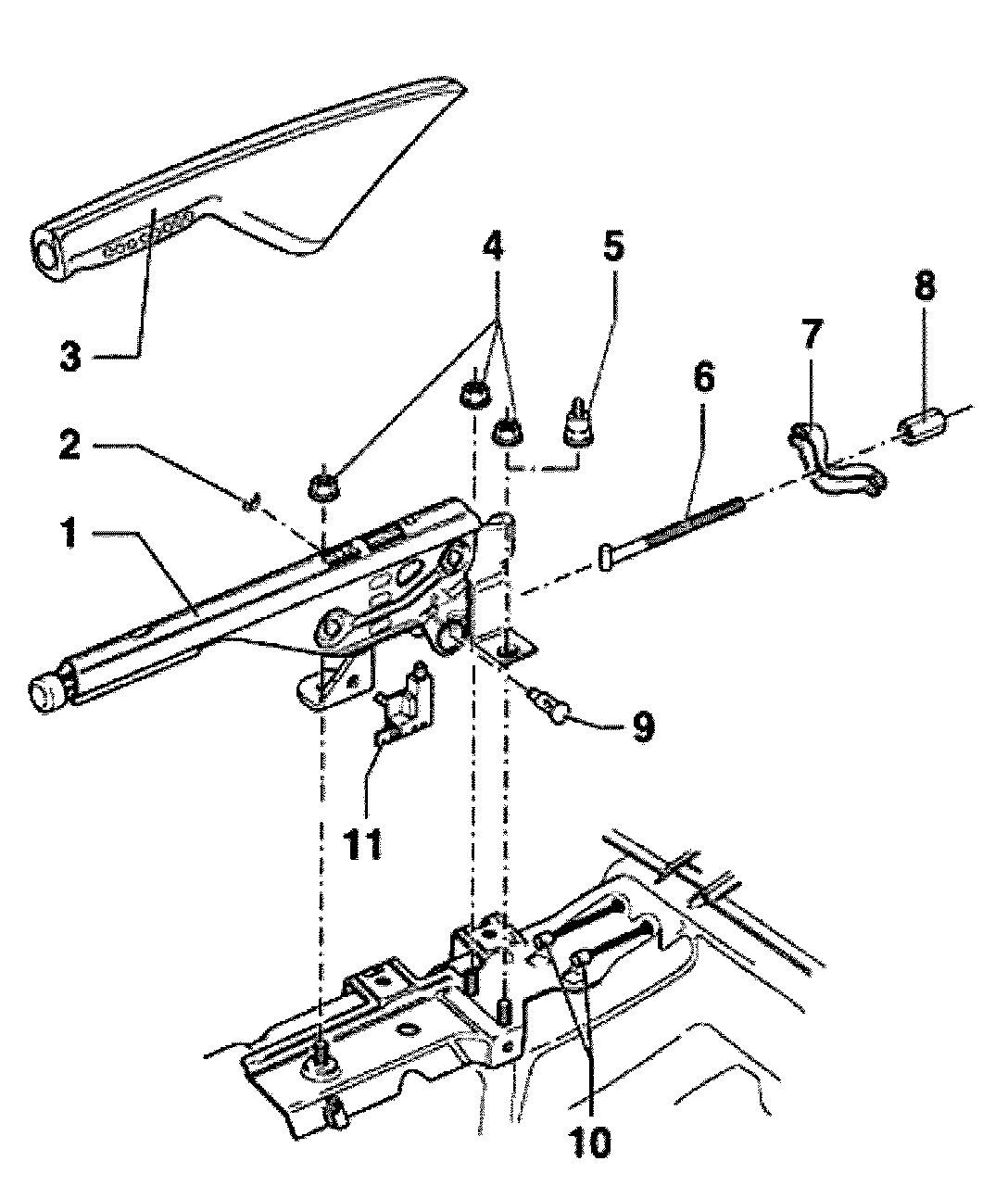

1 Parking brake lever
^ Before removing take out center console
2 Circlip
3 Parking brake lever trim
^ Pull off toward front
^ Use a screwdriver to release strap under lever
4 Hex nut, 25 Nm (18 ft. lbs.)
5 Adapter
^ For vehicles with center armrest
6 Pull rod
7 Compensator
8 Adjusting nut
^ Adjusting parking brake
9 Fulcrum pin
^ Holds pull rod -6- in parking brake
10 Parking brake cables
^ Removing and installing
11 Parking brake warning light switch
