Wheel Housing Trim

Wheel Housing Trim, Removing And Installing (Golf)

NOTE: Removal and installation is described for right side of vehicle. same instructions apply for removal and installation for left-hand side.

Removing
- Fold seat cushion and backrest forward.

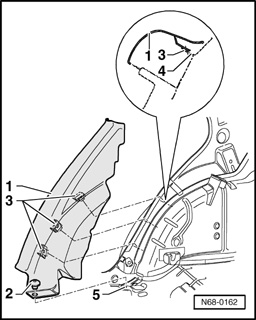

- Remove press button - 2 - from stud - 5 -.
- Remove trim - 1 - from body flange - 4 - with clips - 3 -.

Installing
- Installation is reverse of removal.
