Rear Bumper Cover Trim

Rear Lock Carrier Trim (Golf), Removing And Installing







Removing

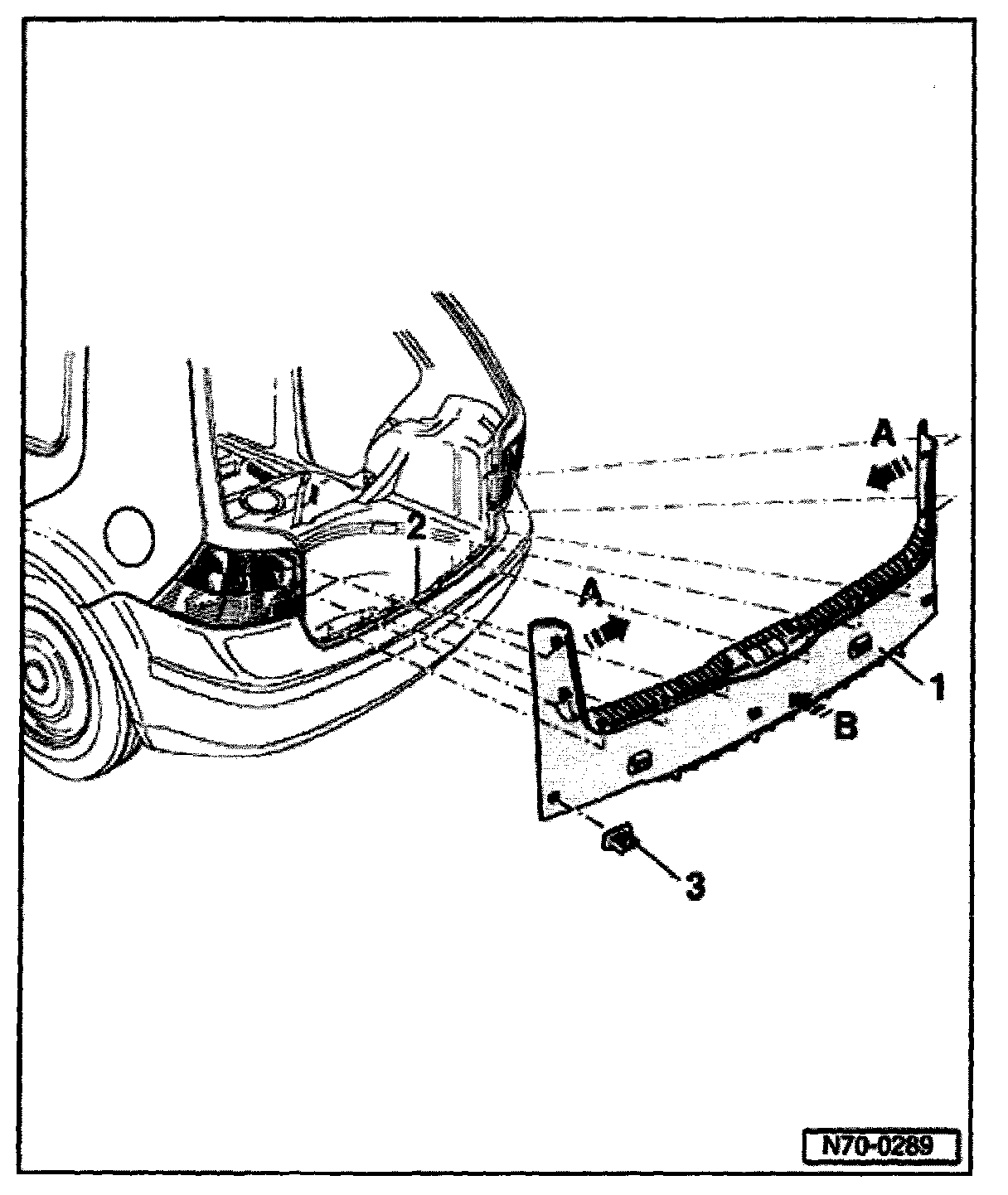

- Release lock carrier trim -1- from cross panel -2- first at top -arrow A- and then at bottom -arrow B-.
- Pull lock carrier trim -1- upwards off cross panel.

Installing
Install in reverse order of removal.


NOTE: Check clips -3- before assembling and replace as necessary.
