High-Range Speaker (Domed Tweeter) In Front Doors, Removing

High-Range Speaker (Domed tweeter) In Front Doors, Removing

The high-range speaker is integrated into the forward window trim (by the outside mirror mounting) on both front doors. The trim and speaker are constructed as a single unit and cannot be separated.

Removing

- Remove front door panel
- Disconnect electrical harness connection to speaker.

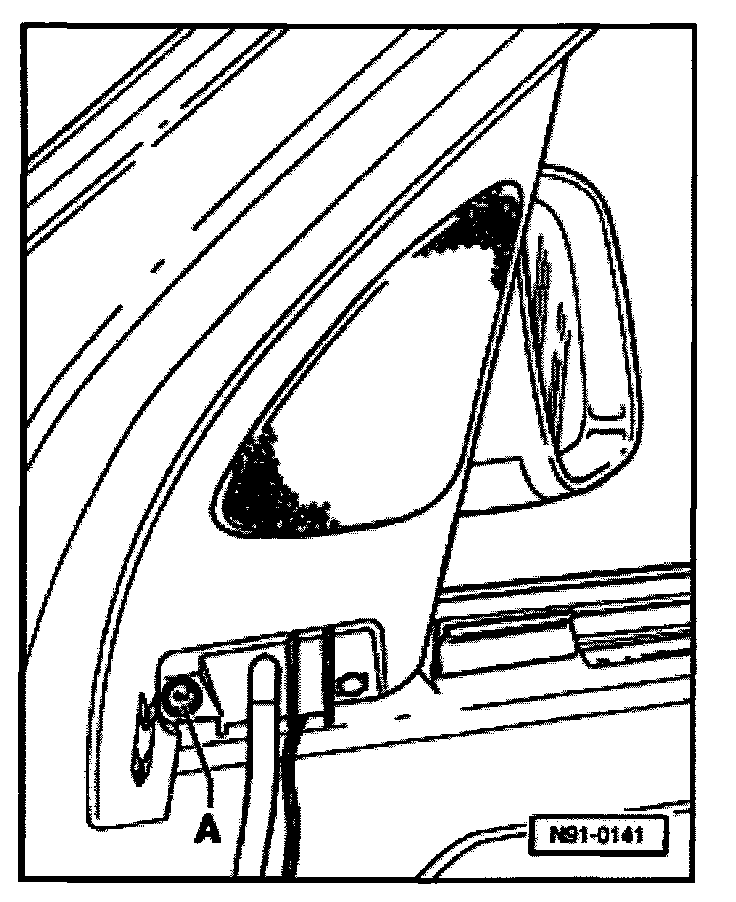

- Remove screw -A-
- Carefully push trim upward and remove trim/speaker.


CAUTION!
To avoid damage, do not pull or pry out window trim. Only push upwards to disengage the inner locating tab.
