Wiper Blade
>>
Adjustments
>>
Rear Wiper(s) Park Position
Rear Wiper(s) Park Position
-

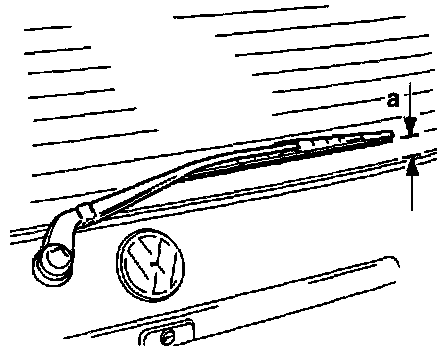

Run
wiper motor
to stop.
-
Adjust end of
wiper arm
to position -a-.
a =
25 mm (1 in.)
