Cabrio GLS (1V7) L4-2.0L (ABA)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Locations
>>
Washer System Hose Connections

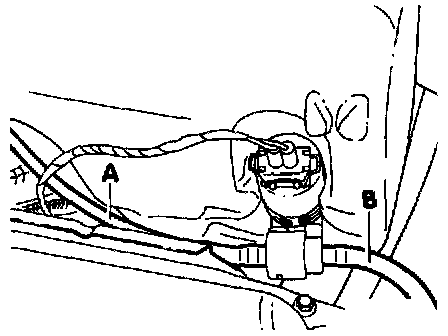

Washer System Hose Connections
A
-
Hose to windshield washer system.
B
-
Hose to rear window washer system.
